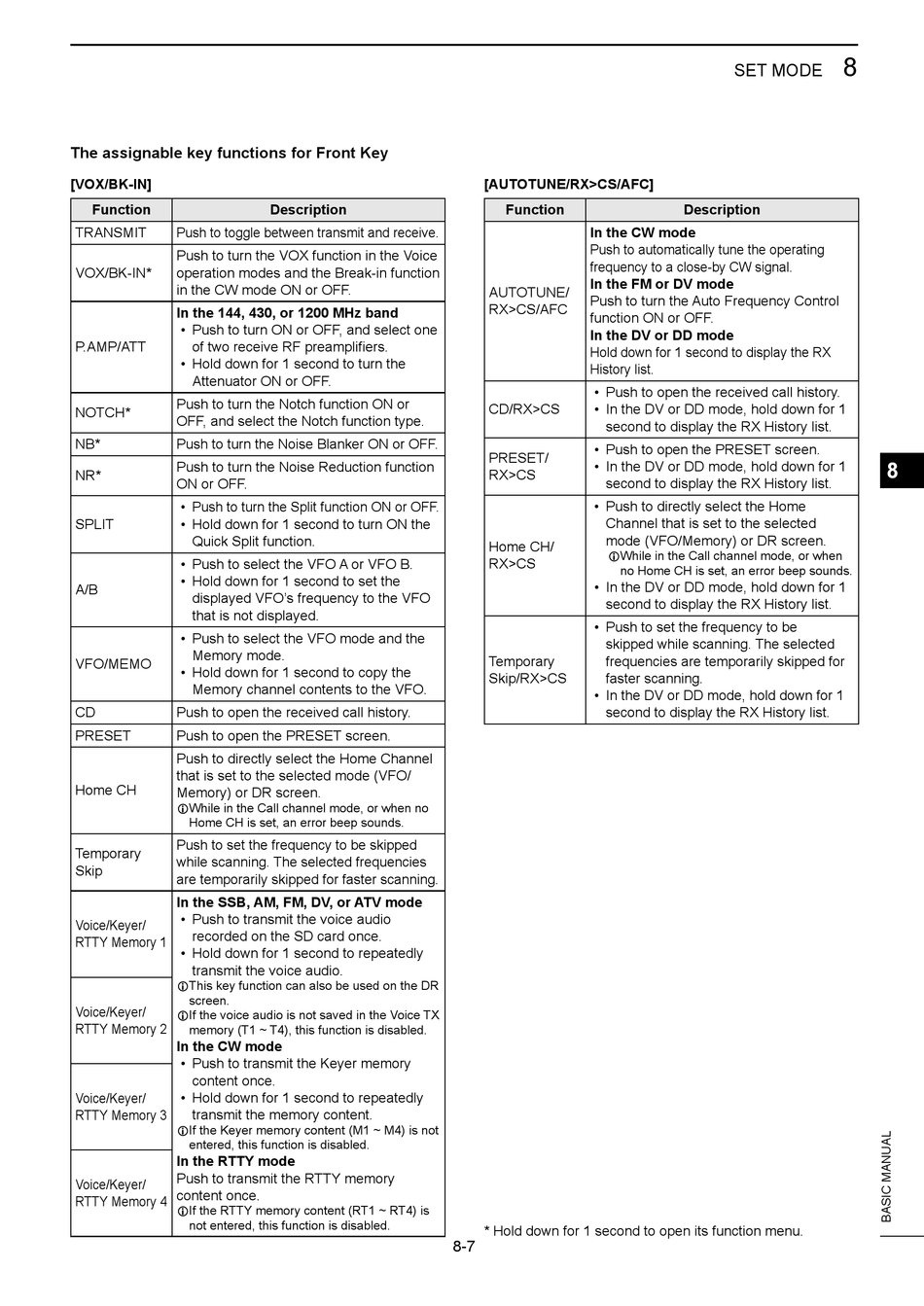

The assignable key functions for Front Key
[VOX/BK-IN]
Function
TRANSMIT
Push to toggle between transmit and receive.
Push to turn the VOX function in the Voice
VOX/BK-IN*
operation modes and the Break-in function
in the CW mode ON or OFF.
In the 144, 430, or 1200 MHz band
• Push to turn ON or OFF, and select one
P.AMP/ATT
of two receive RF preamplifiers.
• Hold down for 1 second to turn the
Attenuator ON or OFF.
Push to turn the Notch function ON or
NOTCH*
OFF, and select the Notch function type.
NB*
Push to turn the Noise Blanker ON or OFF.
Push to turn the Noise Reduction function
NR*
ON or OFF.
• Push to turn the Split function ON or OFF.
SPLIT
• Hold down for 1 second to turn ON the
Quick Split function.
• Push to select the VFO A or VFO B.
• Hold down for 1 second to set the
A/B
displayed VFO's frequency to the VFO
that is not displayed.
• Push to select the VFO mode and the
Memory mode.
VFO/MEMO
• Hold down for 1 second to copy the
Memory channel contents to the VFO.
CD
Push to open the received call history.
PRESET
Push to open the PRESET screen.
Push to directly select the Home Channel
that is set to the selected mode (VFO/
Home CH
Memory) or DR screen.
LWhile in the Call channel mode, or when no
Home CH is set, an error beep sounds.
Push to set the frequency to be skipped
Temporary
while scanning. The selected frequencies
Skip
are temporarily skipped for faster scanning.
In the SSB, AM, FM, DV, or ATV mode
• Push to transmit the voice audio
Voice/Keyer/
recorded on the SD card once.
RTTY Memory 1
• Hold down for 1 second to repeatedly
transmit the voice audio.
LThis key function can also be used on the DR
screen.
Voice/Keyer/
LIf the voice audio is not saved in the Voice TX
RTTY Memory 2
memory (T1 ~ T4), this function is disabled.
In the CW mode
• Push to transmit the Keyer memory
content once.
Voice/Keyer/
• Hold down for 1 second to repeatedly
transmit the memory content.
RTTY Memory 3
LIf the Keyer memory content (M1 ~ M4) is not
entered, this function is disabled.
In the RTTY mode
Push to transmit the RTTY memory
Voice/Keyer/
content once.
RTTY Memory 4
LIf the RTTY memory content (RT1 ~ RT4) is
not entered, this function is disabled.
Description
[AUTOTUNE/RX>CS/AFC]
Function
In the CW mode
Push to automatically tune the operating
frequency to a close-by CW signal.
In the FM or DV mode
AUTOTUNE/
Push to turn the Auto Frequency Control
RX>CS/AFC
function ON or OFF.
In the DV or DD mode
Hold down for 1 second to display the RX
History list.
• Push to open the received call history.
CD/RX>CS
• In the DV or DD mode, hold down for 1
second to display the RX History list.
• Push to open the PRESET screen.
PRESET/
• In the DV or DD mode, hold down for 1
RX>CS
second to display the RX History list.
• Push to directly select the Home
Channel that is set to the selected
mode (VFO/Memory) or DR screen.
Home CH/
LWhile in the Call channel mode, or when
RX>CS
no Home CH is set, an error beep sounds.
• In the DV or DD mode, hold down for 1
second to display the RX History list.
• Push to set the frequency to be
skipped while scanning. The selected
Temporary
frequencies are temporarily skipped for
faster scanning.
Skip/RX>CS
• In the DV or DD mode, hold down for 1
second to display the RX History list.
* Hold down for 1 second to open its function menu.
8-7
