IMPORTANT To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance. SAFETY WARNINGS Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information on safe installation, use and care of the appliance.
Page 4
Do not flambé or grill with an open flame directly under the extractor hood. Flames could be drawn up into the hood by the suction and the grease filters may catch fire. Monitor cooking continuously as overheated oil increases the risk of self-ignition.

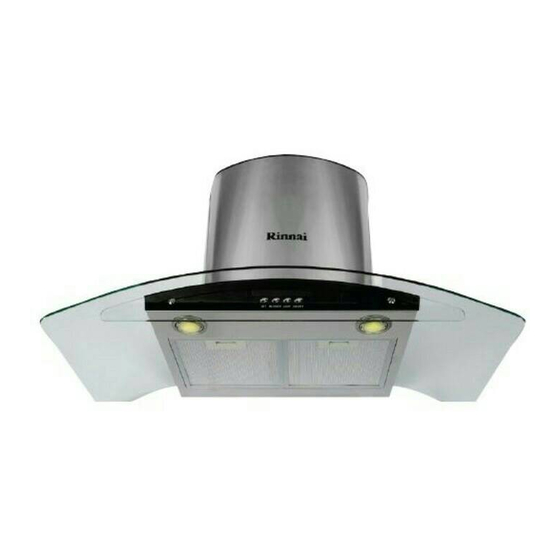

SPECIFICATIONS Model RH-C107-GC RH-C109-GC Voltage 220V - 240V / 50Hz Power of Motor 220W Power of Lamps 2 x 20W Cable Length 1.5m Appliance Dimension (W x D x H): 70 cm model 698 x 460 x 479-854mm 90cm model...
INSTALLATION This appliance can be installed in ducted or recirculation Wall mounting (Fig. 7 & 8) Do ensure that the appliance is mounted on a solid mode. surface which could withstand the appliance’s weight. Ducted mode (Fig. 4) Draw a vertical line at the center of the wall. ...
Aligning the hood body (if necessary) (Fig. 9) Installation must be performed by qualified personnel Before attaching hood body to wall, adjust the 2(two) screws located on the hood body mounting only. The manufacturer declines all responsibility for points. improper installation and does not accept responsibility ...
Replace a new set of light assembly. Note: For purchase of spare part, please check with your local Rinnai Rinnai Customer Care Centre for assistance. Reverse the procedure for refitting. Fig. 10 Fig.
Replace the damaged lamps Lamps are loose Tighten the lamps If problem persists after the above checks, please contact Rinnai Customer Care Centre for assistance. Please quote the model number of your appliance as shown on the rating plate attached to your equipment (Fig. 13).
Page 12
规格 型号 RH-C107-GC RH-C109-GC 电压 220V - 240V / 50Hz 马达功率 220W 灯泡功率 2 x 20W 电源线 1.5m 器具尺寸 (W x D x H): 70 cm model 698 x 460 x 479-854mm 90cm model 898 x 460 x 479-854mm 注意: 生产商拥有改造器具而不预先对消费者进...
Page 17
DAFTAR ISI Peringatan Keselamatan -------------------------------------------------------------------------------------------------------------------------------15 Spesifikasi & Komponen--------------------------------------------------------------------------------------------------------------------------------17 Pemasangan-----------------------------------------------------------------------------------------------------------------------------------------------18 Pengoperasian--------------------------------------------------------------------------------------------------------------------------------------------19 Pemeliharaan & Perawatan---------------------------------------------------------------------------------------------------------------------------20 Pemecahan Masalah------------------------------------------------------------------------------------------------------------------------------------21 PENTING Untuk meregristrasi garansi produk anda, silahkan menyalin nomer seri pada stiker yang ada pada kemasan kartu garansi anda. Silahkan hubungi layanan purna jual dikota anda jika anda memerlukan bantuan lebih lanjut. PERINGATAN KESELAMATAN Silahkan anda membaca panduan manual ini sebelum anda menggunakannya.
Page 18
Jangan memasak atau memanggang langsung dibawah tudung hisap. Api bisa menyebabkan tudung terbakar karena terhisap dan mungkin filter bisa terkena api. Selalu pantau saat memasak secara terus menerus karena jika terlalu panas bisa meningkatkan resiko kebakaran. Jangan mengoperasikan tudung hisap tanpa grease filter.
Page 19
SPESIFIKASI Model RH-C107-GC RH-C109-GC Tegangan 220V - 240V / 50Hz Daya Motor 220W Daya Lampu 2 x 20W Panjang kabel 1.5m Dimensi alat (W x D x H): 70 cm model 698 x 460 x 479-854mm 90cm model 898 x 460 x 479-854mm...
Page 20
PEMASANGAN Peralatan ini bisa dipasang dengan menggunakan mode Pemasangan pada dinding cabinet (Gam. 7 & 8) ventilasi dan juga mode recycle. Pastikan alat menempel pada lapisan dinding yang keras sehingga bias menopang berat alat ini. Ducted mode (Mode ventilasi ) (Gam. 4) Buat garis vertikal ditengah dinding.
