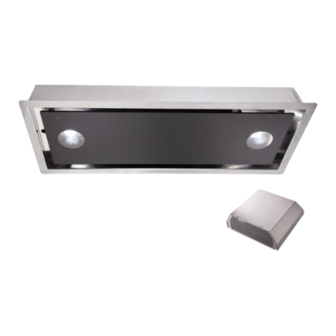

- Page 1 Operation / Installation Manual Mini Ceiling Hood RH-G806-SSVE-R RH-G806-SSVE RH-G808-SSVE-R RH-G808-SSVE RH-G806-SSV-R RH-G808-SSV-R RH-G806-SSV RH-G808-SSV Rinnai Corporation...
- Page 2 TABLE OF CONTENTS TABLE OF CONTENTS English Page 1 - 7 Version: 2015 01...
-
Page 3: Table Of Contents
IMPORTANT To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance. SAFETY WARNINGS Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information on safe installation, use and care of the appliance. - Page 4 • Do not flambé or grill with an open flame directly under the extractor hood. Flames could be drawn up into the hood by the suction and the grease filters may catch fire. • Monitor cooking continuously as overheated oil increases the risk of self-ignition.
-
Page 5: Specifications & Components
SPECIFICATIONS RH-G806-SSVE-R RH-G806-SSVE RH-G808-SSVE-R RH-G808-SSVE Model RH-G806-SSV-R RH-G806-SSV RH-G808-SSV-R RH-G808-SSV Voltage 220V - 240V / 50Hz Power of Motor 380W LED Lights 2 x 3W Cable Length 1.5m Appliance Dimension (W x D x H): 60cm model 526 x 260 x 367mm... -
Page 6: Installation
INSTALLATION Before drilling any holes, check the area to be drilled to 4) Tighten the screw on the 2 sides of the be clear of any electrical cables or pipes…etc. installation brackets. Note: Whenever possible, protect the top of the hob with cardboard or similar materials to prevent breakage during installation 1) For both internal and external motor mode, please... -
Page 7: Operation
OPERATION The hood with 4 speed remote control and 2 lamps: LED light Note: Before selecting intended operation, please touch On/Off button to switch on the hood. All the buttons will display “red” color when selected. To switch off the hood, press and hold the On/Off button for 3 seconds and the hood will be turned off. -
Page 8: Maintenance And Care
Touch slider: Gently slide across to the right to increase blower speed, and across to the left to lower blower speed MAINTENANCE AND CARE Disconnect the power supply cord before carrying out any cleaning or maintenance activities. It is important to clean and/or replace the filters at appropriate intervals as grease deposits build-up increases the risk of fire. -
Page 9: Troubleshoot
5 mins. Listen for “click” sound. If there’s no sound , please contact Rinnai If problem persists after the above checks, please contact Rinnai Customer Care Centre for assistance. Please quote the model number of your appliance as shown on the rating plate attached to your equipment (Fig. - Page 10 Tel 电话 : (86) 20 3821 7976 Email 邮箱 : grrjdq@gzrinnai.com.cn URL 网址 : www.gzrinnai.com.cn Indonesia Singapore Customer Care of PT. Rinnai Indonesia Rinnai Holdings (Pacific) Pte Ltd Jl. Raya Pejuangan No.21, 47 Tannery Lane #05-01/02, Komp. Ruko Sastra Graha No.11 -13...
