Summary of Contents for Hyundai HSO20305

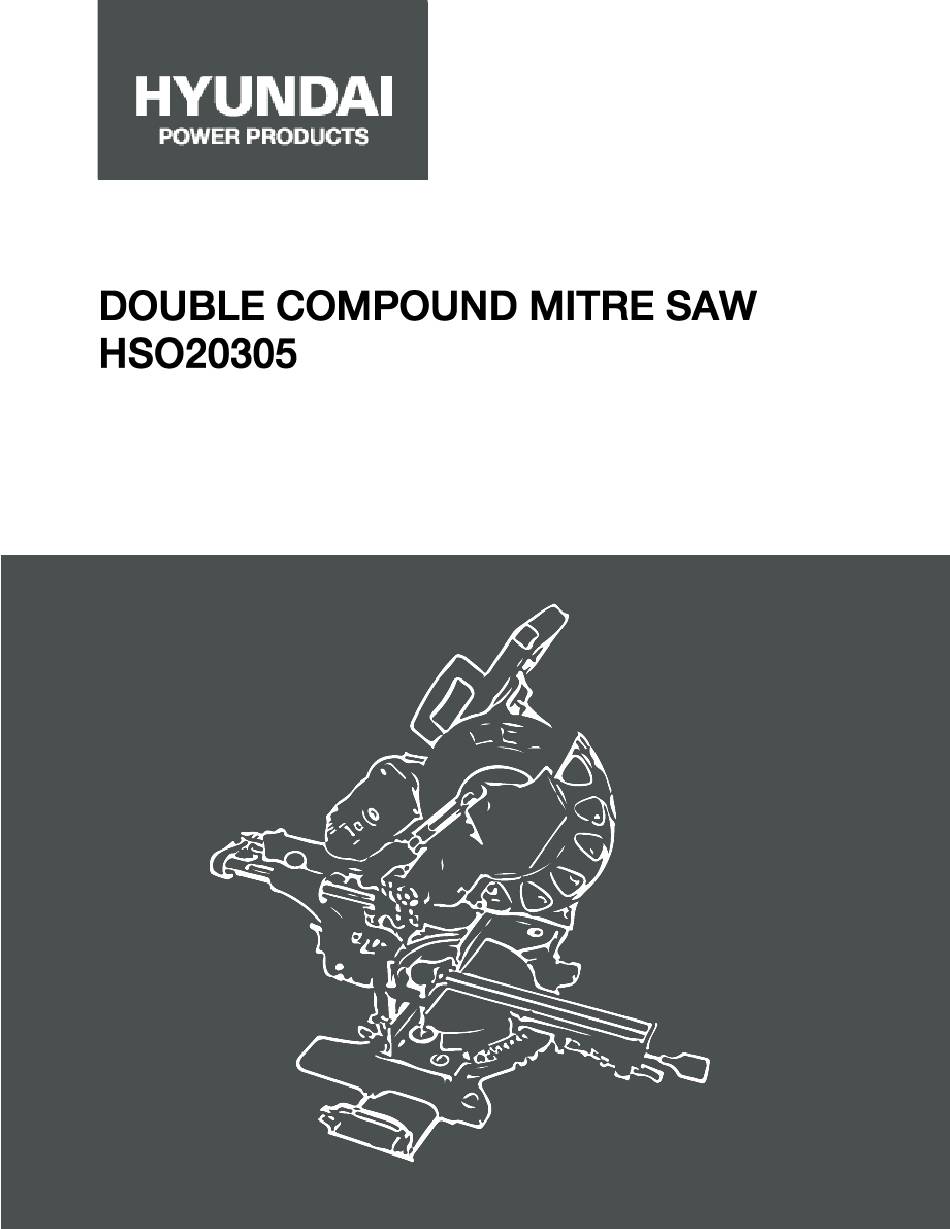

- Page 1 ORIGINALS INSTRUCTIONS...
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING: When using electric tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before operating this product and save these instructions. Safety operations Keep work area clean and clear ... - Page 3 Do not carry a plugged-in tool with a finger on the switch. Ensure switch is in OFF position when plugging in. Use outdoor extension leads When tool is used outdoors, use only extension cords intended for outdoor use and therefore marked. Stay alert ...
- Page 4 When you want to pause, turn off the power and wait for the saw to stop completely before leaving the work area. Periodically check that all fasteners, screws, bolts and nuts are properly tightened. Do not put materials or equipment above the saw to prevent the possibility of an unfortunate fall. Use the saw to cut parts that are insulated from electricity.
- Page 5 o The laser can not be pointed at a person's eye for more than 0.25s. o Always make sure that the laser beam is directed to a solid piece that does not have a reflective surface such as a piece of wood or a rough, matte surface. A glossy steel sheet or similar material is not suitable for use with the laser because a reflective surface can return the laser to the operator.
- Page 6 In accordance with essential applicable safety standards of European directives WARNING! DO NOT stare into beam! DO NOT aim the laser beam at people! 1 – Technical data : Model HSO20305 Mains voltage/ frequency 230 V - 50 Hz Power 2000W; S2 2min 2400W...
- Page 7 Sound power level LwA 106.2 dB(A) Uncertainty K: 3 dB(A) Vibration 1.778m/s , K=1.5m/s Max. Cutting depth at ： 0° - 90° 90 x 340 mm 45° - 90° 90 x 240 mm 0° - 45° left 48 x 340 mm 0°...
- Page 8 2. Composition of the machine *Non - contractual pictures and drawings WARNING! Unplug the machine before any intervention. 1 - Laser activation switch 13 - Pre-drilled frame for fixing on the workbench 2 - Machine activation switch 14 - 1 Locking screw of the machine 3 - Handle with switching on trigger 14 - 2 Protective Cover of the belt drive 4 - Top blade protection housing...
- Page 9 Wear safety glasses, hearing protection, a dust mask and protective gloves. 3 - Use This mitre saw should only be used for to cut rafters, baseboards, panelling, wooden floors, boards, or cutting pieces of aluminium, processed wood or similar materials. Caution, do not use the machine beyond the maximum capacity provided and do not cut branches, logs and any other material with presenting risks of ignition, explosion or release of pollutant or dangerous for the user or the environment...
- Page 10 Remove the saw from the packaging and check its condition. If the product does not seem correct, or if the items are broken or missing according to the description above, contact your dealer. CAUTION! A small anti - moisture bag may be found in the packaging. Do not leave it within reach of children and discard.
- Page 11 c) Unlocking the cutting arm: To turn the saw on, you should unlock the lower blade guard. Therefore, press the locking device (no.2) and then press the switch (no.1) to turn on the mitre saw. To stop the saw, release the trigger switch no.1. You should never stop the blade rotation by exerting side pressure on it.
- Page 12 f) Installation and change of the blade: An accessory should be changed when the machine is idle and disconnected. To install or change the blades, your mitre saw should be in raised position, - Remove the front screw from the housing of the blade bolt (4). - Lift the motor block blade and then the lower blade guard as high as possible (note: take care, the lower blade guard is equipped with a spring.)
- Page 13 h) Adjusting the mitre angle: Your saw allows performing mitre cutting from 0° to 48° both to the right and to the left. To adjust the table, loosen the locking handle of the table as shown in the diagram, move the table (C) until you get the desired angle by using the handle (A).
- Page 14 j) Use of the stop: Your mitre saw is equipped with a fixed part stop as well as removable stop, on the right and left side: they allow immobilizing the workpiece during the cutting operation and thus prevent it from moving. You should always push the workpiece against the latter, regardless of the type of cut to be performed.
- Page 15 The start-up after the adjustments and checks is carried out by pressing the trigger switch located on the main handle. Connect the machine to the 230V mains. You can stop the device by releasing the power switch located on the handle. You should never stop the blade rotation by exerting lateral pressure on it.
- Page 16 9. Release the trigger and wait until the blade stops spinning before removing it from the workpiece. 10. Raise gently the blade motor block to its highest position and release the lower blade guard locking device. WARNING!! Always place the workpiece flat on the table with one edge pressed firmly against the stop. If the board is bent, place the convex side against the stop and secure it.
- Page 17 - Rotate the table so that the indicator shows 0° on the scale tab. - Lock the table by blocking the locking lever. - Loosen the tilt locking knob and tilt the blade motor block to the left or right up to the desired angle. - The bias cutting angle can be set between 0°...
- Page 18 e - Positioning of mouldings flat on the table: In order to use this method to cut with precision crown mouldings for inner and external right - angled corners, lay the moulding with its broadest backside flat on the table, pressed against the stop. When setting up the bias and mitre angles and the tab for double mitre cuts, remember that the settings are interdependent: when you change an angle, the other is modified.
-
Page 19: Scope Of The Warranty
c. Troubleshooting: If the machine does not start, make sure that all electrical connections are properly made, check that the safety circuit breaker is switched on, make sure that in your electrical installation there are no blown fuses. If after these operations, the failure is attributable to the machine, it should be checked by a certified centre. Note: For any after - sales service, contact your dealer. - Page 20 Environment: Please observe the rules of collection, sorting and recycling of packaging and products at end of life (Packaging directive and WEEE). 11 - Solutions to common problems: PROBLEMS POSSIBLE CAUSES SOLUTIONS The motor does not start 1. Under voltage Check the connections and the 2.
-
Page 21: Ce Declaration Of Conformity
32, rue Aristide Bergès Z1 31270 Cugnaux - France Phone: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Declares that the machinery designated below: DOUBLE COMPOUND MITRE SAW HSO20305 Serial number:20190127686-20190127933 “ ” Complies with the provisions of the Directive Machinery...
