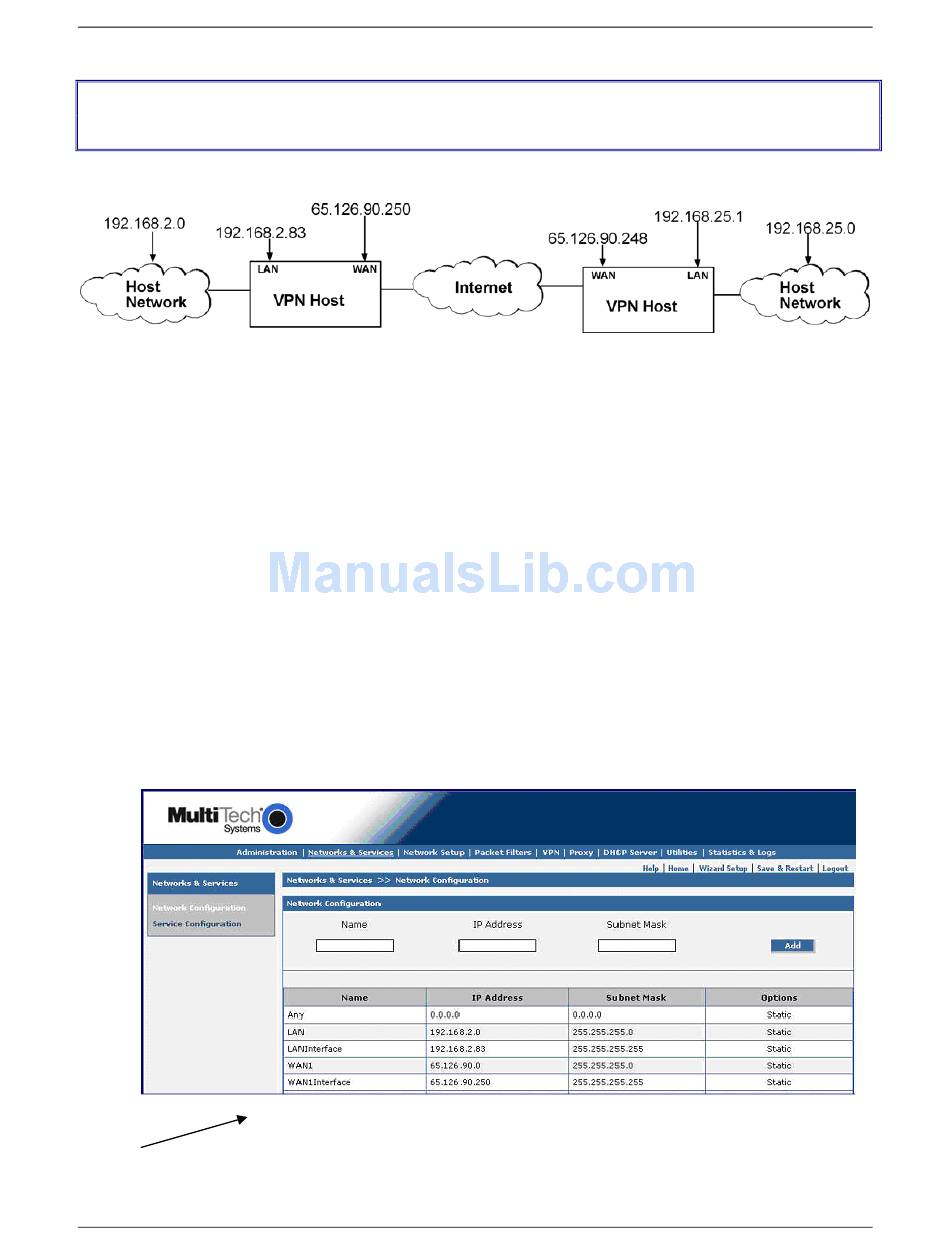

Example 2 – A Setup Using Two RouteFinders
Behind a Non-NAT Device
Side A
Note: Prerequisite Steps must be completed before you start this setup.
The Following Directions Apply to Side A of Example 2
Step 1 for Side A – Network Setup
1. Log in to your RF830 or RF820 and go to the Networks & Services screen.
2. Enter a Name for the remote WAN IP address. Example: Remote-WAN
3. Enter the remote WAN IP Address (Ex. 65.126.90.250) with a single Subnet Mask of
255.255.255.255
4. Click Add to add the network to the list
5. Enter a Name for the remote LAN IP Address. Example: Remote-LAN
6. Enter the remote LAN IP Address (Ex. 192.168.2.0) with a network Subnet Mask for the
255.255.255.0.
Note: Pictured below is an RF820 screen with the single WAN ports. The RF830 screen is
the same except for the addition of WAN2 and WAN2Interface Names.
Once the network configuration is complete, the information about that network displays at the
bottom of the screen.
Multi-Tech Systems, Inc. RF820/830 IPSec VPN Setup Examples – A Reference Guide
Remote-WAN 65.126.90.248
Remote-LAN 192.168.25.0
Chapter 1 – Non-NAT Setup Examples
Side B
255.255.255.255
255.255.255.0
Edit | Delete
Edit | Delete
