Note:

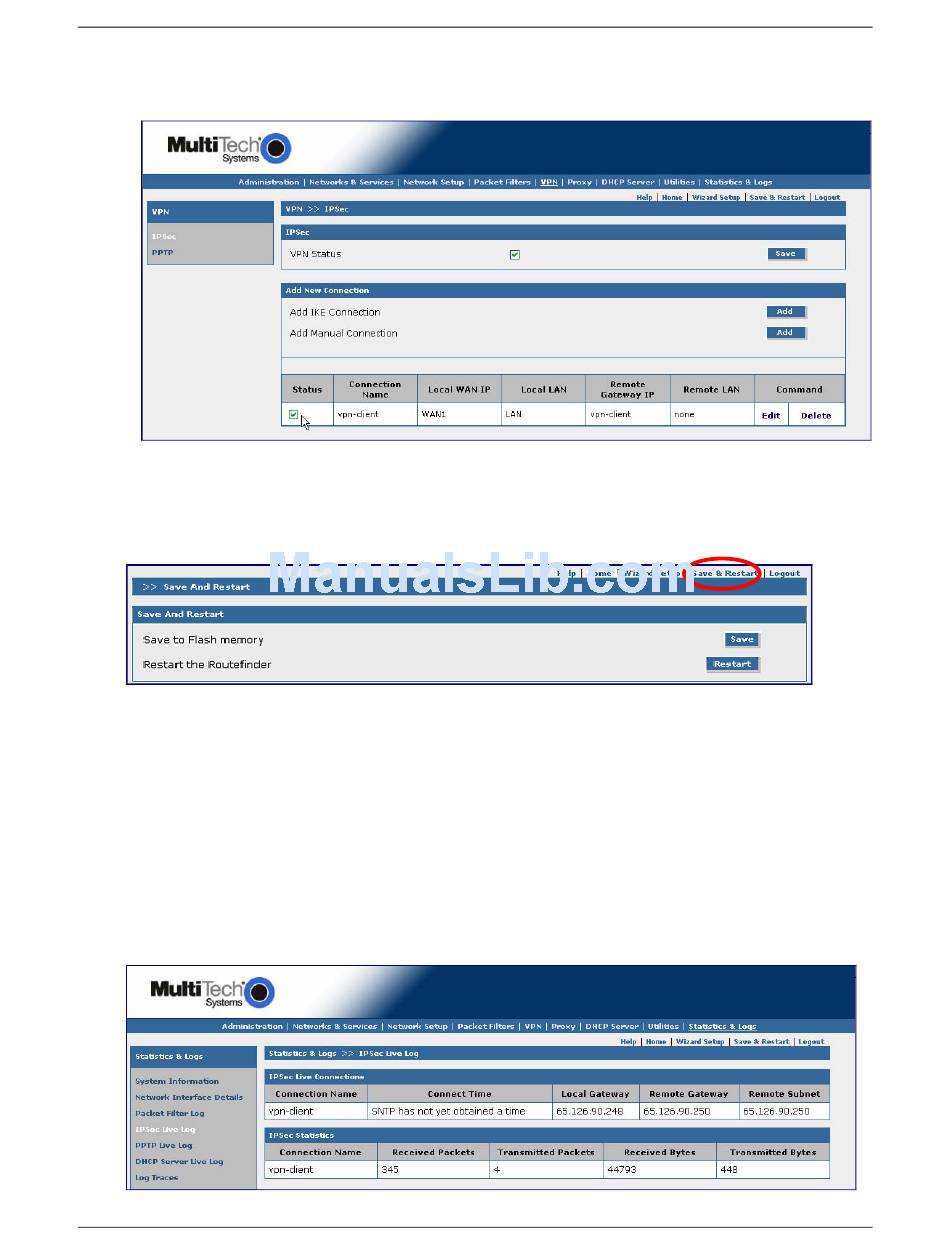

Make sure to check the Status box at the bottom of the screen on the left side to activate the
newly created tunnel.
Step 4 – Save and Restart
Click the Save & Restart button located just under the menu bar. The Save and Restart screen
displays.
Save to Flash Memory
If a connection is established, then the settings have been entered correctly and your basic
configuration is now complete. Now, you must save your settings to the Flash Memory; this saves
the current settings in the flash prom and prevents settings from getting lost at the next power up.
Restart
This is optional. You do not have to restart the RouteFinder after saving to the flash memory.
Step 5 – Checking the Tunnel
To see if the tunnel is up you can click on Statistics & Logs and go to the IPSec Live Log. You
will see whether or not the connection is up. You will also see information about the data, if any,
that is being sent across the tunnel.
