Olympus FV1200 User guide
Olympus FV1200 MPE Microscope User Guide

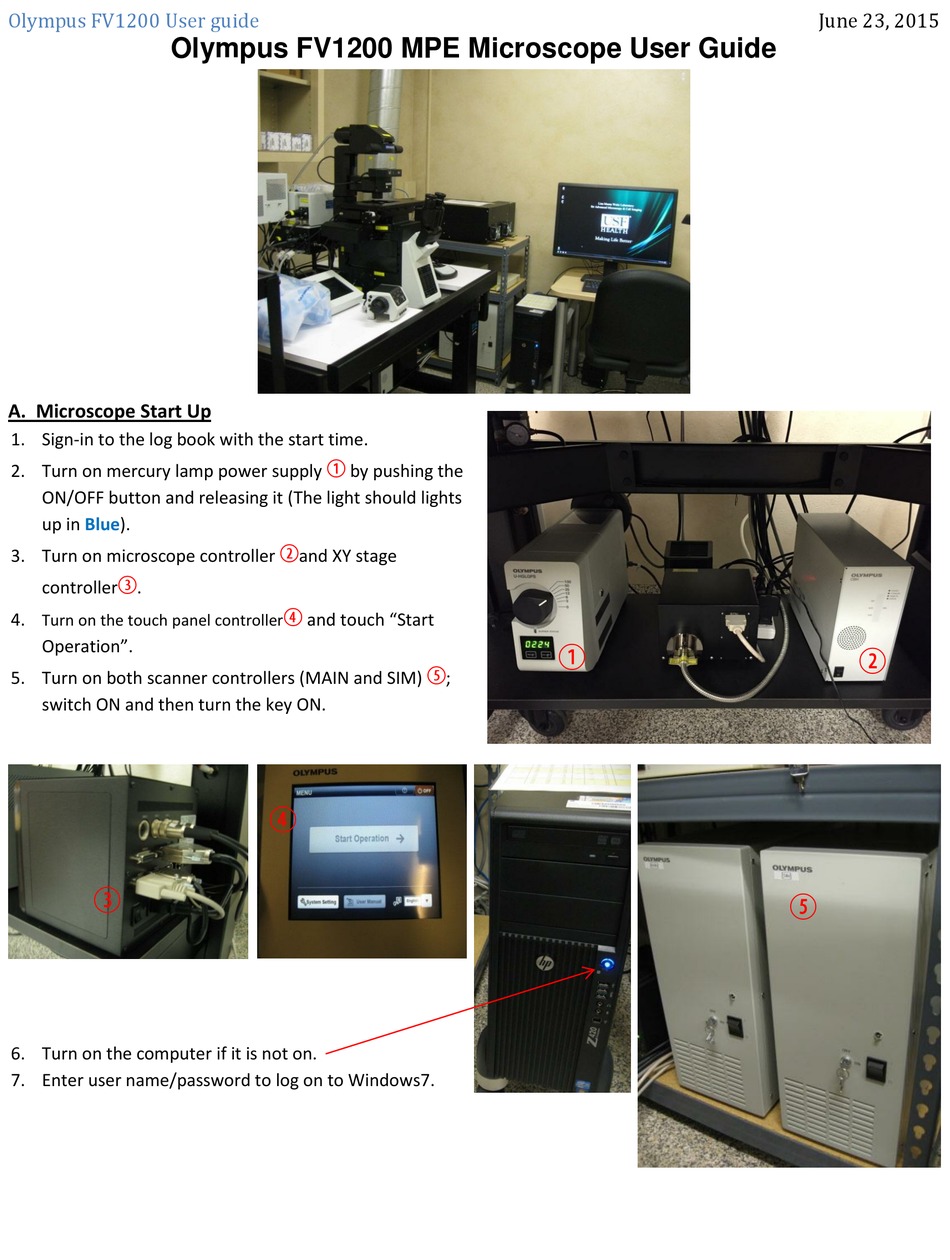

A. Microscope Start Up
1. Sign-in to the log book with the start time.
2. Turn on mercury lamp power supply
ON/OFF button and releasing it (The light should lights
up in Blue).
3. Turn on microscope controller
controller
.
4.
Turn on the touch panel controller
Operation".
5. Turn on both scanner controllers (MAIN and SIM)
switch ON and then turn the key ON.
6. Turn on the computer if it is not on.
7. Enter user name/password to log on to Windows7.
by pushing the
and XY stage
and touch "Start
;
June 23, 2015
