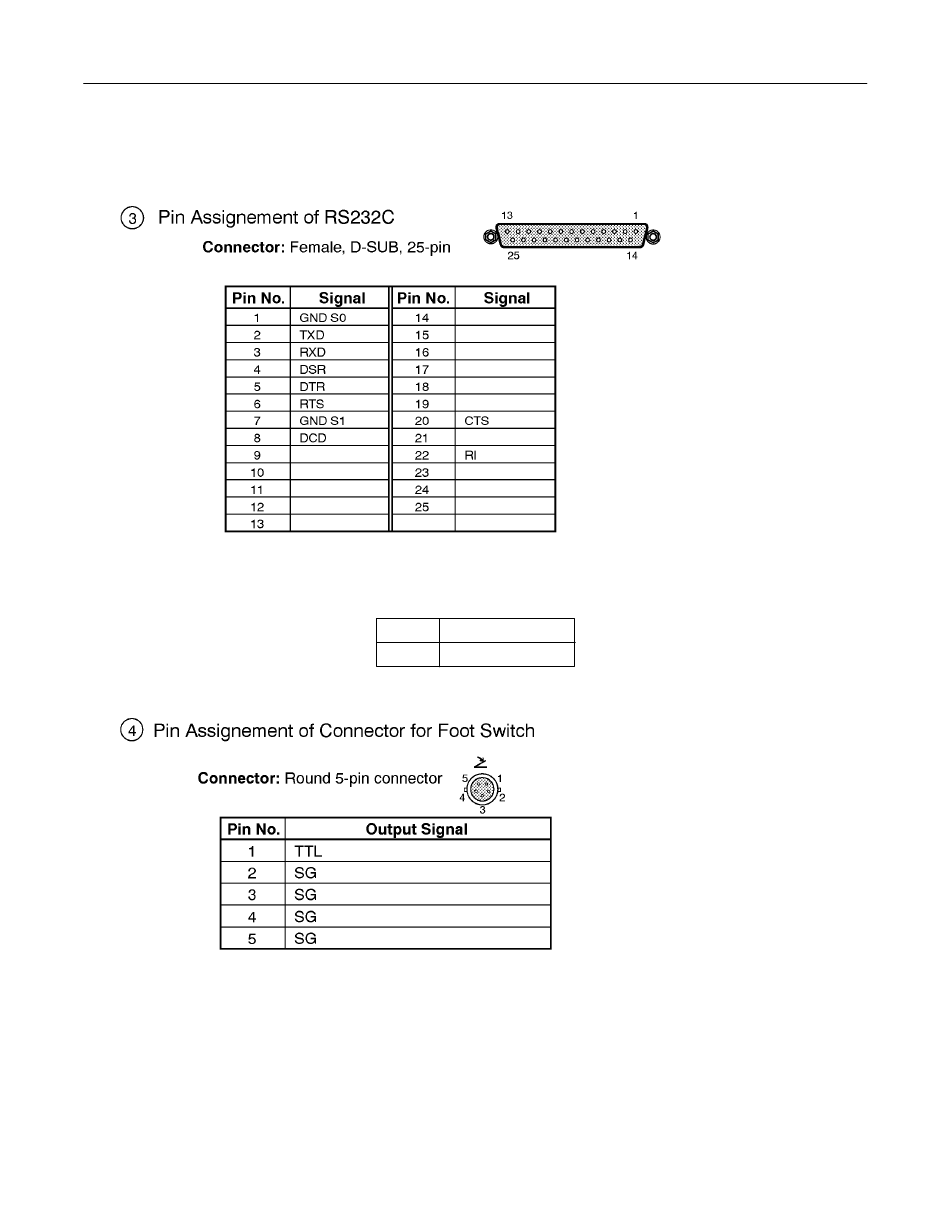

2–6 PERIPHERALS/ACCESSORIES CONNECTOR PANEL (Continued)
Output level of RS232C signals:
Output level of control signals indicated in the above tables are TTL level.
RTfino/RT3200 Advantage–II/RT–x200 SERVICE MANUAL
Note
High
+3V to +15V
Low
–15V to
0V
Note
2–12
P9030GX
