2

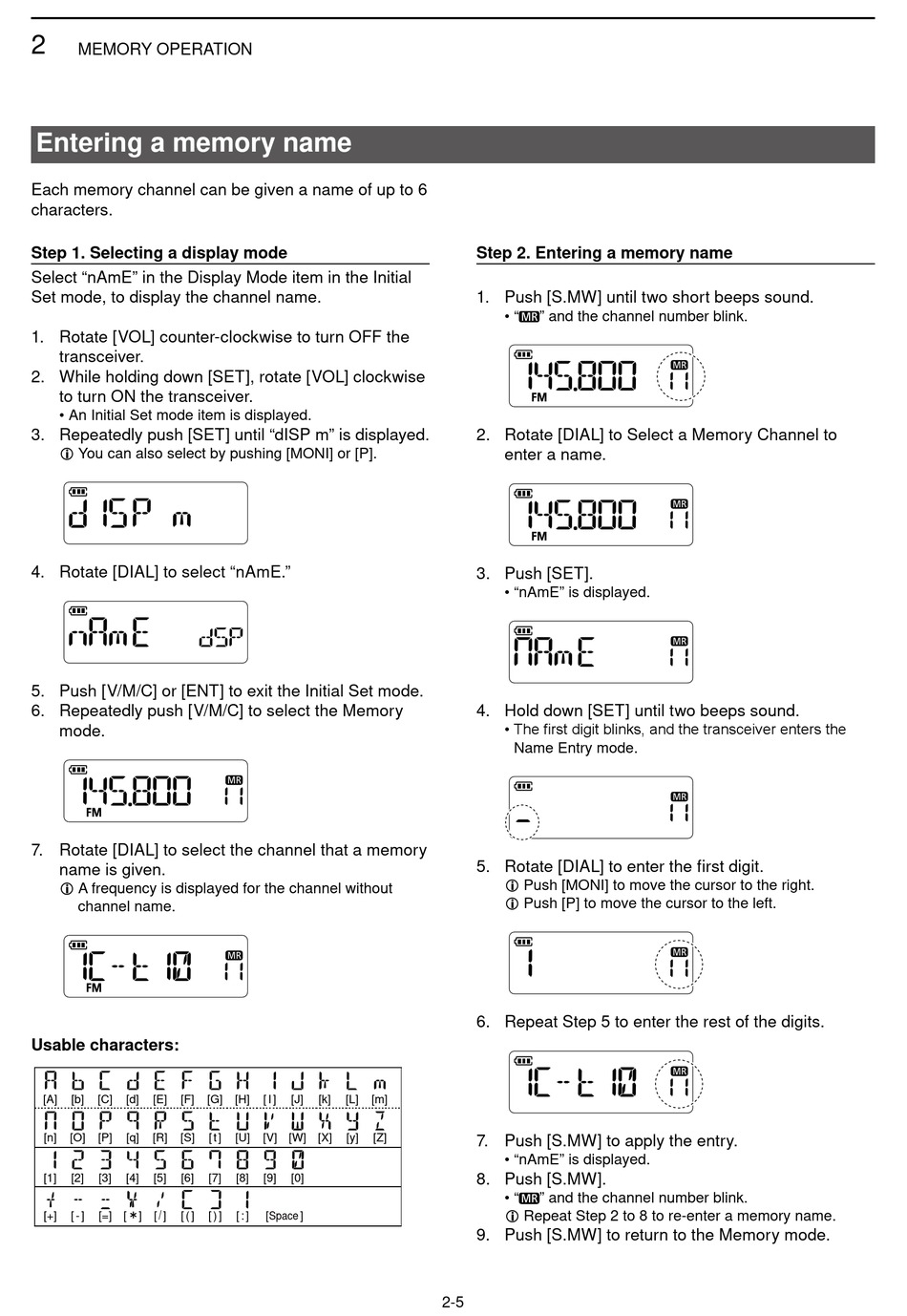

MEMORY OPERATION
Entering a memory name
Each memory channel can be given a name of up to 6
characters.
Step 1. Selecting a display mode
Select "nAmE" in the Display Mode item in the Initial
Set mode, to display the channel name.
1. Rotate [VOL] counter-clockwise to turn OFF the
transceiver.
2. While holding down [SET], rotate [VOL] clockwise
to turn ON the transceiver.
• An Initial Set mode item is displayed.
3. Repeatedly push [SET] until "dISP m" is displayed.
L You can also select by pushing [MONI] or [P].
4. Rotate [DIAL] to select "nAmE."
5. Push [V/M/C] or [ENT] to exit the Initial Set mode.
6. Repeatedly push [V/M/C] to select the Memory
mode.
7. Rotate [DIAL] to select the channel that a memory
name is given.
L A frequency is displayed for the channel without
channel name.
Usable characters:
[A]
[b]
[C]
[d]
[E]
[F]
[n]
[O]
[P]
[q]
[R]
[S]
[1]
[2]
[3]
[4]
[5]
[6]
＊
/
[+]
[ - ]
[=]
[
]
[
]
[ ( ]
[G]
[H]
[
I ]
[J]
[k]
[L]
[m]
[ t ]
[U]
[V] [W]
[X]
[y]
[Z]
[7]
[8]
[9]
[0]
[ ) ]
[ : ]
[Space ]
Step 2. Entering a memory name
1. Push [S.MW] until two short beeps sound.
• "
" and the channel number blink.
2. Rotate [DIAL] to Select a Memory Channel to
enter a name.
3. Push [SET].
• "nAmE" is displayed.
4. Hold down [SET] until two beeps sound.
• The first digit blinks, and the transceiver enters the
Name Entry mode.
5. Rotate [DIAL] to enter the first digit.
L Push [MONI] to move the cursor to the right.
L Push [P] to move the cursor to the left.
6. Repeat Step 5 to enter the rest of the digits.
7. Push [S.MW] to apply the entry.
• "nAmE" is displayed.
8. Push [S.MW].
• "
" and the channel number blink.
L Repeat Step 2 to 8 to re-enter a memory name.
9. Push [S.MW] to return to the Memory mode.
2-5
