9

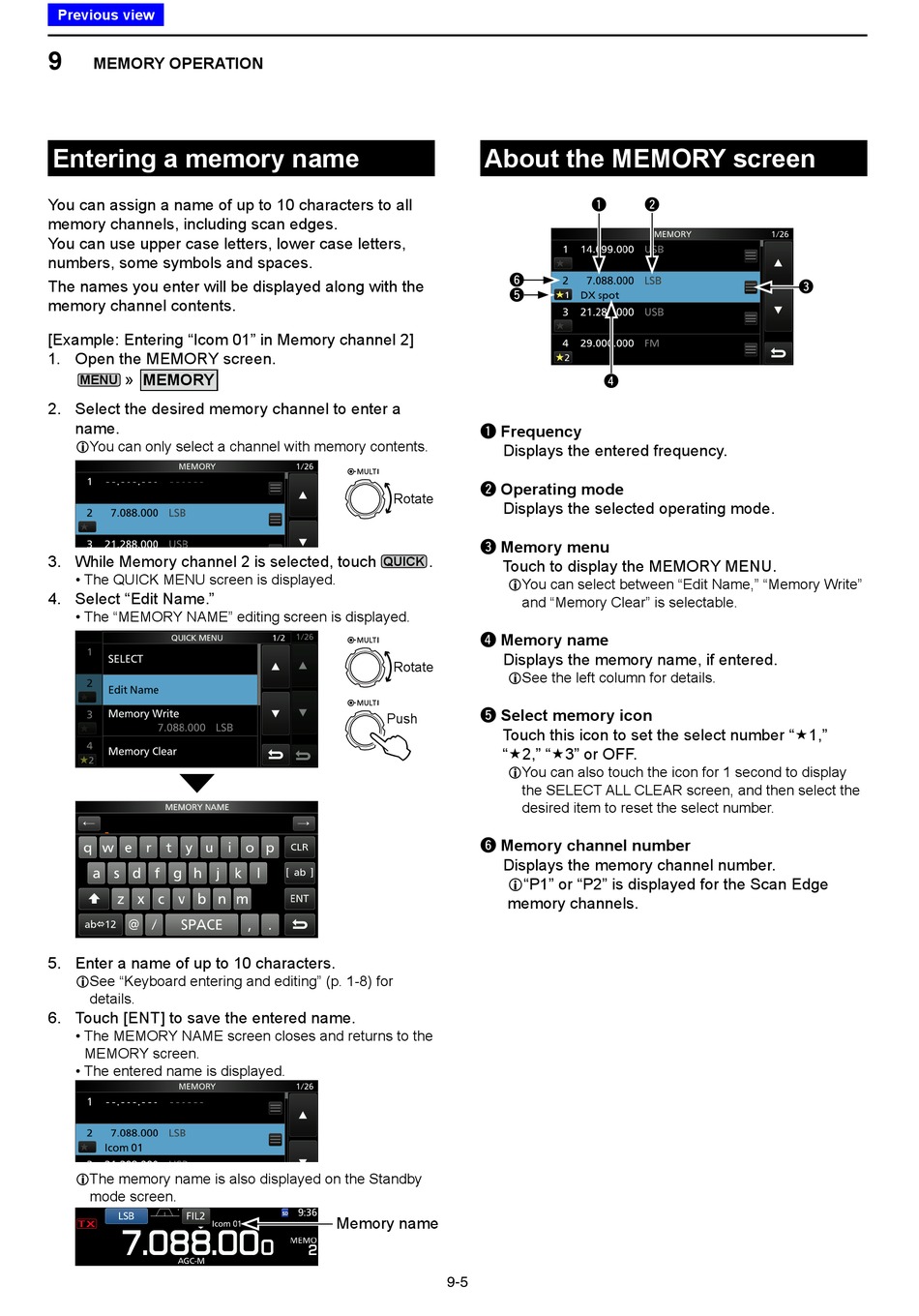

MEMORY OPERATION
Entering a memory name
You can assign a name of up to 10 characters to all
memory channels, including scan edges.
You can use upper case letters, lower case letters,
numbers, some symbols and spaces.
The names you enter will be displayed along with the
memory channel contents.
[Example: Entering "Icom 01" in Memory channel 2]
1. Open the MEMORY screen.
» MEMORY
MENU
2. Select the desired memory channel to enter a
name.
L You can only select a channel with memory contents.
3. While Memory channel 2 is selected, touch
• The QUICK MENU screen is displayed.
4. Select "Edit Name."
• The "MEMORY NAME" editing screen is displayed.
5. Enter a name of up to 10 characters.
L See "Keyboard entering and editing" (p. 1-8) for
details.
6. Touch [ENT] to save the entered name.
• The MEMORY NAME screen closes and returns to the
MEMORY screen.
• The entered name is displayed.
L The memory name is also displayed on the Standby
mode screen.
About the MEMORY screen
y
t
q Frequency
Displays the entered frequency.
w Operating mode
Rotate
Displays the selected operating mode.
e Memory menu
.
QUICK
Touch to display the MEMORY MENU.
L You can select between "Edit Name," "Memory Write"
r Memory name
Displays the memory name, if entered.
Rotate
LSee the left column for details.
t Select memory icon
Push
Touch this icon to set the select number "1,"
"2," "3" or OFF.
L You can also touch the icon for 1 second to display
y Memory channel number
Displays the memory channel number.
L"P1" or "P2" is displayed for the Scan Edge
memory channels.
Memory name
9-5
q
w
r
and "Memory Clear" is selectable.
the SELECT ALL CLEAR screen, and then select the
desired item to reset the select number.
e
