Endress+Hauser Micropilot FMR66B Brief Operating Instructions

Free space radar hart
Hide thumbs Also See for Micropilot FMR66B:
Table of Contents

Advertisement

Quick Links

Download this manual
KA01590F/00/EN/01.22-00
71575927
2022-08-01
Products
Brief Operating Instructions

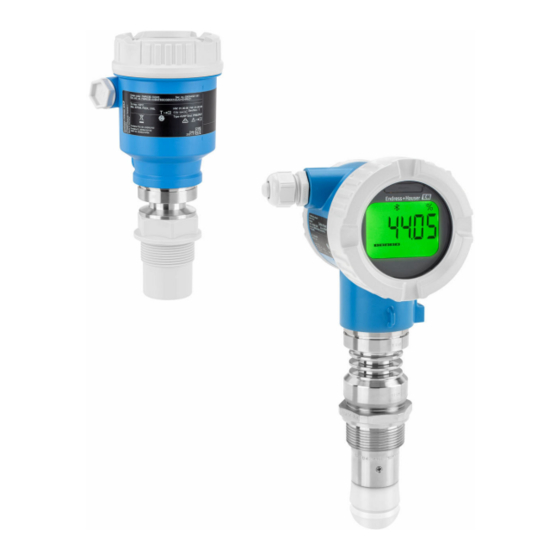

Micropilot FMR66B
Free space radar
HART
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR66B

Summary of Contents for Endress+Hauser Micropilot FMR66B

  • Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
  • Page 2 Micropilot FMR66B HART Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Micropilot FMR66B HART Table of contents Table of contents Symbols ................4 Safety symbols .

  • Page 4: Symbols

    Symbols Micropilot FMR66B HART Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: Requirements For Personnel

    Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 6: Workplace Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser...

  • Page 7: Incoming Acceptance

     All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate.  All the information about the measuring device is displayed.

  • Page 8: Manufacturer Address

    Storage and transport Micropilot FMR66B HART • Firmware version, hardware version • Approval-related information, reference to Safety Instructions (XA) • DataMatrix code (information about the device) Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate.

  • Page 9: Mounting Requirements

    Micropilot FMR66B HART Installation Install the device or turn the housing so that the cable entries do not point upwards.  A0029263 Always firmly tighten the housing cover and the cable entries. Counter-tighten the cable entries. A drip loop must be provided when laying the cables.
  • Page 10 Installation Micropilot FMR66B HART Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. 10.2.2 Avoiding interference echoes A0031817 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes.

  • Page 11: Mounting The Measuring Device

    Micropilot FMR66B HART Installation 10.2.5 Optimization options Mapping Measurement can be optimized by electronically suppressing interference echoes. See the Confirm distance parameter. 10.3 Mounting the measuring device 10.3.1 Encapsulated antenna, PVDF40 mm (1.5 in) Information concerning threaded connections • When screwing in, turn by the hex bolt only.
  • Page 12 Installation Micropilot FMR66B HART Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D. Maximum nozzle length H as a function of the nozzle diameter D D 50 to 80 mm (2 to 3.2 in) 750 mm (30 in) 80 to 100 mm (3.2 to 4 in)
  • Page 13 Micropilot FMR66B HART Installation NOTICE The housing cannot be unscrewed fully. ‣ Loosen the external locking screw by a maximum of 1.5 turns. If the screw is unscrewed too much or completely (beyond the screw anchor point), small parts (counter disk) can become loose and fall out.

  • Page 14: Post-Mounting Check

    Electrical connection Micropilot FMR66B HART 10.3.5 Closing the housing covers NOTICE Thread and housing damaged from dirt! ‣ Remove dirt (e.g. sand) on the cover and housing thread. ‣ If you encounter resistance when closing the cover, check the thread for dirt and clean it.
  • Page 15 Micropilot FMR66B HART Electrical connection 0.7 Nm A0039520  1 Cover with securing screw 11.1.2 Potential equalization The protective ground on the device must not be connected. If necessary, the potential matching line can be connected to the outer ground terminal of the transmitter before the device is connected.

  • Page 16: Connecting The Device

    Electrical connection Micropilot FMR66B HART 11.2 Connecting the device A0046659 Plastic single compartment housing Aluminum single compartment housing Dual compartment housing Dual compartment housing, L-form Connection compartment cover Housing thread The thread of the electronics and connection compartment is coated with lubricant varnish.
  • Page 17 The overvoltage protection can optionally be ordered as a "Mounted accessory" via the product structure Devices without optional overvoltage protection Equipment from Endress+Hauser fulfills the requirements of the product standard IEC / DIN EN 61326-1 (Table 2 Industrial Environment). Depending on the type of port (DC power supply, input/output port) different testing levels...
  • Page 18 Electrical connection Micropilot FMR66B HART Devices with optional overvoltage protection • Spark-over voltage: min. 400 V • Tested according to IEC / DIN EN 60079-14 sub chapter 12.3 (IEC / DIN EN 60060-1 chapter 7) • Nominal discharge current: 10 kA...
  • Page 19 Micropilot FMR66B HART Electrical connection 11.2.6 Terminal assignment Single compartment housing A0042594  3 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 20 Electrical connection Micropilot FMR66B HART Dual compartment housing A0042803  4 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 21 Micropilot FMR66B HART Electrical connection Dual compartment housing, L-form A0045842  5 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal 11.2.7 Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum...

  • Page 22: Ensuring The Degree Of Protection

    Electrical connection Micropilot FMR66B HART The type of cable entry depends on the device version ordered. Always route connecting cables downwards so that moisture cannot penetrate the connection compartment. If necessary, create a drip loop or use a weather protection cover.

  • Page 23: Operation Options

    (e.g. FieldCare/DeviceCare). 12.3 Structure and function of the operating menu The differences between the structure of the operating menus of the local display and the Endress+Hauser FieldCare or DeviceCare operating tools can be summarized as follows: Endress+Hauser...

  • Page 24: Access To The Operating Menu Via The Local Display

    Operation options Micropilot FMR66B HART The local display is suitable for configuring simple applications. The operating tools (FieldCare, DeviceCare, SmartBlue, AMS, PDM, ...) can be used to configure the parameters of wide-ranging applications. Wizards help the user to commission the various applications. The user is guided through the individual configuration steps.
  • Page 25 Requirement • Device with device display including Bluetooth • Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.05 or FieldXpert SMT70 The range of the connection is up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings.

  • Page 26: Access To The Operating Menu Via The Operating Tool

    12.6.1 Function scope Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs), DeviceCare presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S 12.7...

  • Page 27: Commissioning

    Micropilot FMR66B HART Commissioning Access is via: • CDI service interface • HART communication Typical functions: • Parameterization of transmitters • Loading and saving of device data (upload/download) • Documentation of the measuring point • Visualization of the measured value memory (line recorder) and event logbook...

  • Page 28: Establishing A Connection Via Fieldcare And Devicecare

    Commubox FXA195 (USB) Field Xpert SMT70 Bluetooth modem with connecting cable (e.g., VIATOR) Transmitter 13.3.2 Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Endress+Hauser...

  • Page 29: Configuring The Device Address Via Software

    Micropilot FMR66B HART Commissioning 13.4 Configuring the device address via software See "HART address" parameter Enter the address to exchange data via the HART protocol. • Guidance → Commissioning → HART address • Application → HART output → Configuration → HART address 13.5...

  • Page 30: Device Configuration

    Commissioning Micropilot FMR66B HART 13.6 Device configuration 13.6.1 Level measurement in bulk solids 100% A0016934  9 Configuration parameters for level measurement in bulk solids Reference point of measurement Distance Level "Empty calibration" parameter (= 0%) "Full calibration" parameter (= 100%) 13.6.2...
  • Page 32 *71575927* 71575927 www.addresses.endress.com...
