Summary of Contents for Interlogix DC428

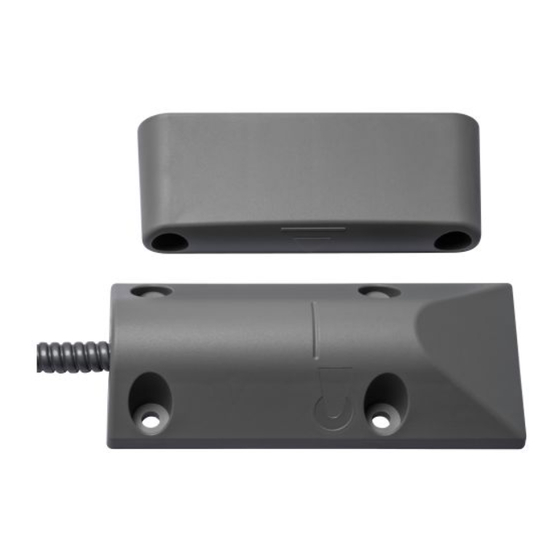

- Page 1 DC428 Magnetic Contact Operation and Installation Manual 1 of 7 © 2019 UTC Fire & Security Americas Corporation, Inc. P/N 466-2913 • REV C • ISS 15MAR19...
- Page 2 P/N 466-2913 • REV C • ISS 15MAR19 2 of 7...
- Page 3 P/N 466-2913 • REV C • ISS 15MAR19 3 of 7...
- Page 4 DC428 D 418 Intrusion Tampering / Removal Protection External Field / Fault Burglar Alarm System Intrusion zone Tamper zone Intrusion internal zone D 418 DC428 Intrusion Tampering / Removal Protection External Field / Fault Termination Resistor Burglar Alarm System 12-24 V DC...
-
Page 5: Installation
Thanks to its certification according to EN 50131-2-6:2008 Cover AMK G4 ATS 140.0 x 62.0 x 28.0 mm grade 4, the magnetic detector DC428 allows for contact-free Protective Hose Ø 7/ Ø 10 mm x 1 m opening monitoring of doors and windows in accordance with Seal AMK G4 ATS 10.4 x 13.8 x 11.8 mm... - Page 6 Configuration Learning-in the unit to the magnet You can only learn-in the detector to the magnet when it is in Note: To configure the detector, it has to be connected to a the “Environment Learnt-In” state. To learn-in the detector to power supply.
- Page 7 Permitted installation gap between 10 to 20 mm magnet and detector Contact information Installation offset on the sides (revolving) max. 1.5 mm www.utcfireandsecurity.com or www.interlogix.com. Clearance from metal components min. 2 mm For customer support, see www.utcfssecurityproducts.eu Permitted tolerance after learn-in (radial) max.
