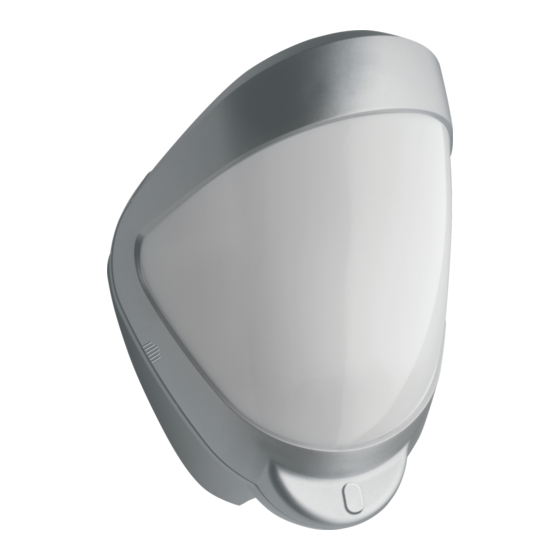

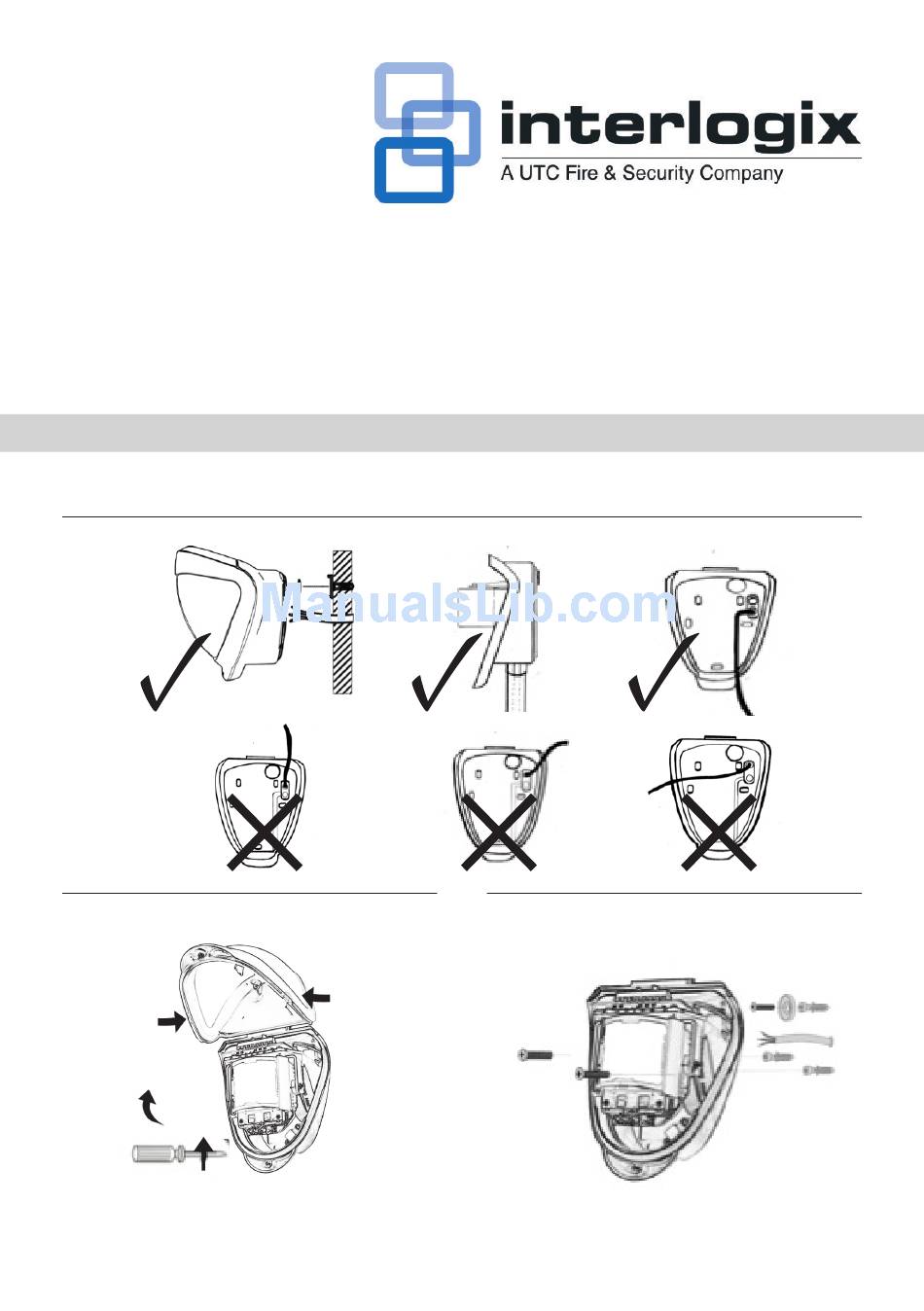

- Page 1 DDI602AM Outdoor Dual PIR/AM Detector Installation Sheet Figure 1 Figure 2 Figure 3...
- Page 2 Figure 4 Figure 5 Figure 6 Figure 7 Figure 8...
- Page 3 Figure 9 Long range 30m section Note: EN50131-2-4 Grade 3 compliance requires 3m mounting height and 0º adjustment, or 1.5 Short/ medium range mounting height and -2º adjustment. 6m to 20m section 0° 10 12 14 16 18 20 22 24 26 28 30m Figure 10 Note: This setup has not been tested to...
- Page 4 Figure 12 MASK THIS SECTION Note: This setup has not been tested to OFF FOR CURTAIN COVERAGE EN50131-2-4 APPLICATIONS 45° 8 10 12 14 16m Figure 14 Figure 13 70° 70° 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30m 1.
- Page 5 Figure 15 Legend: J TEOL: Jumper to enable TEOL. Figure 15a, Item 1 Ja: Jumper to set EOL resistor value for alarm. Figure 15a, item 2 Jt: Jumper to set EOL resistor value for standby. Figure 15a, item 3 alarm n/c Jf: Jumper to set EOL resistor value for fault.
- Page 6 Figure 16 Single zone TEOL Calculation Event Default (Ohm) CALCULATION TAMPER (SHORT) CLOSED CIRCUIT STANDBY ALARM Rt + Ra FAULT 14K7 Rt + Rf ANTI MASK 19K4 Rt + Ra + Rf TAMPER (OPEN) Inf. OPEN CIRCUIT EXAMPLE USING 4K7 TAMPER, 4K7 ALARM AND 10K FAULT/A-M RESISTORS ALSO TEOL JUMPER SELECTED REMOVE ALL JUMPERS FOR ISOLATED OUTPUTS Single zone DEOL Calculation...
-
Page 7: En: Installation Sheet
On uneven surfaces use the tamper cup and locate the tamper foot into the cup. Drilling template is provided. The DDI602AM Outdoor Dual PIR/AM Detector is an external motion detector and alarm trigger that uses two independent To aid installation, two spare tamper feet are provided. One passive infrared detectors plus a microwave sensor module. -
Page 8: Multi-Beam Alignment And Masking
6 meters. Multi-beam alignment and masking LEDs The multifunction lens fitted to the DDI602AM detector produces seven long-range beams and seven medium- to LEDs are shown on Figure 18. short-range curtain PIR beams. The PIR circuitry detects changes in heat and movement in the beam pattern. -
Page 9: Resetting Options
12 V to the unit on site. Option Walk test Range In walk test mode, the blue detection LED option is set to ON. The detection LED lights each time the DDI602AM detects your Pulse presence. count Detection... -
Page 10: Specifications
UTC Fire & Security can provide a hand held walk tester DI601 WT to aid installations. Infrared: Walk tester communication Red: PIR active Green: Microwave active Microwave module Operating frequency (country specific) DDI602AM-F1 10.525 GHz DDI602AM-F2 10.587 GHz DDI602AM-F3 9.9 GHz Outputs Silent, solid state, magnetically immune. -
Page 11: Regulatory Information
Latvia, Lithuania, Malta, Norway, Portugal, Russia, South Africa, Spain, Taiwan, Ukraine, USA. DDI602-F2 Greece, Italy, Thailand, UAE, UK (10.587 GHz) DDI602-F3 Austria, Czech Republic, Germany, (9.9 GHz) France, Poland Contact information www.utcfireandsecurity.com or www.interlogix.com. For customer support, see www.interlogix.com/customer- support.
