Page 6: About This Document
About this document Teqwave H About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 7: Symbols For Certain Types Of Information
• W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Detailed list of the individual documents along with the documentation code →... -
Page 8: Standard Documentation
About this document Teqwave H 1.3.1 Standard documentation Document type Purpose and content of the document Technical Information Planning aid for your device The document contains all the technical data on the device and provides an overview of the accessories and other products that can be ordered for the device. -
Page 9: Basic Safety Instructions
Teqwave H Basic safety instructions Basic safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. -
Page 10: Operational Safety
Conversions to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers. ‣ If, despite this, modifications are required, consult with Endress+Hauser. Repair To ensure continued operational safety and reliability, ‣ Carry out repairs on the device only if they are expressly permitted. -
Page 11: Product Description

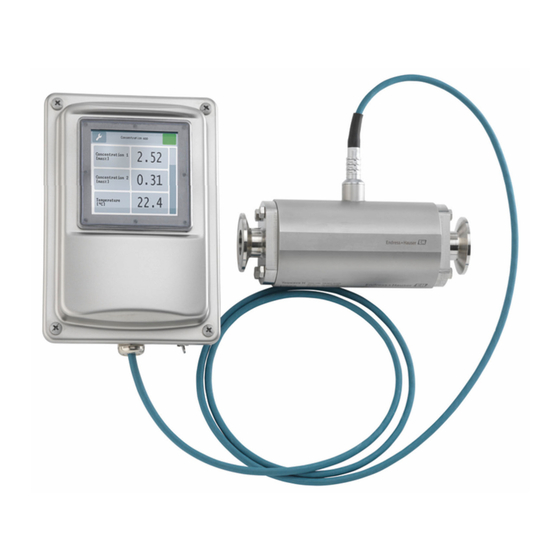

Teqwave H Product description Product description The measuring system consists of a sensor and a transmitter. The sensor and transmitter are mounted in physically separate locations. A connecting cable with a push-pull connector interconnects the sensor and transmitter. The measuring system uses concentration apps, which are individually tailored to the measurement task and encoded to work only with the serial number of a specific transmitter. -
Page 12: Measuring Device With Transmitter In Stainless Steel Housing
Sensor Concentration apps Endress+Hauser provides a separate concentration app for every medium. A concentration app contains the necessary specific characteristics of speed of sound and acoustic density in a defined temperature range, which are required to calculate the concentration and other analysis parameters (e.g. -
Page 13: Applications
Teqwave H Product description The data sheet provided with a concentration app contains information about the medium, the permitted measuring ranges and the accuracy of the concentration measurement. Applications Packages with multiple concentration apps can be ordered for the measuring device either during the initial purchase or subsequently. -
Page 14: Incoming Acceptance And Product
Is a CD-ROM provided with the Technical Documentation (depends on device version) and documents? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App, see the "Product identification"... -
Page 15: Transmitter Nameplate
Teqwave H Incoming acceptance and product identification 4.2.1 Transmitter nameplate Order code: Ser. no.: Ext. ord. cd.: Device ID FW Device Rev. A0035638 3 Example of a nameplate for a transmitter with an aluminum housing Place of manufacture Order code Serial number (Ser. -
Page 16: Sensor Nameplate
Incoming acceptance and product identification Teqwave H 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: FLOW A0044853 5 Example of a nameplate for a sensor with IP 67 degree of protection Name of the measuring device Order code Serial number (Ser. -
Page 17: Symbols On Measuring Device
Teqwave H Incoming acceptance and product identification Sensor Order code: Ser. no.: Ext. ord. cd.: A0044684 6 Example of a nameplate for a sensor with IP 69 degree of protection Name of the measuring device Place of manufacture Order code Serial number (ser. - Page 18 Incoming acceptance and product identification Teqwave H Symbol Meaning Signal ground connection A terminal that can be used as a ground contact for the digital input. A0035455 Switch output connection A terminal that can be used as a switch output.
-
Page 19: Storage And Transport
Teqwave H Storage and transport Storage and transport Storage conditions Observe the following notes for storage: • Store in the original packaging to ensure protection from shock. • Protect from direct sunlight to avoid unacceptably high surface temperatures. • Store in a dry and dust-free place. -
Page 20: Installation
Installation Teqwave H Installation Installation conditions 6.1.1 Mounting position Mounting location A0032998 7 Mounting location Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h ≥ 5 x DN. Inlet and outlet runs Observe the following inlet and outlet runs to comply with accuracy specifications: ≥... -
Page 21: Special Mounting Instructions
6.2.1 Mounting the sensor WARNING Danger due to improper process sealing ‣ Only use the seals provided by Endress+Hauser. Replacement seals can be ordered as an accessory → 78. ‣ Use clean, undamaged seals only. ‣ Firmly tighten the screws of the process connections. The process connection forms a metal connection with the sensor, which ensures a defined compression of the seal. - Page 22 Installation Teqwave H CAUTION Excessive force can damage the housing! ‣ Avoid excessive mechanical stress. Transmitter with aluminum housing ‣ Mount the transmitter on the DIN rail DIN EN 60715 TH 35 using the DIN rail holder. Transmitter with stainless steel housing The transmitter can be mounted in the following ways: •...
-
Page 23: Post-Installation Check
Teqwave H Installation 1. Unscrew the mounting plate. 2. Guide the holder rods through the pre-drilled openings in the mounting plate and screw the mounting plate back onto the transmitter. 3. Secure the transmitter holder to a post with the clamps. -
Page 24: Electrical Connection
Electrical connection Teqwave H Electrical connection The measuring device does not have an internal circuit breaker. For this reason, assign the measuring device a switch or power-circuit breaker that allows the power supply line to be easily disconnected from the mains. -
Page 25: Requirements For The Supply Unit
Teqwave H Electrical connection Terminal Assignment Description Signal ground alarm Switch output Max. AC 30 V/DC 50 V, 1 A 7.1.3 Requirements for the supply unit Supply voltage DC 24 V ±20% Version Touch-safe circuit according to DIN EN 61010-1, as terminal V- is electrically connected to the transmitter housing. -
Page 26: Connecting The Signal And Supply Voltage Cables
Electrical connection Teqwave H 7.2.2 Connecting the signal and supply voltage cables The measuring device does not have an internal circuit breaker. For this reason, assign the measuring device a switch or power-circuit breaker that allows the power supply line to be easily disconnected from the mains. -
Page 27: Connecting The Signal And Supply Voltage Cables
Teqwave H Electrical connection NOTICE Measuring device malfunction Damaged cables can impact the functional integrity of the measuring device. ‣ Avoid strain when laying the connecting cable. ‣ Do not bend or shorten the connecting cable. ‣ Do not remove the plug of the connecting cable. -
Page 28: Ensuring Potential Equalization
Electrical connection Teqwave H A0043296 1. Push the signal and supply voltage cables through cable entries (1) and (2) and (where applicable) push the Ethernet cable through the cable entry (3). To ensure tight sealing, do not remove the sealing ring from the cable entry. -
Page 29: Special Connection Instructions
Teqwave H Electrical connection Special connection instructions 7.4.1 Connection examples Current output 4 to 20 mA 4...20 mA A0028758 11 Connection example for current output, active, 4 to 20 mA Automation system with current input (e.g. PLC) Analog display unit: maximum load 500 Ω... -
Page 30: Post-Connection Check
Electrical connection Teqwave H Digital input (elective inputs) The digital input can output up to four measured variables on the analog output. Configuration options: Active analog output Digital input "0" Digital input "1" Channel 1 Open Open Channel 2 Ground... -
Page 31: Operation Options
Teqwave H Operation options Operation options Overview of the operation options The measuring device can be operated in the following ways: • Operation via the local display (transmitter with touch screen) • Operation via the "Teqwave Viewer" operating tool supplied... - Page 32 Operation options Teqwave H Functions of the display and operating elements Button Description Settings menu Opens the settings. Navigation Navigate between the menus or submenus. Status display Displays the current status, and navigation to more detailed status messages in text format.
-
Page 33: Led Status Indication (Transmitter With Led Status Indication)
Teqwave H Operation options Input mask The following input and operating symbols are available in the input mask of the numeric and text editor: Input and operating symbols in the editors Symbol Meaning Selection of letters from A to Z. -
Page 34: System Requirements
Operation options Teqwave H 8.3.1 System requirements Computer hardware Interface The computer must have an Ethernet RJ45 interface. Connection Standard Ethernet cable with RJ45 connector. Screen Recommended screen resolution: min. 1024 x 768 pixels. Computer software Recommended operating system Microsoft Windows 7 or higher. - Page 35 Teqwave H Operation options 5. Settings menu → "Network settings" → "Subnet mask" 6. Settings menu → "Network settings" → "Gateway" 7. Settings menu → "Network settings" → "DHCP" Navigation using the Viewer 1. Menu "Teqwave Transmitter" → "Network settings" → "IP address"...
-
Page 36: User Interface
Operation options Teqwave H Parameters Description Selection/entry/display Factory setting Gateway Enter the IP address for a Character string with the 0.0.0.0 gateway in the local format w.x.y.z network. DHCP (transmitter) Enable DHCP to allow the Enable or disable the The function is disabled... -
Page 37: General Control And Operating Elements
Teqwave H Operation options A0035470-EN 16 User interface Menu bar Measured variable display Status display IP address displayed Graph Menu bar Menu Description File Functions to start and stop measured value transmission and to save the graph. Teqwave Viewer Functions that are required to configure the operating tool. - Page 38 Operation options Teqwave H Button Description Close button Exit the function. A0035495-EN Active button Enable function or parameter. A bright-green arrow A0035496 indicates enabled functions and parameters. Inactive button Disable function or parameter. A dark-green arrow A0035497 indicates disabled functions and parameters.
-
Page 39: System Integration
Teqwave H System integration System integration Overview of device description files Current version data for the device Firmware version 2.3.zz • On the title page of the Operating instructions • On the nameplate • On the local display: settings • Via the "Teqwave Viewer"... - Page 40 System integration Teqwave H Register name Access Data type Register address Length Input/output Concentration C Read IEEE754 32 bit 0x0004:0x0005 Additional analysis Read IEEE754 32 bit 0x0006:0x0007 parameter 1 Additional analysis Read IEEE754 32 bit 0x0008:0x0009 parameter 2 Additional analysis...
- Page 41 Teqwave H System integration (sign, exponent and upper part of the mantissa) and the second address containing the most significant word (lower part of the mantissa). To get the concentration, the following data must be sent for a query to the transmitter IP...
-
Page 42: Commissioning
Commissioning Teqwave H Commissioning NOTICE Damage to the touch screen Sharp objects, electrostatic discharge, water and the use of pens not designed for touch screens, such as standard pencils, can cause a malfunction of the transmitter or damage the touch screen. -
Page 43: Configuring The Measuring Device
Teqwave H Commissioning 10.4 Configuring the measuring device If you are using the transmitter with a touch screen, it is possible to configure the device either via the transmitter touch screen or via the "Teqwave Viewer" operating tool. If you are using the transmitter with an LED status indication, the configuration must be performed via the Viewer. -
Page 44: Configuring The Analog Output
Commissioning Teqwave H Parameter overview with brief description Parameters Procedure Selection/input Factory setting Analysis parameter 1…n Select the unit for analysis Depends on the selected Depends on the selected parameter. concentration app concentration app Temperature Select the unit for temperature. - Page 45 Teqwave H Commissioning Parameter overview with brief description Parameters Procedure Selection/input Factory setting Analog channel 1...4 Select the measured variable or • Analysis parameter 1…n Analysis parameter 1 special function to be output at the • Temperature analog output. • Speed of sound •...
-
Page 46: Displaying Calibration Ranges
Commissioning Teqwave H 10.4.4 Displaying calibration ranges The calibration ranges for the temperature and the concentration and compensation values can be viewed via the Select concentration app menu (transmitter with touch screen). The calibration ranges are also specified on the data sheet of a concentration app. -
Page 47: Configuring The Relay Output
Teqwave H Commissioning Parameter overview with brief description Parameters Procedure Selection/input Factory setting Measuring range Max Enter the upper limit for the Positive decimal • Analysis parameter 1…n: selected measured variable or depends on the selected 20 mA current/10 V voltage, while... - Page 48 Commissioning Teqwave H Parameter overview with brief description Parameters Procedure Selection/input Factory setting Output mode Select the mode for the switch point • Range mode Range mode definition. • Trigger mode If Range mode is selected, enter the upper and lower limit to define the switch points.
-
Page 49: Configuring The Measured Value
Teqwave H Commissioning Parameters Procedure Selection/input Factory setting Switch point Min Prerequisite: Positive decimal • Analysis parameter 1…n: Range mode is selected in the depends on the selected Output mode parameter. concentration app Set the lower limit at which the •... -
Page 50: Configuring The Touch Screen
Commissioning Teqwave H Parameter overview with brief description Parameters Procedure Selection/input Factory setting View settings Transmitter • Analysis parameter 1…n All the measured variables are Tap the measured variable to show • Temperature displayed. or hide it on the transmitter' s •... - Page 51 Teqwave H Commissioning 6. Settings menu → "User settings" → "Screensaver" → "Reduce brightness" and "Display turn off" → "Time settings" → "Start after" 7. Settings menu → "User settings" → "Screensaver" → "Reduce brightness" and "Display turn off" → "Time settings" → "Time unit"...
-
Page 52: Configuring The Failure Mode
Commissioning Teqwave H Parameters Procedure Selection/input Factory setting To prevent an unauthorized • 4-digit character string or LSC2 concentration app change, enter the numerical sequence password and enable the function. • Enable/disable the function When you tap the Password button the text editor opens where you can enter the password. - Page 53 Teqwave H Commissioning Parameter overview with brief description Parameters Procedure Selection/input Factory setting View options Select filter options and Filter options: The "Measuring range limits" and (transmitter) arrangements to enable or disable • Measuring range limits "Calibration range limits" options are Filter options/filter arrangements them.
-
Page 54: Advanced Settings
Commissioning Teqwave H Parameters Procedure Selection/input Factory setting Change in dispersion 1/s Enter the limit value for the 0.01 to 100 1/s 100 1/s maximum permissible speed at The function is disabled. which the dispersion can change. Enable or disable the function using the button. - Page 55 Teqwave H Commissioning 6. Use the "Save" button to save the recipe. The "Enter path of file(s)" window appears. 7. Select the path and file name to save the recipe. A new recipe has been created: the recipe name is the default for the file name but it may be overwritten if the user requires;...
-
Page 56: Setting The Compensation Values
Commissioning Teqwave H Parameter overview with brief description Parameter/function Procedure Selection/input Factory setting Compensation value K1…K4 Enter the compensation value as a User entry: User entry: constant value: Positive decimal 0.00 In the selection field, select the Options: Options: "Fixed value" option and enter the •... -
Page 57: Setting The Concentration Offset
Teqwave H Commissioning Parameter overview with brief description Parameter/function Procedure Selection/input Factory setting Compensation value 1…4 Enter the compensation value as a User entry: User entry: constant value: Positive decimal 0.00 In the "Compensation" selection Options: Options: field, select the "Fixed value" option •... -
Page 58: Medium
Up to two calibration points can be recorded. If a two-point calibration is performed, Endress+Hauser recommends capturing two different states of the liquid. Different states can be different temperatures or concentrations. The process conditions must remain constant here. If necessary, remove a calibration point with the "Delete calibration point"... -
Page 59: Application Package "Viewer With Interface For Data Download
10.6.2 Activation Endress+Hauser provides users with a license key to activate the functions. The license key must be entered to enable the functions of the application package. The key is entered in the Viewer via the "Teqwave Transmitter" → "License key" menu. - Page 60 Commissioning Teqwave H Navigation Viewer Menu "Teqwave Transmitter" → "Storage interval" The operating tool communicates the settings to the transmitter as soon as the Apply button is clicked. Parameter overview with brief description Parameters Procedure Selection/input Factory setting Storage interval (s)
-
Page 61: Operation
Teqwave H Operation Operation 11.1 Changing the operating language Operating language settings → 42. 11.2 Configuring the local display Local display settings → 50. 11.3 Reading measured values via the local display All the current measured values can be read via the operational display of the transmitter with a touch screen. -
Page 62: Graph Tools
Operation Teqwave H 11.3.2 Graph tools Button Description Settings Navigate to the graph settings. Cursor position Select the cursor position in the graph for the desired measured value display. Delete Clears the graph. The graph representation then resumes. 11.4 Reading measured values via the operating tool The Viewer presents the measured data in graph and text form on the start screen. -
Page 63: Graph Tools
Teqwave H Operation Parameters Procedure Selection/input Factory setting Y-axis 2 Select measured variables to be • Analysis parameter 1…n Temperature displayed on the right-side axis. • Temperature • Speed of sound • Density • Dispersion Time interval in s Specify the display rate (in seconds) -
Page 64: Saving The Current Measuring Point
Operation Teqwave H 11.5.1 Saving the current measuring point to a .csv file 1. Select the menu "Teqwave Viewer" → "Single measurement". The "Enter path of file(s)" window appears. 2. Select the file where the measuring point is to be saved. To save the measuring point, either create a new .csv file on the computer or select an existing .csv file on the... -
Page 65: Reading Measured Data From The Transmitter
Teqwave H Operation The Viewer can read out and delete measured data recorded during the operation of the transmitter with the Read memory function. The Viewer saves the data with the Save read data function. 11.7.1 Reading measured data from the transmitter 1. -
Page 66: Adding A Concentration App To The Transmitter
Replacing the transmitter Establishing a connection → 34. 11.10 Updating the firmware Firmware updates must be installed via the Viewer. They are available in the Download Area of the Endress+Hauser website: www.endress.com → Downloads. Specify the following details: • Search area: "Software"... - Page 67 Teqwave H Operation Updating the firmware NOTICE Damage to the measuring device Disconnecting the transmitter from the power supply or the computer during the update process can damage the transmitter. ‣ Do not disconnect the transmitter power supply and the connection to the computer.
-
Page 68: Diagnostics And Troubleshooting
Diagnostics and troubleshooting Teqwave H Diagnostics and troubleshooting 12.1 General troubleshooting 12.1.1 For the local display: transmitter with touch screen Error Possible causes Remedial action Local display dark and no output signals. Supply voltage does not match that specified on Apply the correct supply voltage. -
Page 69: For Access Via The "Teqwave Viewer" Operating Tool
Teqwave H Diagnostics and troubleshooting Error Possible causes Remedial action Operation outside the range of application. Ensure homogeneous mixing of the liquid and continuous flow of liquid to the sensor. Remove air bubbles and/or particles. Ensure the temperature value is stable. -
Page 70: Diagnostic Information On Local Display And In Operating Tool
Diagnostics and troubleshooting Teqwave H Signal Meaning Flashes The measurement is not stable and/or at least one of the measured variables is outside the valid range. This can be caused by the following system conditions: • Measuring range limits exceeded/undershot: At least one of the measured variables has breached its configured permitted range. -
Page 71: Diagnostics Information For Transmitter With
Teqwave H Diagnostics and troubleshooting Signal color Diagnostic message Description Measures "Compensation not Missing compensation value. Check the functional integrity of the external possible: Modbus measuring devices. communication faulty" Check and guarantee Modbus communication with external measuring devices. "No liquid present"... -
Page 72: Diagnostic Information Via Dispersion
Diagnostics and troubleshooting Teqwave H Signal Meaning Flashes The measurement is not stable and/or at least one of the measured variables is outside the valid range. This can be caused by the following system conditions: • Measuring range limits exceeded/undershot: At least one of the measured variables has breached its configured permitted range. -
Page 73: Resetting The Measuring Device To Factory Default Settings
8. Check the test report. If the test values are outside the tolerance range, the sensor may need to be adjusted. In such cases, please contact your Endress+Hauser sales organization. Permitted deviations: speed of sound: ± ≤ 0.5 m/s and density: ± ≤... -
Page 74: Firmware History
Diagnostics and troubleshooting Teqwave H Navigation using the Viewer Menu "Help" → "Version" → "Show device information" Parameter overview with brief description Parameters Description Display Factory setting Teqwave Viewer (Viewer) Displays the current version of the Character string with the format: Teqwave Viewer. -
Page 75: Maintenance
Replacement seals (accessory) → 78 13.2 Endress+Hauser services Endress+Hauser offers a wide variety of services for maintenance such as recalibration, maintenance service or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services. Endress+Hauser... -
Page 76: Repair
• The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory. -
Page 77: Disposal
(WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. Instead, return them to Endress+Hauser for disposal under the applicable conditions. -
Page 78: Accessories
Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. -
Page 79: General
If you require a concentration app that is not already listed in the Applicator, Endress+Hauser requires a sample of the medium to create the concentration app. Endress+Hauser provides the concentration app as a file in lmf format. Every transmitter can use a maximum of 25 concentration apps. -
Page 80: Technical Data
Technical data Teqwave H Technical data 16.1 Application The measuring device is intended only for the measurement or analysis of liquids. To ensure that the device remains in proper operating condition for its service life, use the measuring device only for media against which the process-wetted materials are sufficiently resistant. -
Page 81: Output
To increase the accuracy, the automation system can write a variety of compensation values to the measuring device: • Operating pressure (Endress+Hauser recommends the use of a pressure measuring device for absolute pressure, e.g. Cerabar M or Cerabar S) • Reference density •... - Page 82 Technical data Teqwave H Switch output Function Switch output Version Relay output, galvanically isolated Maximum switching AC 30 V/DC 50 V, 1 A capacity Switching behavior • NC contact • NO contact Assignable functions • Off • On • Limit value (can be configured as a range or trigger value, as required): •...
- Page 83 Teqwave H Technical data The breakdown information to be displayed if the process is not stationary (stationarity) can be configured in the View filter parameter. If the "Enable stationarity" option is selected: For the concentration or analysis parameter: the current status is held.
-
Page 84: Power Supply
Technical data Teqwave H 16.5 Power supply Terminal assignment → 24 Supply voltage Transmitter DC 24 V ±20% The power unit must be tested to ensure it meets safety requirements (PELV). Power consumption Transmitter Current consumption Transmitter Maximum switch-on current Power supply failure The configuration and recorded data are retained in the device memory. -
Page 85: Installation
Teqwave H Technical data Response time Influence of medium temperature The response time of the temperature measurement depends on the transfer of heat from the liquid to the steel. Activation of the Kalman filter accelerates the response time. An erratic change in the temperature generates a temporary error message. A threshold for displaying the error can be set. -
Page 86: Process
Technical data Teqwave H 16.9 Process Medium temperature range Sensor 0 to +120 °C (+32 to +248 °F) Nominal pressure Sensor Max. 16 bar (232 psi) at 20 °C (68 °F) Flow velocity Max. 10 m/s (32.8 ft/s) 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical... -
Page 87: 16.11 Operability
Teqwave H Technical data Cable entries/ Plastic Terminal connection Polybuteneterephthalate (PBT) Ethernet interface • Socket: ferrite • Contact housing: thermoplastic • Contacts: 100 % tin with nickel coating, gold-plated Push-pull connection • Socket: brass, nickel-plated • Contact housing: polyetheretherketone (PEEK) •... -
Page 88: 16.12 Certificates And Approvals
The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Hygienic compatibility •... -
Page 89: 16.14 Accessories
For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation Document type... -
