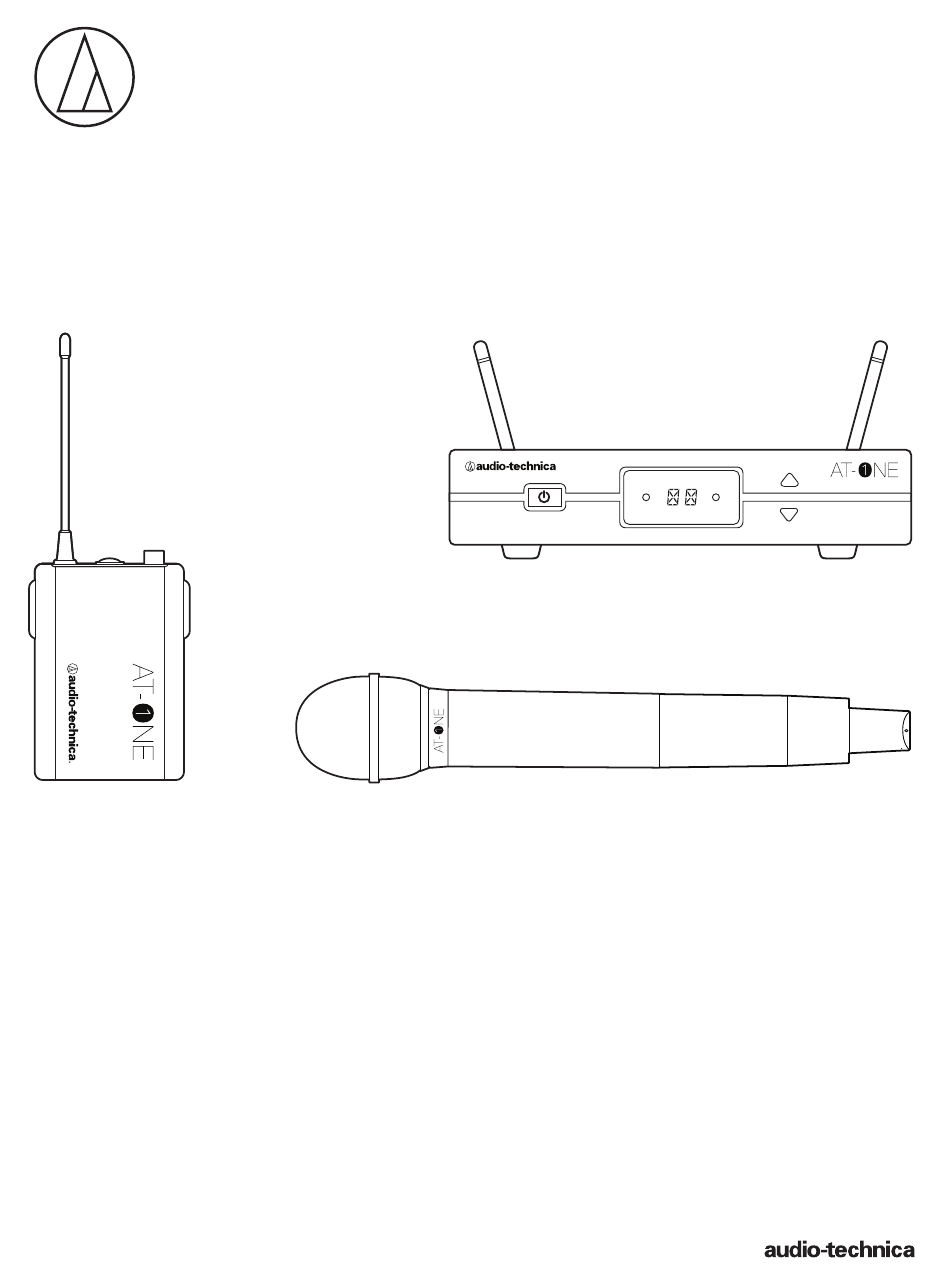

- Page 1 AT-ONE Wireless Systems User Manual UHF Wireless Systems DOWN ATW-R1 ATW-R1 Receiver ATW-T1 Body-Pack Transmitter ATW-T3 Handheld Transmitter...
-
Page 2: Table Of Contents
Installation and Operation CAUTION! Introduction Electrical shock can result from removal of the receiver cover. Refer servicing Thank you for purchasing this Audio-Technica product. This PLL synthesized to qualified service personnel. wireless microphone system operates in two different UHF band frequencies. Please read this manual carefully before operating the AT-ONE system. -
Page 3: Receiver Controls And Functions
Receiver Controls and Functions Front Panel Controls and Functions 6. UP Channel Button: Press and hold until the channel ID number begins to blink. Then tap the button to select a new channel (+1 ch/tap). Release the 1. Antenna: Detachable UHF antenna with BNC connector. button. -
Page 4: Transmitter Controls And Functions
Transmitter Controls and Functions Handheld Transmitter Controls and Functions 3. Channel Selector: Change the channel setting from 11-14 or 21-24. 1. Power/Mute Button 4. Battery Compartment: Insert two AA batteries, making sure the 2. Power/Mute/Battery Status LED: Indicates the power/mute/battery polarity is correct. -
Page 5: System Operation
System Operation System Setup For best operation the receiver should be at least 1 m above the ground and at least 1 m away from a wall or metal surface to minimize interference. The transmitter should be at least 3 m from the receiver, as shown in the diagram to the right. - Page 6 System Operation (continued) Handheld Microphone/Body-Pack Transmitter Setup Open the battery cover and insert AA batteries into the battery compartment, making sure the polarity is correct. Unscrew the bottom of the handheld mic and open the battery cover to insert AA batteries into the battery compartment, making sure the polarity is correct. Press and hold the power button on the handheld/body-pack transmitter for 4 seconds to turn on.
- Page 7 System Operation (continued) Squelch Sound Interference • Check the location for RF interference. The squelch function is used to minimize RF interference. If you experience RF • When using two or more sets simultaneously, make sure the chosen interference or cross talk between transmitters, increase the squelch level until frequencies do not interefere with each other.
-
Page 8: Specifications
Specifications † Overall System Body-Pack Transmitter Frequency Range DE3: 482 - 492 MHz, 495 - 512 MHz RF Output Power 10 mW HH2: 824 - 831 MHz, 863 - 865 MHz Spurious Emissions Following federal and Modulation Mode national regulations Number of Frequencies 2 x 4 frequencies Input Connections... -
Page 9: Declaration Of Compliance
Konformitätserklärung finden Sie unter folgender Internet-Adresse: eu.audio-technica.com/doc GR Με το παρών , η Audio Technica Corp., δηλώνει ότι τα ATW-T1 , ATW-T3 και ATW-R1 συ φωνούν ε την οδηγία 1999/5/EC . Το πλήρε κεί ενο τη οδηγία τη EU ( ∆ήλωση... - Page 10 Audio-Technica Corporation (Headquarters) | 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan Audio-Technica Limited (Importer for United Kingdom) I 5 Millennium Way, Leeds LS11 5AL, United Kingdom Audio-Technica Dutch Branch (Importer for Europe) I Waardsedijk-Oost 7, 3417XJ Montfoort, The Netherlands Audio-Technica U.S., Inc. | 1221 Commerce Drive, Stow, Ohio 44224, USA Made in Taiwan www.audio-technica.com ©...
