Audio Technica ATW-RM1 Installation And Operation

Professional UHF
Wireless Systems
ATW-RM1 Rack Mount Hardware Kit
Installation and Operation
Assembly Instructions/ATW-RM1 Rack-mount Hardware Kit
For use with Audio-Technica 2000 and 3000 Series wireless
systems and for the ATW-DA49 antenna distribution system.
This kit contains the hardware necessary for mounting a half-rack
receiver or distribution system in a 19" audio equipment rack; also
brings antennas to the front for improved reception.

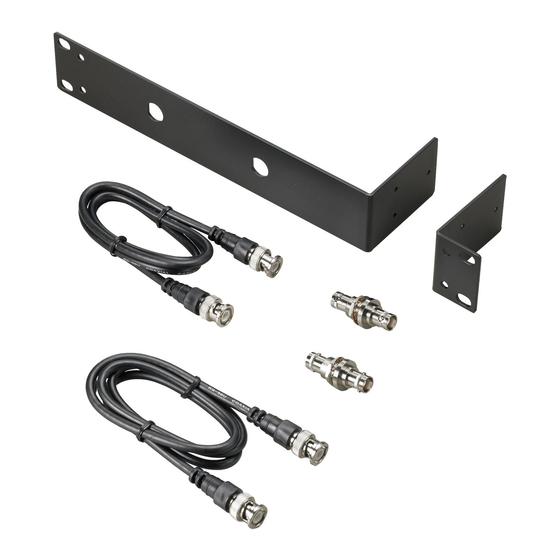

The following parts are included:
• Long rack ear
• Short rack ear
• Two BNC bulkhead connectors with mounting hardware
• Two 34" BNC-to-BNC cables
• Six rack ear screws
Figure 1
BNC-BNC Cables
Lock-Washer
Long Rack Ear
Nut
Rubber Washer
Bulkhead Connector
How to assemble the ATW-RM1 Rack Mount Hardware Kit (see Fig. 1)
1. Remove the nut and lock-washer from each bulkhead connector.
Install the connectors from the front into the two holes in the long
rack ear (see Fig. 1). Note that the flat on the threaded section
must be aligned with the flat in each panel hole.
2. Install the lock-washer and nuts (included) over the back of each
bulkhead connector. Secure each connector from the back with its
lock-washer and nut, tightening the nut firmly.
3. Connect one end of each provided BNC-BNC cable to the rear
antenna input jacks on the back of the receiver (or antenna distribution
system amplifier). Attach the other end of each cable to the back of
the BNC bulkhead connectors. Make certain the bayonet twist-rings
are fully latched on the connectors at both ends.
4. Finally, mount the receiver's antennas to each of the BNC bulkhead
connectors.
Antennas (not included)
Short Rack Ear
