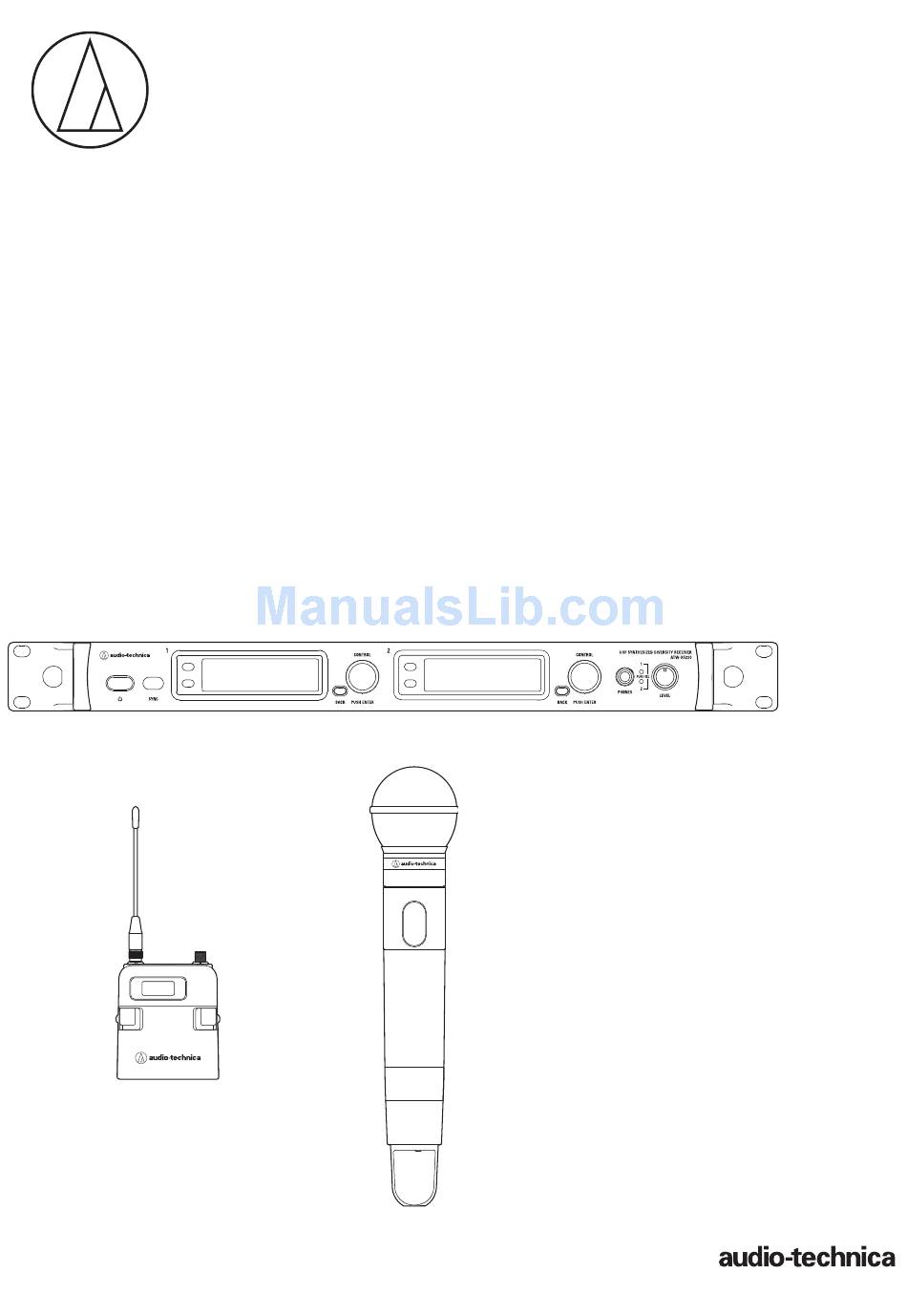

- Page 1 5000 Series User Manual UHF Wireless Systems ATW-R5220 Dual Receiver ATW-R5220DAN Dual Receiver with Dante Output ATW-T5201 Body-Pack Transmitter ATW-T5202 Handheld Transmitter (without capsule)
-
Page 2: Table Of Contents
Notes on use ................4 Achieving stable reception ............28 Maintenance ................4 Rack-mounting the receiver............28 Part names and functions ............5 Troubleshooting .................29 ATW-R5220/ATW-R5220DAN ................5 ATW-R5220/ATW-R5220DAN ................ 29 ATW-T5201 ...................... 7 ATW-T5201/ATW-T5202 ................. 29 Dimensions ................30 ATW-T5202 ...................... 8 How to insert batteries ..............9 ATW-R5220/ATW-R5220DAN ................ -
Page 3: Introduction
Introduction Thank you for purchasing this Audio-Technica product. Before using the product, read through this user manual to ensure that you will use the product correctly. Please keep this manual for future reference. Important information Warning: • To prevent fire or shock hazard, do not expose this apparatus to rain or moisture. - Page 4 Important information Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any of ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
-
Page 5: Notes On Use
Notes on use • Be sure to read the user manual for any microphone or cable that you attach to the product. • Disconnect the power cable from the outlet when this product is not in use. • Turn off the power of this product before connecting or disconnecting cables. •... -
Page 6: Part Names And Functions
Part names and functions ATW-R5220/ATW-R5220DAN Front panel ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❸ ❹ ❺ ❻ ❼ ❽ ❾ ❿ ❶ Power button ( Use to turn the receiver on or standby. : Symbol indicates standby.) ❷ IR sync window Use to IR SYNC with the transmitter (ATW-T5201, ATW-T5202). - Page 7 Part names and functions Rear panel The figure below is ATW-R5220. ❶ ❷ ❸❹ ❸ ❹ ❷ ❶ ❺ ❻ ❼ ❶ Antenna input jack : Symbol indicates direct current.) Each jack supplies DC12 V to a connected antenna. Additionally other compatible accessories (sold separately) can be connected.
-
Page 8: Atw-T5201
Use to turn the power on or off. ❾ Connect a microphone, a headworn microphone, a guitar cable, SYNC button etc. Use to IR SYNC with the receiver (ATW-R5220/ATW-R5220DAN). ❿ Battery cover Pin 4: +5 V output Pin 1: GND ⓫... -
Page 9: Atw-T5202
⓬ ⓭ ❶ ❾ Interchangeable microphone capsule SYNC button ❷ Use to IR SYNC with the receiver (ATW-R5220/ATW-R5220DAN). Display ❿ Power switch Shows the current status. If no buttons are pressed for a period of 30 seconds, the display Use to turn the power on or off. -
Page 10: How To Insert Batteries
How to insert batteries ATW-T5201 ATW-T5202 Slide the battery cover latches inward as shown by the arrows. Rotate the grip case of the battery compartment. Open the battery cover. • Put your finger on the hook of the battery cover and pull it to open the battery cover. -
Page 11: How To Attach And Detach The Interchangeable Microphone Capsule (Only For Atw-T5202)
How to attach and detach the interchangeable microphone capsule (only for ATW-T5202) How to attach Attach the microphone capsule to the body of the transmitter. Rotate the microphone capsule clockwise to tighten it. How to remove Rotate the microphone capsule counterclockwise to loosen it. Detach the microphone capsule from the body of the transmitter. -
Page 12: How To Read The Display
How to read the display ATW-R5220/ATW-R5220DAN Main screen ❶ ❷ ❸ ❹ ❺ ❻ VOCAL1 000.000 G r 06 C h 1 2 ❼ ❽ ❾ ❿ ⓫ ❶ ❼ Transmitter information display area Group indicator Information on the connected transmitter is displayed. Refer to ❽... - Page 13 How to read the display Level meter screen ❶ ❷ -74 dBm TX - RF PWR -40 -30 -24 -18 -15 -12 -10 -8 -6 -4 -2 0 +2 +4 +6 dBu ❸ ❹ ❺ ❻ ❶ ❹ RF transmission output indicator (transmitter) Audio output indicator (receiver) ❷...
-
Page 14: Atw-T5201/Atw-T5202
How to read the display ATW-T5201/ATW-T5202 The main screen is displayed when the power is switched on. If you press the UP/Down button on the main screen, the screen display is switched. ❶ ❻ ❼ ❽ 000.000 VOCAL1 02 Ch ❷... -
Page 15: How To Operate
Turn on the main power button of the receiver You can easily move to the setting screen that you can set the settings (ATW-R5220/ATW-R5220DAN). of the receiver with SYNC shortcut. Press and hold (for approximately 2 seconds) the control dial on the main screen. -
Page 16: Settings
Various settings can be made from the menu screen shown on the ATW-T5201/ATW-T5202 display. The transmitter's (ATW-T5201/ATW-T5202) UP/DOWN button operation is explained below. In this user manual, the text is indicated as the ATW-R5220/ATW-R5220DAN button operation. ATW-T5201: Slide to the UP/DOWN position. ATW-T5202: Press the UP/DOWN button. Press the control dial. -
Page 17: Setting Atw-R5220/Atw-R5220Dan
Setting ATW-R5220/ATW-R5220DAN List of setting items Setting the operating frequency FREQUENCY MANUAL Set the operating frequency. Manual setting Gr/Ch From the menu screen, turn the control dial, select NAME Set the channel name. [FREQUENCY] and then press the control dial. -
Page 18: Setting The Audio Output Level
Setting ATW-R5220/ATW-R5220DAN Selecting the group you want to scan: Setting the audio output level Confirm the scan result by selecting [OK] and then pressing the control dial. From the menu screen, turn the control dial, select [AUDIO] and • If you want to scan over again, select [Retry]. -
Page 19: Setting The Squelch Level
Setting ATW-R5220/TW-R5220DAN Setting the squelch level Setting the system-related functions Setting automatically Setting the lock From the menu screen, turn the control dial, select [SQUELCH] Set this function to prevent the receiver settings from being changed. and then press the control dial. - Page 20 Setting ATW-R5220/ATW-R5220DAN Setting group/channnel editing Setting the backup frequency mode Setting group/channel If you set the backup frequency in advance, you can switch the frequency of the transmitter and receiver with the transmitter. It is Groups/Channels 01 to 10 can be edited.
- Page 21 Setting ATW-R5220/ATW-R5220DAN Setting the AF level meter on the main screen Resetting Switch the AF level meter on the main screen between [Receiver (Rx)] This returns the receiver settings to their factory defaults. and [Transmitter (TX)]. From the menu screen, turn the control dial, select [UTILITIES] •...
-
Page 22: Setting Network
Setting ATW-R5220/ATW-R5220DAN Setting network Setting the log message Set whether to send the log message to the Syslog server. By connecting the receiver and PC, you can use the dedicated app for From the menu screen, turn the control dial, select [NETWORK] monitoring or controlling with the PC. -
Page 23: Using Test Mode
Setting ATW-R5220/TW-R5220DAN Setting MAC address Setting the DANTE's IP From the menu screen, turn the control dial, select [NETWORK] From the menu screen, turn the control dial, select [DANTE] and and then press the control dial. then press the control dial. -
Page 24: Settting Atw-T5201/Atw-T5202
Settting ATW-T5201/ATW-T5202 List of setting items Setting by group/channel From the menu screen, press the UP/DOWN button to select FREQUENCY MANUAL Set the transmission frequency. [FREQUENCY], and then press the SET button. Gr/Ch NAME Set the channel name. FREQUENCY GAIN Set the microphone input gain. -
Page 25: Setting The Gain
Settting ATW-T5201/ATW-T5202 Setting the gain Setting HPF (High-Pass Filter) From the menu screen, press the UP/DOWN button to select From the menu screen, press the UP/DOWN button to select [GAIN], and then press the SET button. [HPF], and then press the SET button. GAIN Press the UP/DOWN button to select the gain you wish to set. -
Page 26: Setting The Function
Settting ATW-T5201/ATW-T5202 Press the UP/DOWN button to select [On], and then press the Setting the function SET button. • Outputting a test signal starts. Setting the function for the function button • While outputting a test signal, a microphone input will be muted. Select the function to be performed when the function button is pressed and held From the menu screen, press the UP/DOWN button to select... - Page 27 Settting ATW-T5201/ATW-T5202 Setting the indicator Resetting The indicator LED can be turned [On] or [Off]. This returns the transmitter settings to their factory defaults. • The default setting is [On]. From the menu screen, press the UP/DOWN button to select [UTILITIES], and then press the SET button.
-
Page 28: How To Attach The Transmitter (Atw-T5201)
How to attach the transmitter (ATW-T5201) The ATW-T5201 transmitter is equipped with a clip that can be used to attach the transmitter to a belt, etc. You can reverse the direction of the input connector by Pull both sides of the clip firmly to the outside to remove attaching the clip in the opposite direction. -
Page 29: Using Ir Sync
Using IR SYNC This function allows you to make settings on the receiver that are specified for the transmitter. When IR SYNC is started as part of setting the receiver, the “Communication in standby” screen is displayed. Position the IR sync windows of the receiver and transmitter so they face each other. Press the SYNC button on the transmitter. -
Page 30: Troubleshooting
Troubleshooting ATW-R5220/ATW-R5220DAN Symptoms Causes and countermeasures Reference page The power can't be turned on. Confirm that the power cable is correctly connected. There is no voice output. The voice output level is low. Confirm that the transmitter/receiver channels are correct p. -
Page 31: Dimensions
Dimensions ATW-R5220/ATW-R5220DAN 400.0 482.0 (Unit: mm) -
Page 32: Atw-T5201
Dimensions ATW-T5201 64.0 (Unit: mm) ATW-T5202 193.0 (Unit: mm) -
Page 33: Specifications
Specifications Overall system specifications Operating frequencies Frequency range Number of frequencies ATW-R5220 Band DG1: 470.125 to 699.875 MHz 9,191 Band DF1: 470.125 to 607.875 MHz, 657.100 to 662.900 MHz 5,511+233 ATW-T5201/ATW-T5202 Band DE1: 470.125 to 590.000 MHz 4,796 Band EG1: 580.000 to 699.875 MHz... -
Page 34: Atw-T5202
Specifications ATW-T5202 RF output power High: 50 mW, Mid: 10 mW, Low: 2 mW (switchable), at 50 ohms Spurious emissions Following federal and national regulations Microphone capsule Interchangable industry standard thread High-pass (low-freq. roll-off) 80 Hz, 6dB/octave Batteries Two 1.5V AA, not included Battery life* High: 6.5 hoursm Mid: 8 hours, Low: 9.5 hours (alkaline) ATW-T5202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter... - Page 35 Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan www.audio-technica.com ©2018 Audio-Technica Corporation Global Support Contact: www.at-globalsupport.com 232417000-02-01 ver.1 2018.08.01...
