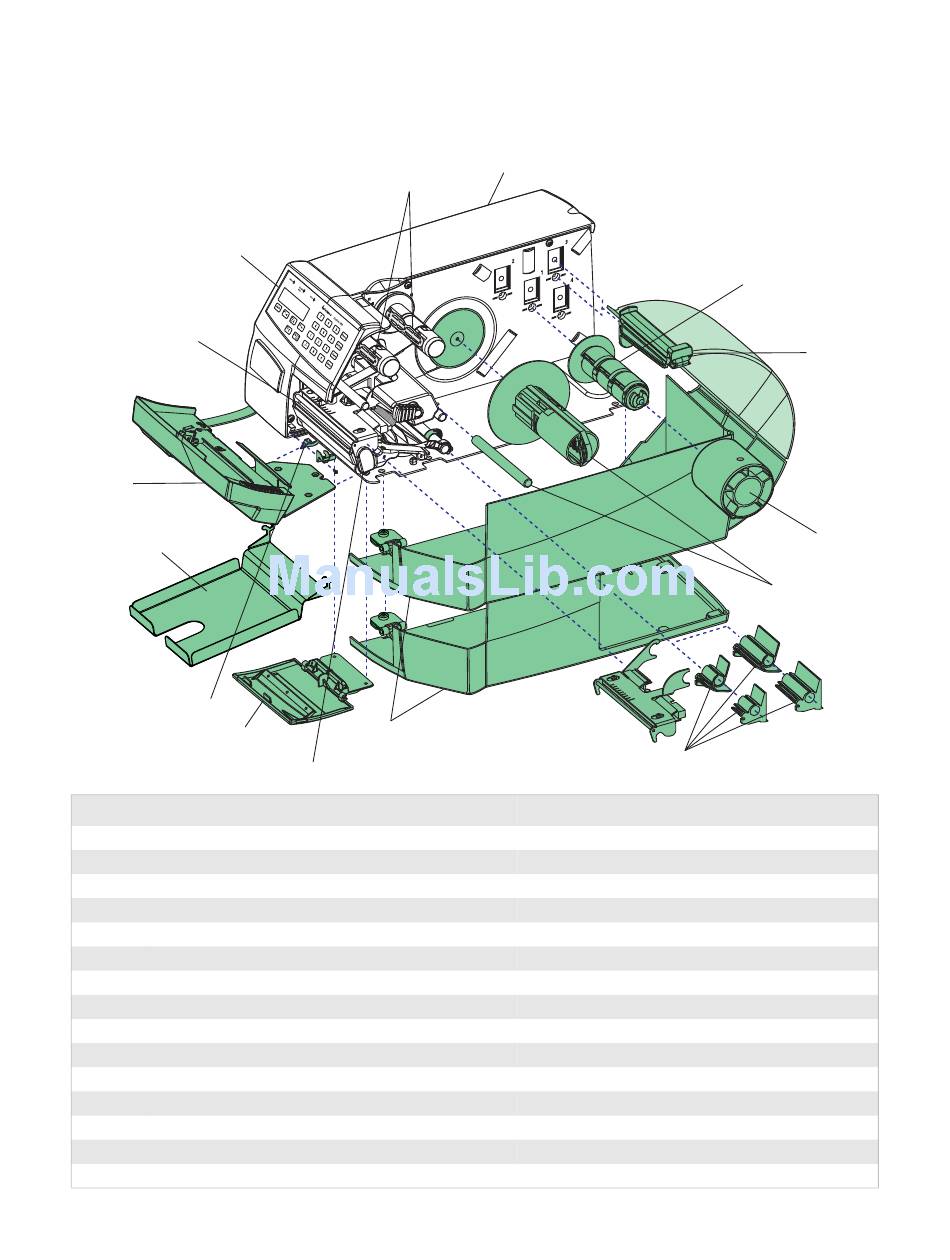

EasyCoder PF4i Compact Industrial, General View

14
13
12
11
10
9
Callout Description
1 Cover
2 Media supply hub (option)
3 Media supply roll post
4 3-inch adapter (option)
5 Liner takeup unit (option)
6 Quick-load guides
7 Doors (2 different types)
8 Chassis
9 Front door
10 Label taken sensor (option)
11 Paper cutter tray (option)
12 Paper cutter (option)
13 Print mechanism
14 Keyboard
15 Transfer ribbon mechanism
EasyCoder PF2i, PF4i, and PF4i Compact Industrial Printers Spare Parts Catalog
15
7
8
1
6
Remarks
See page 9
See page 31
See page 30
See page 32
See page 34
See page 27
See pages 25 and 27
See page 10
See page 26
See page 45
See page 35
See page 35
See pages 13, 14, and 15
See page 9
See pages 18, 20, and 21
Chapter 1 — Introduction
