Easycoder Pf2I, General View - Intermec EasyCoder PF2i Spare Parts

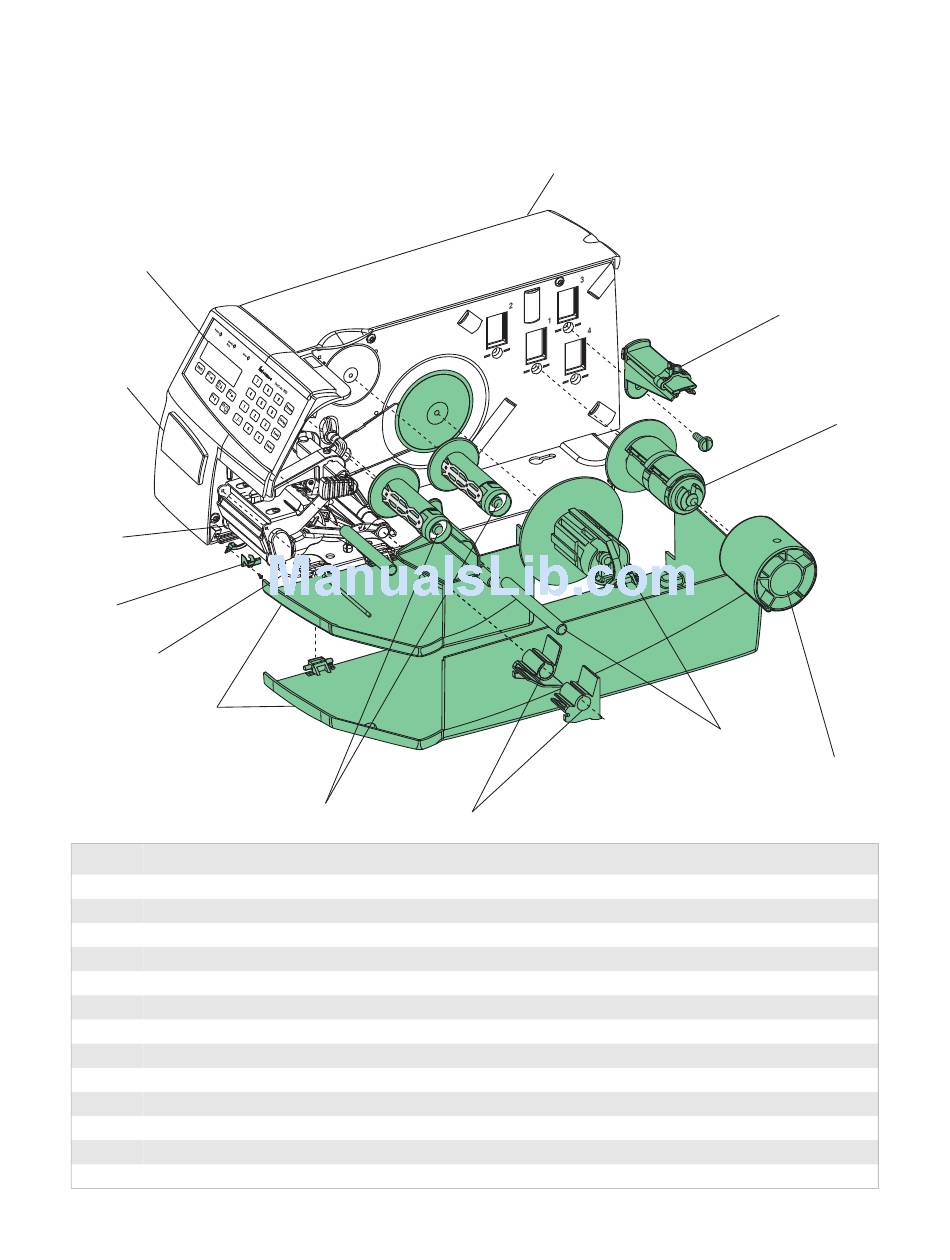

EasyCoder PF2i, General View

13
12
11
10
9
8
Callout Description
1 Cover
2 Media supply roll post
3 Media supply hub (option)
4 3-inch adapter (option)
5 Liner takeup unit (option)
6 Quick-load guides
7 Transfer ribbon mechanism (option)
8 Side doors
9 Chassis
10 Label taken sensor (option)
11 Print mechanism
12 Print button
13 Keyboard
EasyCoder PF2i, PF4i, and PF4i Compact Industrial Printers Spare Parts Catalog
7
6
Chapter 1 — Introduction
1
Remarks
See page 8
See page 29
See page 31
See page 32
See page 33
See page 27
See pages 16, 18, and 20
See page 22
See page 10
See page 45
See pages 11 and 14
See page 26
See page 8
2
3
5
4
3
