Controlling the

Cutter

Hinges

Front Cover

(open)

Intermec EasyCoder 301 Paper Cutter– Installation Instructions Ed. 1

The cutter is activated by CUT or CUT ON instructions in the

EasyCoder 301 Direct Protocol.

The following values are recommended for cutting between

labels and for variable length strip. In both cases, the start

adjustment is calculated to allow the paper web be pulled back

after cutting, so printing can start directly at the forward edge.

Labels:

Start adjust .................................... :

Stop adjust .................................... :

S tr i p :

Start adjust .................................... :

Stop adjust .................................... :

• Turn off the main switch and remove the power cord and

interface cable.

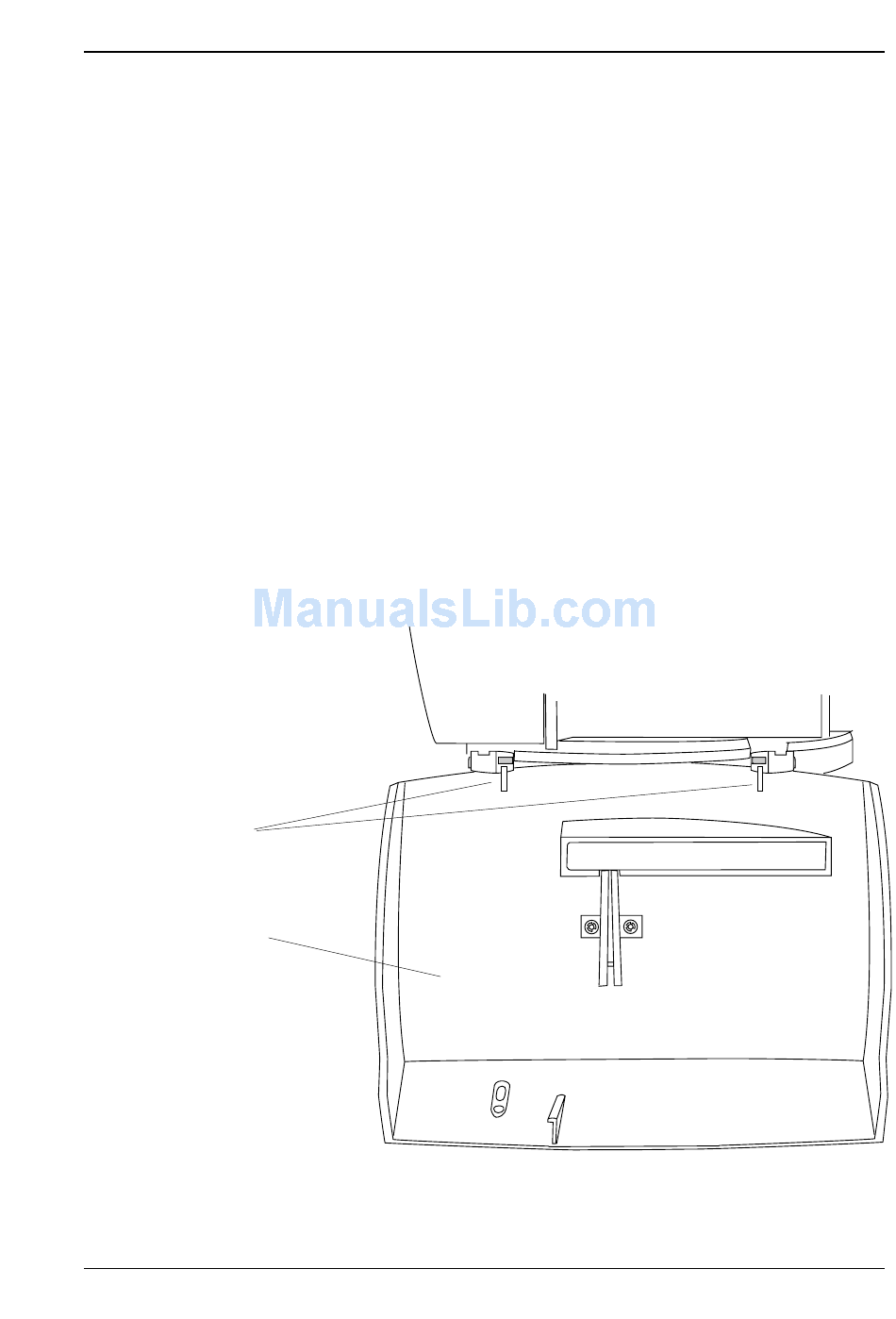

• Open the printer's front cover

• Turn the printer upside down and use a piercer to pry out the

two L-shaped hinge pins that hold the front cover.

• Remove the front cover completely.

Paper Cutter

-250

+100

-250

+180
