Intermec EasyCoder 301 Accessory Installation Manual page 4

Installation,
cont'd.
Intermec EasyCoder 301 Paper Cutter– Installation Instructions Ed. 1

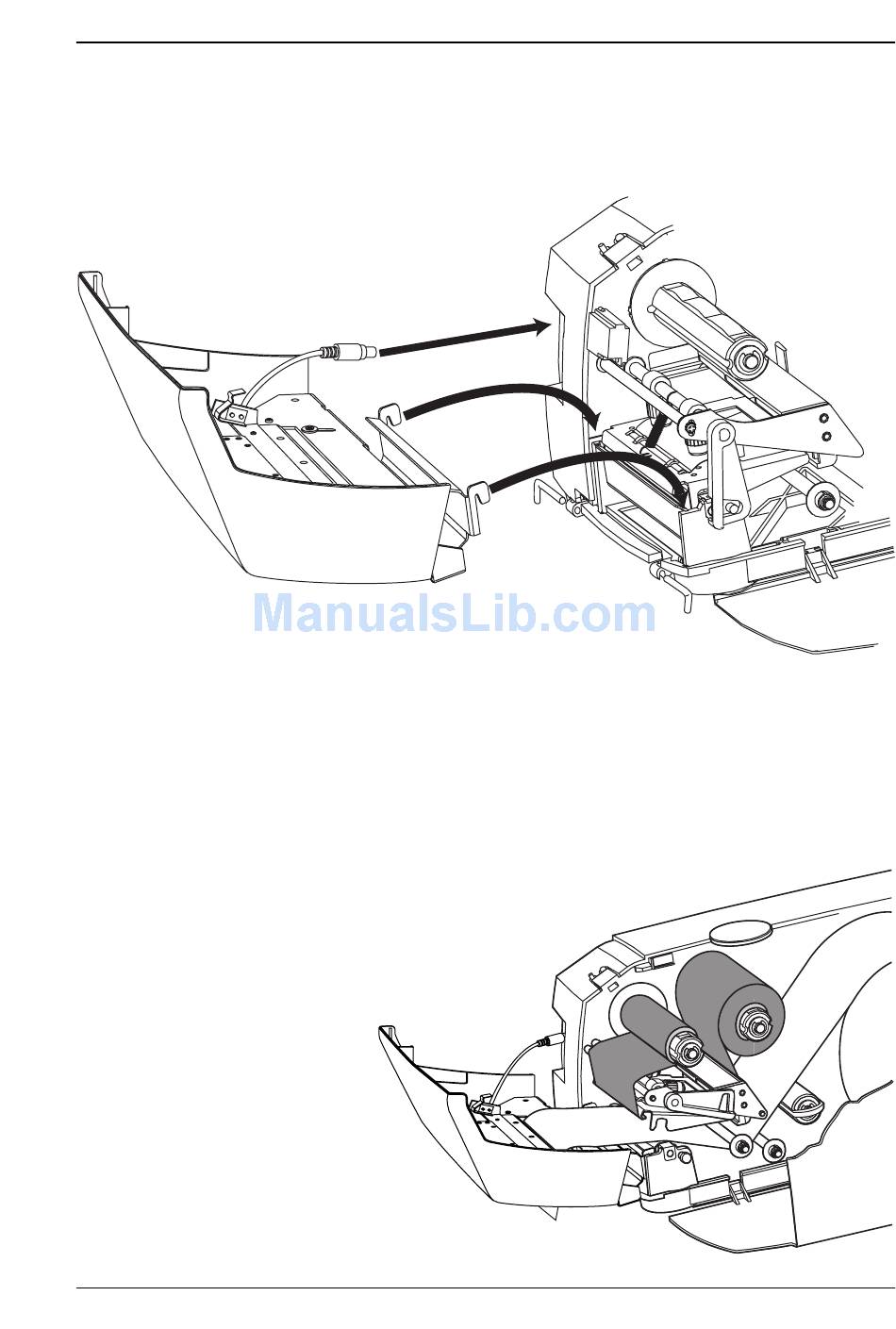

• Fit the two hooks at the rear of the cutter unit on either side
of the tear off edge and press down firmly.
• The holes in the tabs at the bottom of the cutter unit should be
aligned with the hinges on the bottom moulding.
• Insert the hinge pins as shown above.
• Connect the cable from the cutter to the upper (circular) one
of the two connectors on the printer's front.
• Thread the paper through the slot in the cutter.
• Close the cutter, connect the interface cable and power cord
and, finally, turn on the power.
Paper Cutter
3
