Description

EasyCoder 301 Paper Cutter

Installation Instructions

Edition 1, April 1999

Part No. 1-960457-00

Intermec EasyCoder 301 Paper Cutter– Installation Instructions Ed. 1

The EasyCoder 301 can easily be fitted with an optional Paper

Cutter. The cutter unit is fitted on the same hinges as the front

door, which it replaces, and is connected by a single cable to the

upper-most connector on the printer's front.

The paper cutter is available as a field-installable upgrading kit

only.

The paper cutter is intended to cut through continuous non-

adhesive paper strip or through the backing paper between

labels. It must not be used to cut through any kind of adhesive

or other soft material, that may stick to the cutting parts and

render the cutter inoperable, which may damage the electric

motor.

Allowed paper thickness is 60 m – 175 m ( 60 – 175 grammes/

) for normal paper-based materials.

Minimum practical copy length is 38.1 mm (1.5").

The Paper Cutter increases the printer's total weight to approx.

5.6 kgs (= 15 lbs) and its length to 396 mm (15,6").

The Paper Cutter can be tilted forward in order to facilitate

cleaning and paper load. A microswitch prevents unintentional

cutting operations when the cutter is tilted forward.

The printer's built-in label-taken sensor does not work in con-

nection with a cutter.

Note!

The cutter will return to home position when the power is turned on and when

the printer is rebooted. During firmware update, the cutter will perform

repeated cutting operations. It is therefore recommended to disconnect the

cutter's cable from the printer's front before the printer's firmware is updated.

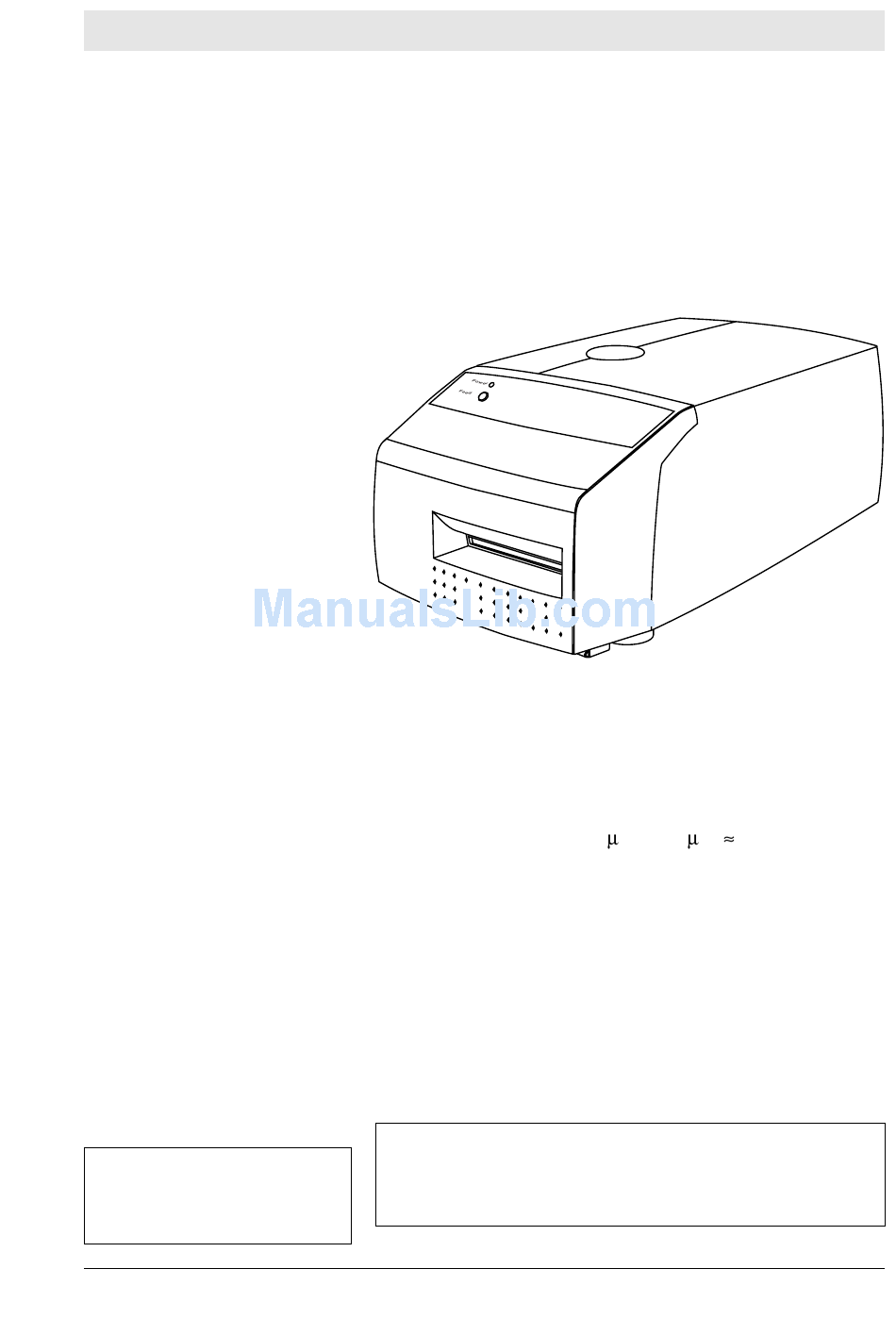

Paper Cutter
