13
CONFECTION AND INSTALLATION

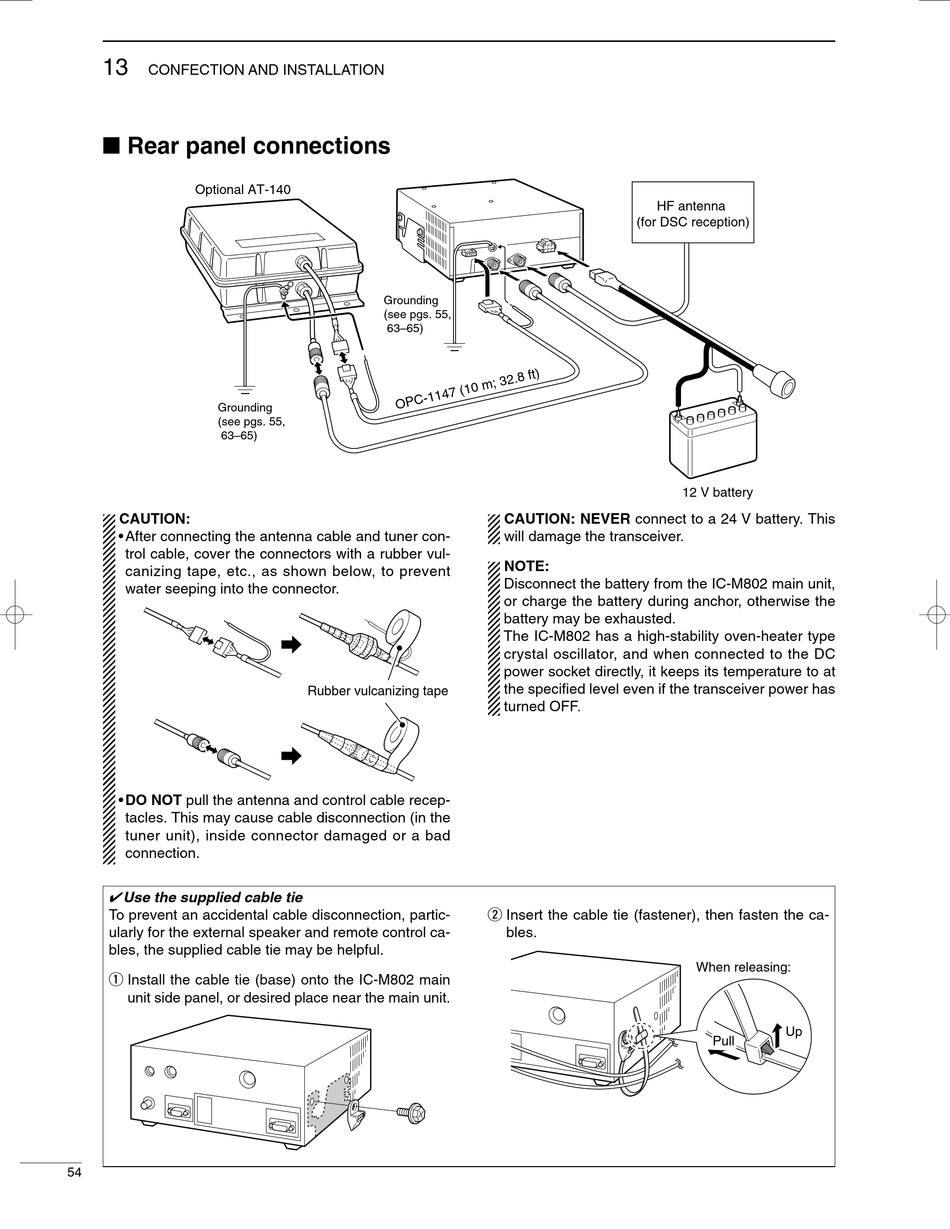

I Rear panel connections

Optional AT-140
Grounding
(see pgs. 55,
63–65)
CAUTION:
• After connecting the antenna cable and tuner con-
trol cable, cover the connectors with a rubber vul-
canizing tape, etc., as shown below, to prevent
water seeping into the connector.
• DO NOT pull the antenna and control cable recep-
tacles. This may cause cable disconnection (in the
tuner unit), inside connector damaged or a bad
connection.
✔ Use the supplied cable tie
To prevent an accidental cable disconnection, partic-
ularly for the external speaker and remote control ca-
bles, the supplied cable tie may be helpful.
q Install the cable tie (base) onto the IC-M802 main
unit side panel, or desired place near the main unit.
54
Grounding
(see pgs. 55,
63–65)
Rubber vulcanizing tape
(for DSC reception)
CAUTION: NEVER connect to a 24 V battery. This
will damage the transceiver.
NOTE:
Disconnect the battery from the IC-M802 main unit,
or charge the battery during anchor, otherwise the
battery may be exhausted.
The IC-M802 has a high-stability oven-heater type
crystal oscillator, and when connected to the DC
power socket directly, it keeps its temperature to at
the specified level even if the transceiver power has
turned OFF.
w Insert the cable tie (fastener), then fasten the ca-
bles.
HF antenna
12 V battery
When releasing:
Up
Pull
