I Repeater operation

1. Setting duplex
Push desired band's [MAIN•BAND] to select the main band.
Push [DUP•MONI] once or twice to select minus duplex or
plus duplex.
• The USA version has an auto repeater function, therefore, setting
duplex is not required.
Push [DUP•MONI].
2. Repeater tone
Push [TONE•DTMF] several times until "T" appears, if the re-
peater requires a subaudible tone to be accessed.
Push [TONE•DTMF].
MAIN DUP
T X
DUP T
MAIN
T X
QUICK REFERENCE GUIDE

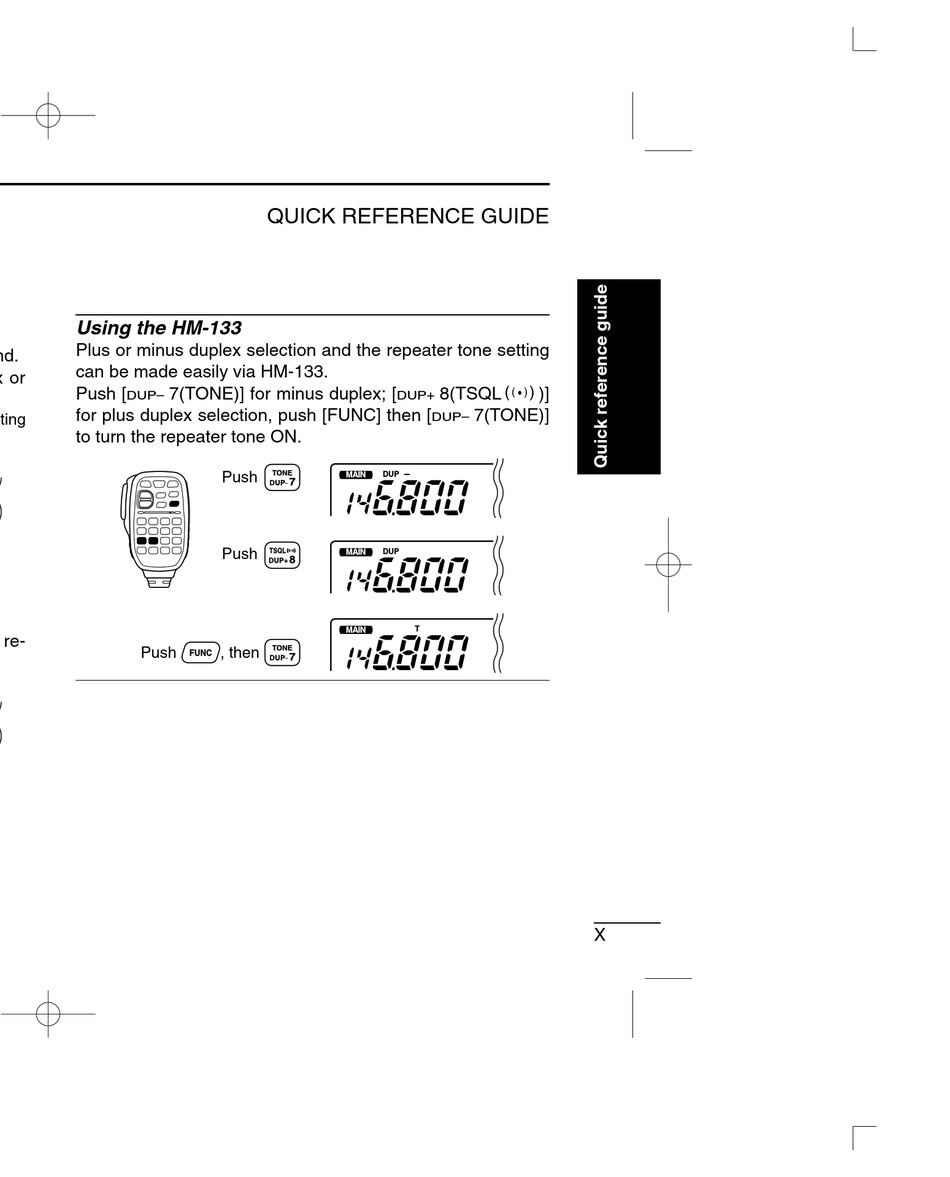

Using the HM-133
Plus or minus duplex selection and the repeater tone setting
can be made easily via HM-133.
Push [ 7(TONE)] for minus duplex; [
–
DUP
for plus duplex selection, push [FUNC] then [
to turn the repeater tone ON.
Push
Push
Push , then
8(TSQLS)]
+
DUP
7(TONE)]
–
DUP
DUP
MAIN
T X
DUP
MAIN
T X
T
MAIN
T X
X
