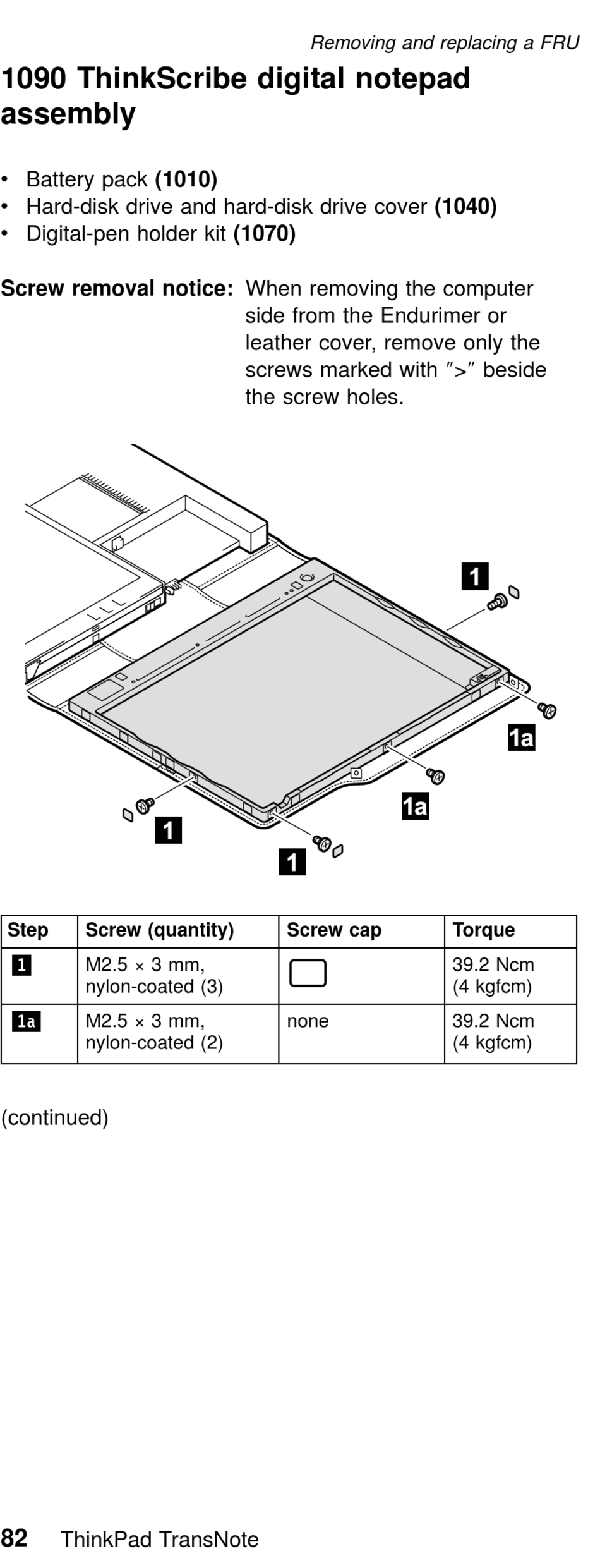

1090 ThinkScribe digital notepad
assembly
v Battery pack (1010)
v Hard-disk drive and hard-disk drive cover (1040)
v Digital-pen holder kit (1070)
Screw removal notice: When removing the computer
Step Screw (quantity)
1
M2.5 × 3 mm,
nylon-coated (3)
1a
M2.5 × 3 mm,
nylon-coated (2)
(continued)
82
ThinkPad TransNote
Removing and replacing a FRU
side from the Endurimer or
leather cover, remove only the
screws marked with ">" beside
the screw holes.
Screw cap
none
Torque
39.2 Ncm
(4 kgfcm)
39.2 Ncm
(4 kgfcm)
