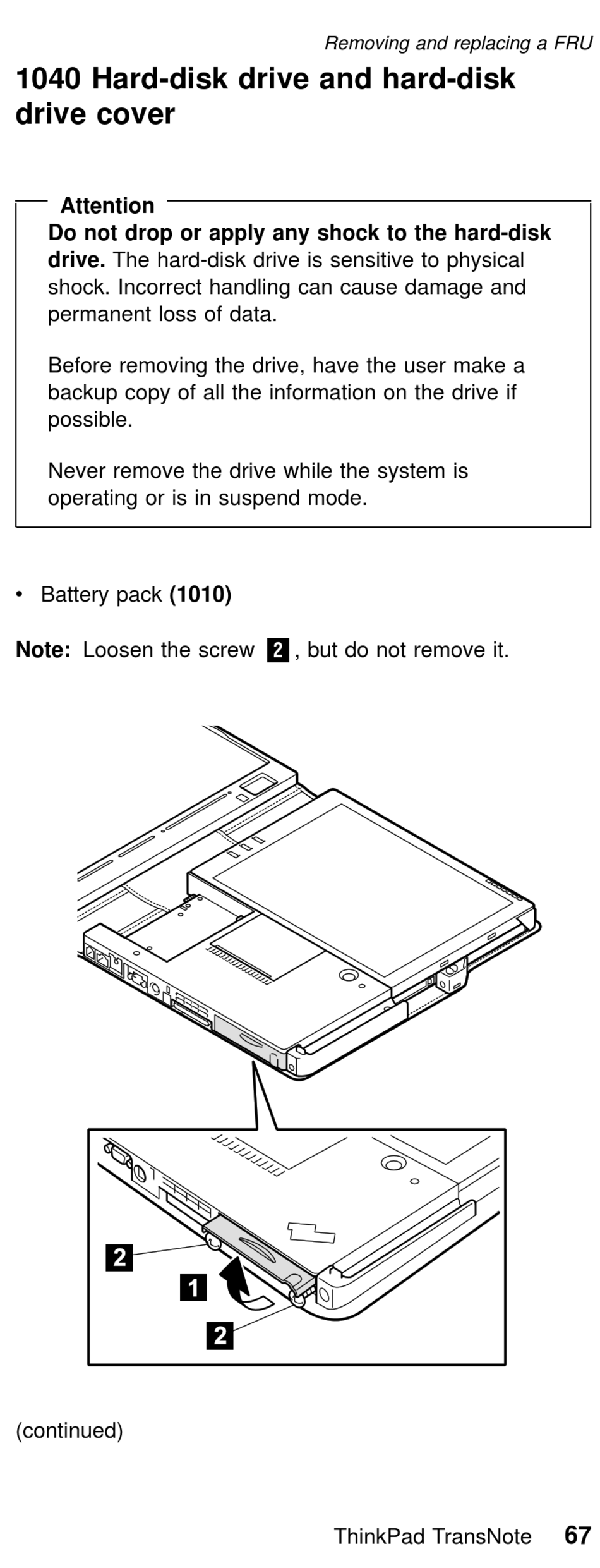

1040 Hard-Disk Drive And Hard-Disk Drive Cover - IBM TransNote Hardware Maintenance Manual

1040 Hard-disk drive and hard-disk
drive cover
Attention
Do not drop or apply any shock to the hard-disk
drive. The hard-disk drive is sensitive to physical
shock. Incorrect handling can cause damage and
permanent loss of data.
Before removing the drive, have the user make a
backup copy of all the information on the drive if
possible.
Never remove the drive while the system is
operating or is in suspend mode.
v Battery pack (1010)
Note: Loosen the screw 2 , but do not remove it.
(continued)
Removing and replacing a FRU
ThinkPad TransNote
67
