Product Overview; Specifications - IBM TransNote Hardware Maintenance Manual

Product overview

This section presents the following product-unique
information:
v "Specifications"
v "Status indicators" on page 36
v "FRU tests" on page 38
v "Fn key combinations" on page 39

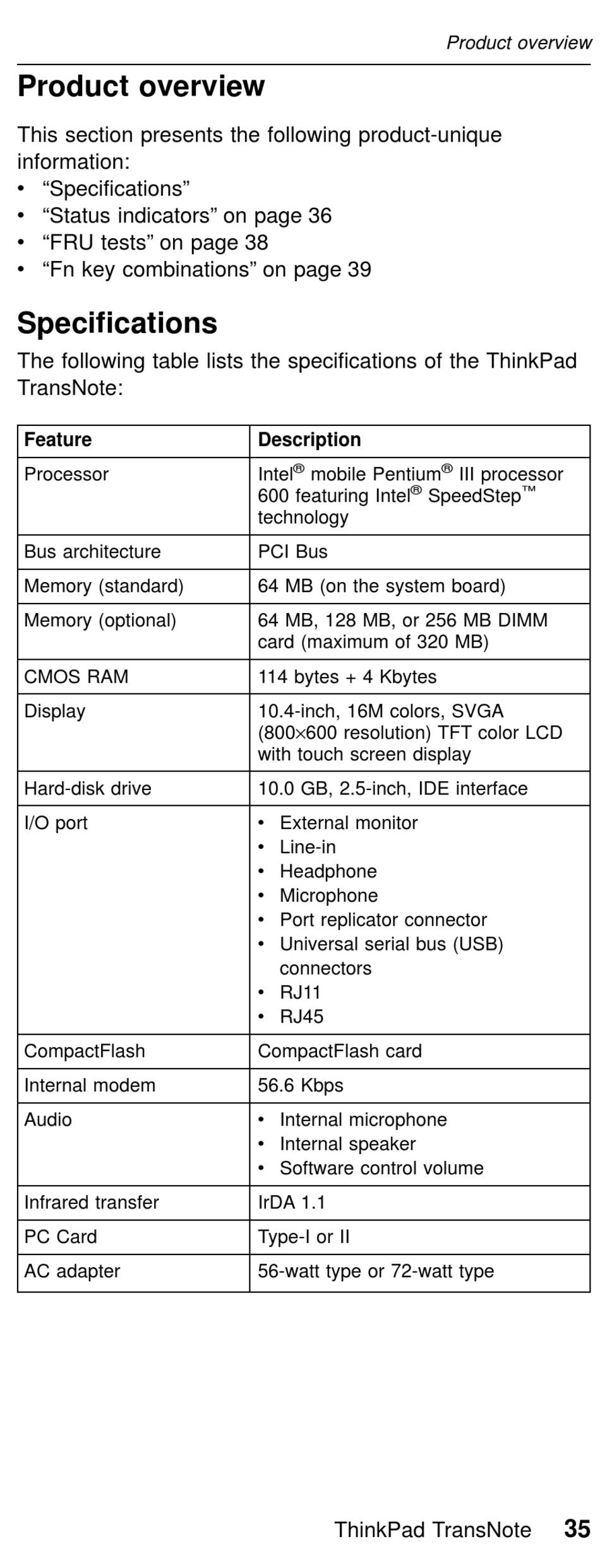

Specifications

The following table lists the specifications of the ThinkPad
TransNote:
Feature
Processor
Bus architecture
Memory (standard)
Memory (optional)
CMOS RAM
Display
Hard-disk drive
I/O port
CompactFlash
Internal modem
Audio
Infrared transfer
PC Card
AC adapter
Description
®
Intel mobile Pentium
600 featuring Intel
technology
PCI Bus
64 MB (on the system board)
64 MB, 128 MB, or 256 MB DIMM
card (maximum of 320 MB)
114 bytes + 4 Kbytes
10.4-inch, 16M colors, SVGA
(800 600 resolution) TFT color LCD
with touch screen display
10.0 GB, 2.5-inch, IDE interface
v External monitor
v Line-in
v Headphone
v Microphone
v Port replicator connector
v Universal serial bus (USB)
connectors
v RJ11
v RJ45
CompactFlash card
56.6 Kbps
v Internal microphone
v Internal speaker
v Software control volume
IrDA 1.1
Type-I or II
56-watt type or 72-watt type
ThinkPad TransNote

Product overview

®
III processor
® ™
SpeedStep
35
