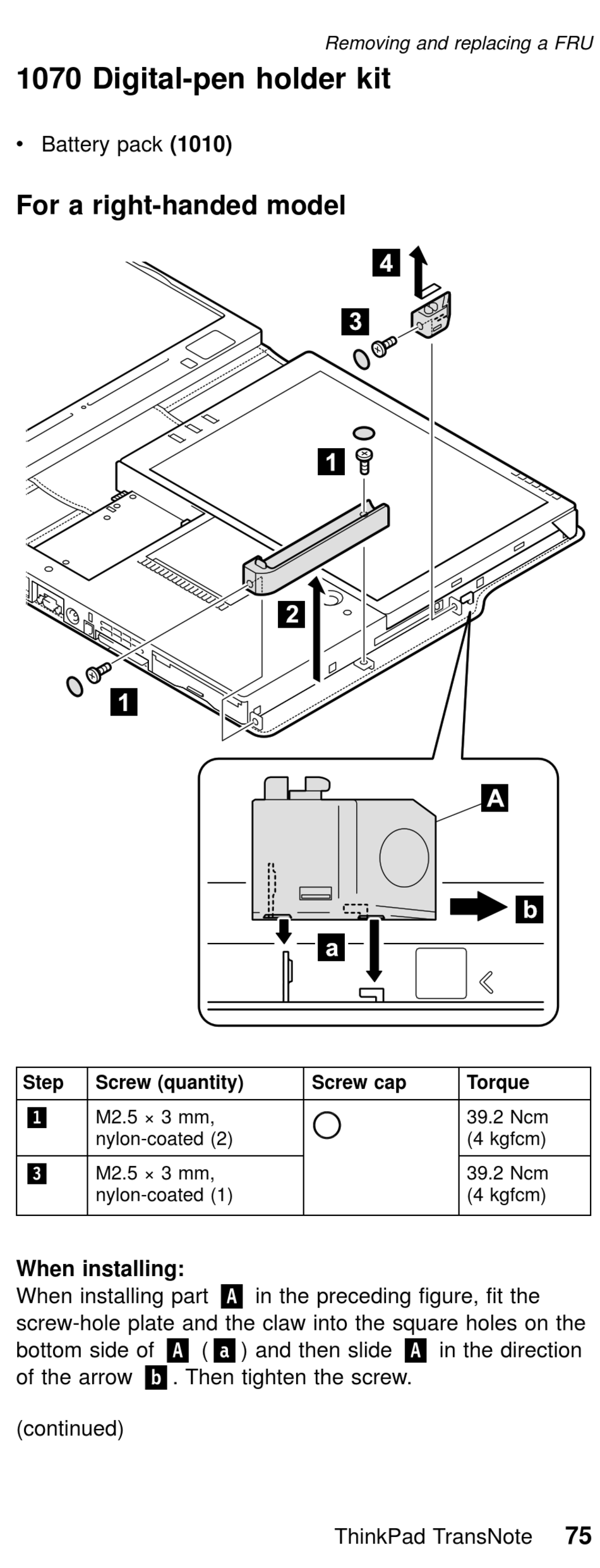

1070 Digital-Pen Holder Kit; For A Right-Handed Model - IBM TransNote Hardware Maintenance Manual

1070 Digital-pen holder kit

v Battery pack (1010)

For a right-handed model

Step Screw (quantity)
1
M2.5 × 3 mm,
nylon-coated (2)
3
M2.5 × 3 mm,
nylon-coated (1)
When installing:
When installing part A in the preceding figure, fit the
screw-hole plate and the claw into the square holes on the
bottom side of A ( a ) and then slide A in the direction
of the arrow b . Then tighten the screw.
(continued)
Removing and replacing a FRU
Screw cap
ThinkPad TransNote
Torque
39.2 Ncm
(4 kgfcm)
39.2 Ncm
(4 kgfcm)
