Chart/Chart Combo View
Chart/Chart Combo View shows two versions of the Chart view in a
combination split screen, so that you can see the position of the boat on one
side while you zoom in or perform other functions on the other. You can
perform any of the functions for the Chart view, but only on the side of the
view you have selected as the active side (see Navigation X-Press™ Menu:
Active Side for more information). A green arrow points to the side that is
active. You can also adjust the size of the left side of a split screen (see
Navigation X-Press™ Menu: Split Position for more information).
NOTE: See Chart Views for more information about each side of this view.
NOTE: Standard Chart View, Chart No Readouts View, Chart/Chart Combo View,
and Chart/Bird's Eye Combo View all share the same set of 5 selectable readouts,
that can all be set one way for navigation mode, and another way for non-
navigation mode. When you change the readouts display on one of these views,
you also are changing them on all the other views that share the same
configuration. See Navigation X-Press™ menu: Select Readouts and Select
Nav Readouts for more information.
5:03 PM
Page 24
24
Chart/Chart Combo View
8
1
10
2
9
3
4
11
5
12
6
7

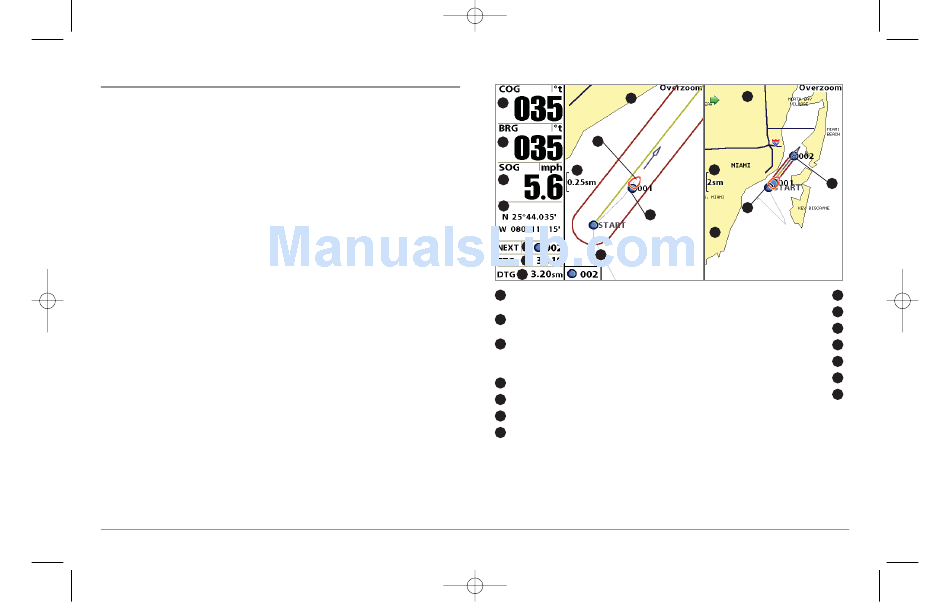

COG: Course Over Ground; the current direction the boat is
1
traveling measured in degrees from North.
BRG: Direction to Destination Waypoint Relative to North
2
Reference Waypoint
SOG: Speed Over Ground; the measurement of the boat's
3
progress across a given distance, and is the speed
measurement provided by GPS.
Latitude and Longitude Position of Boat
4
NEXT: Next Waypoint in the Route
5
TTG: Time to Go to Waypoint
6
DTG: Distance to Go to Waypoint
7
14
9
11
10
13
Chart Window 1
8
Map Scale
9
Boat Icon
10
Waypoint
11
Track
12
Cartography
13
Chart Window 2
14
