Section 8 - Exhaust Fan - Rimage Allegro 20 Service Manual

Allegro 20 Disc Publishing System Service Manual
7.5
Place drive into unit and plug both cables into back. Replace fan bracket. Replace 4 screws and
washers from top of unit, leaving screws slightly loose.

Section 8 - Exhaust Fan

8.1

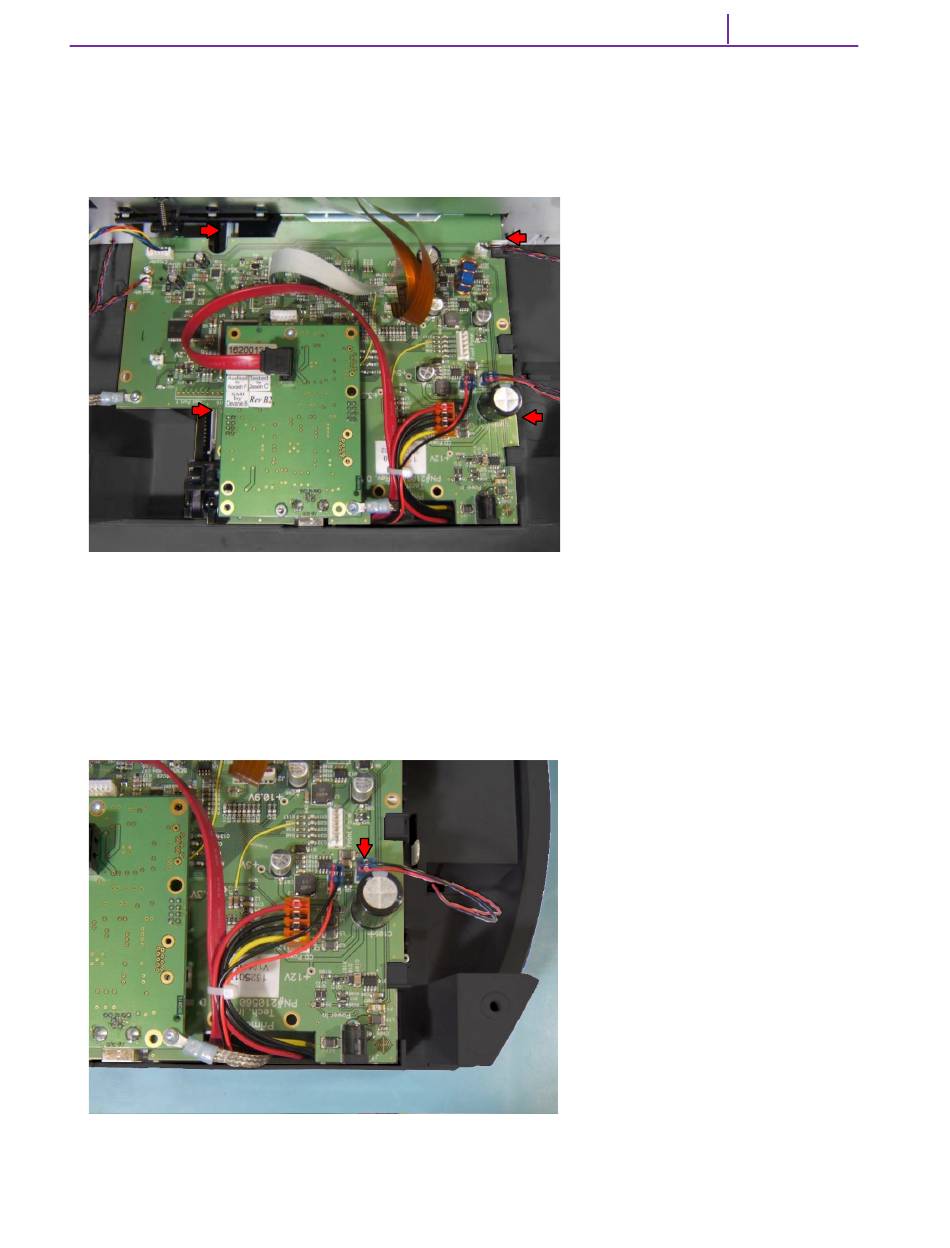

Unplug exhaust fan cable from mainboard.
Rimage Corporation Page 12
