Allegro 20 Disc Publishing System
Service Manual
12.6

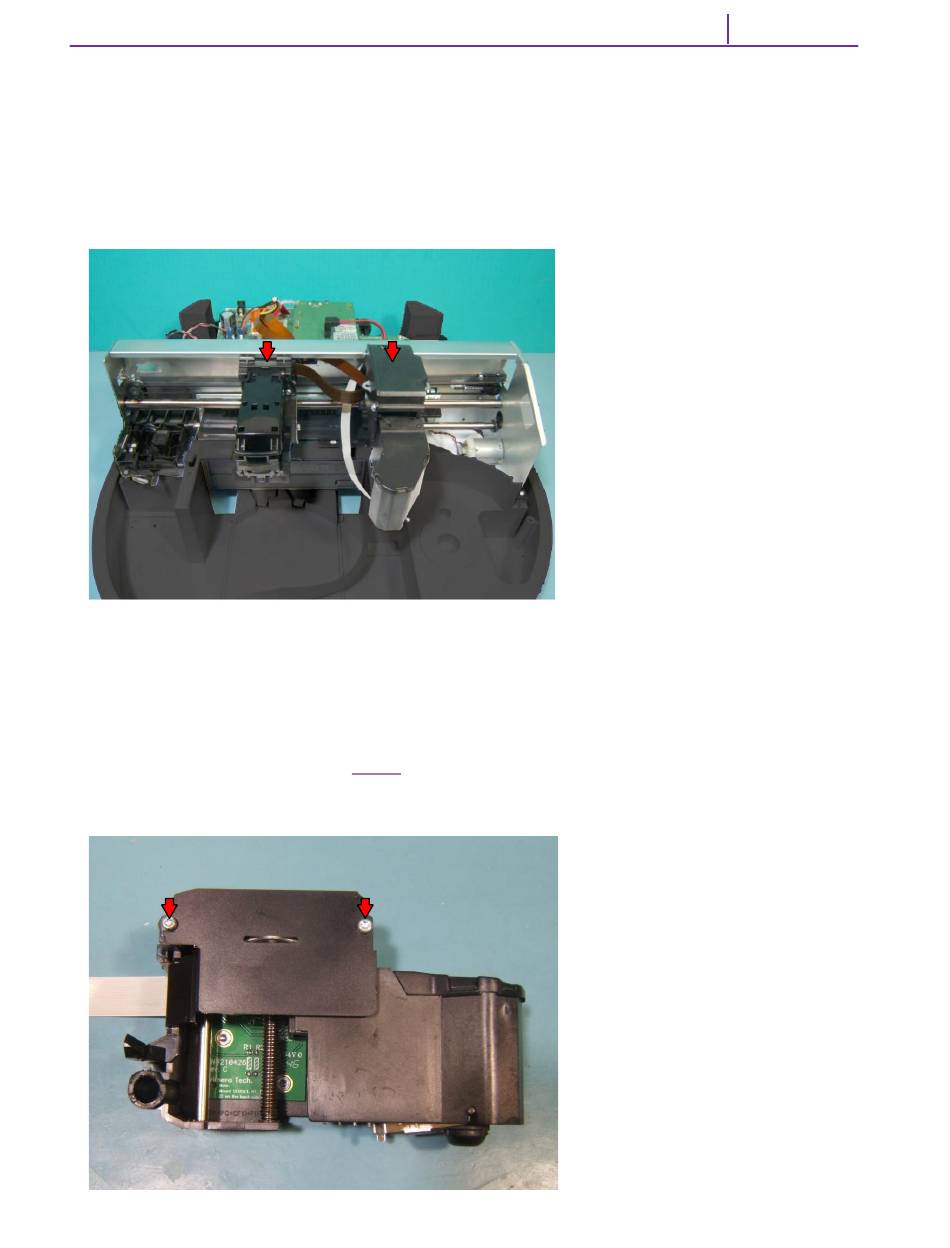

When replacing picker, be sure picker and carrier are properly captured on top edge of carrier
frame. Press carrier shaft back into frame, tightening both screws at the same time to prevent it
from spinning. Route flex cable back through slot and plug into mainboard. Be sure flex cable is
parallel with frame before securing to double-sided tape. Pull encoder strip back into sensor
slot on back of carrier.
Section 13 - Picker Arm
13.1
Remove picker from carrier (see Picker). Remove 2 screws securing side picker cover. Remove
cover.
