Section 14 - Lead Screw - Rimage Allegro 20 Service Manual

Allegro 20 Disc Publishing System Service Manual
13.4

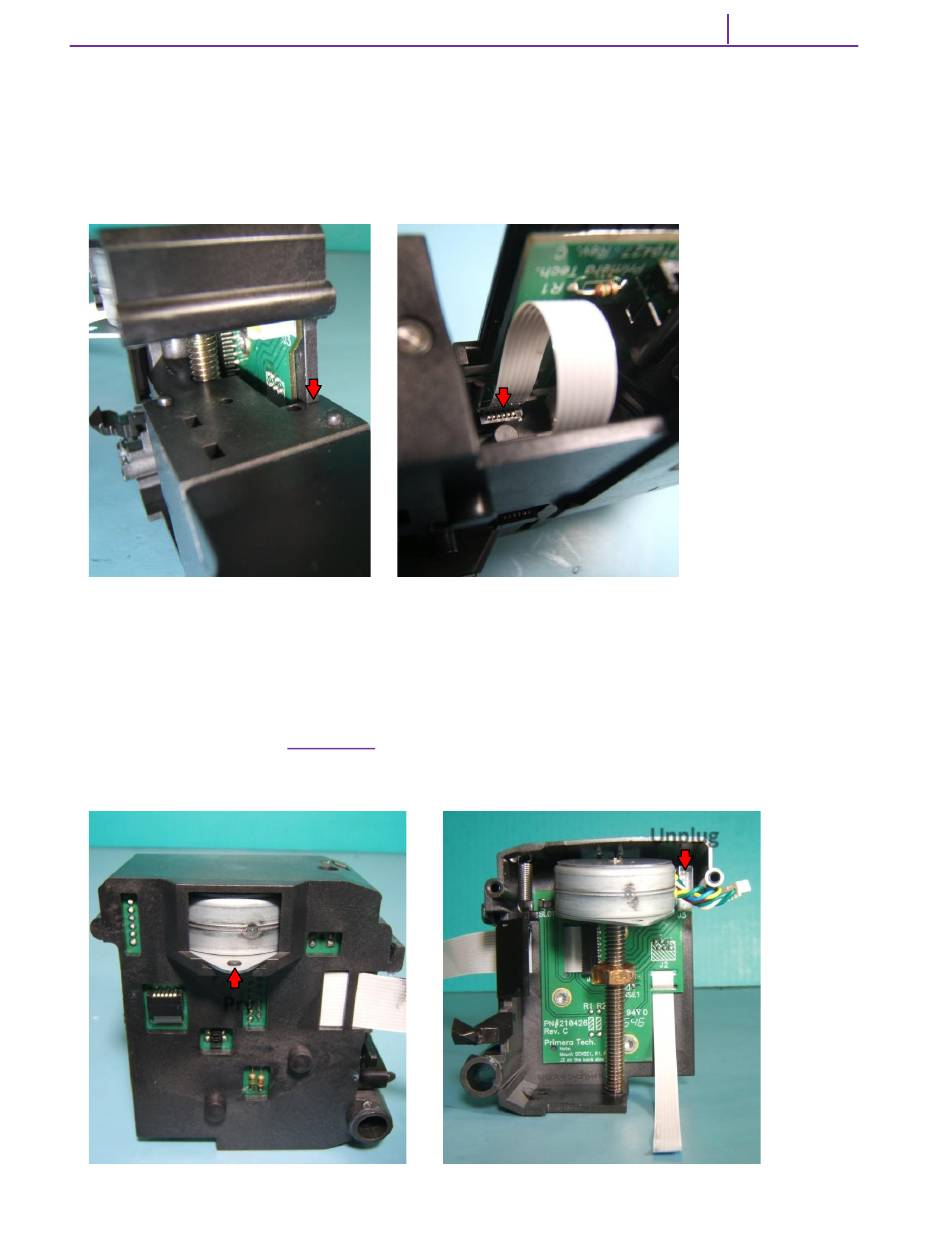

When attaching picker arm back onto picker, be sure edge of disc picker frame is captured by
slot on picker arm (left pic). Replace shaft and retaining ring. Plug flex cable back into picker
arm.

Section 14 - Lead Screw

14.1
Remove picker arm (see Picker Arm). Pry corner of motor up off of tab on back side of picker
frame. Unplug motor from board. Pull lead screw assembly out of picker frame.
Unplug
Pry
