- Page 1 User’s Guide PM7510-R0 XGS-PON Bridge ONT with 10G LAN Default Login Details Version 1.00 Edition 1, 7/2022 IP Address https:\\192.168.0.1 User Name admin Password See the device label Copyright © 2022 Zyxel and/or its affiliates. All Rights Reserved.
- Page 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate.
-
Page 3: Document Conventions
Document Conventions Document Conventions Warnings and Notes These are how warnings and notes are shown in this guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. -
Page 4: Table Of Contents
Table of Contents Table of Contents Document Conventions ........................3 Table of Contents ..........................4 Part I: User’s Guide.................... 7 Chapter 1 Introduction ............................8 1.1 Overview ............................8 1.1.1 Network Bridge ........................8 1.1.2 Internet Access ........................8 1.1.3 Multi-Gigabit ..........................8 1.2 Managing the Zyxel Device ...................... - Page 5 Table of Contents 4.2 LAN Setup ............................19 Chapter 5 Log...............................21 5.1 Overview ............................21 5.1.1 What You Need To Know ..................... 21 5.2 Log ..............................22 Chapter 6 Traffic Status ............................23 6.1 Overview ............................23 6.1.1 What You Can Do in this Chapter ..................23 6.2 WAN Status ............................
- Page 6 Table of Contents Part III: Appendices ..................36 Appendix A Wall Mounting ......................37 Appendix B Legal Information ......................40 Appendix C Safety Warnings ......................41 PM7510-R0 User’s Guide...
-
Page 7: Part I: User's Guide
User’s Guide... -
Page 8: Chapter 1 Introduction

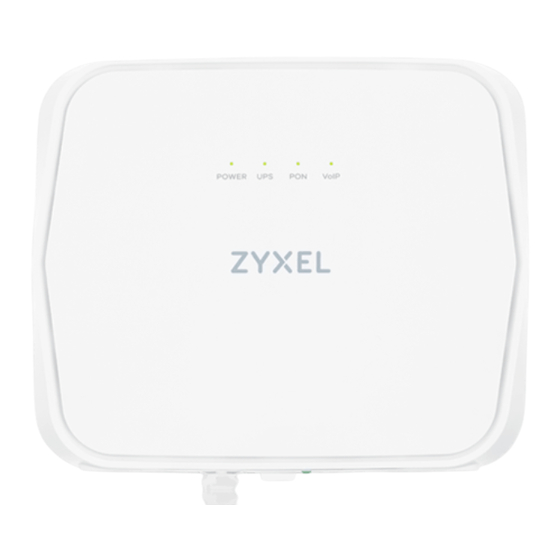

H A P T E R Introduction 1.1 Overview The PM7516-R0 is a Symmetric Passive Optical Network (XGSPON) Bridge Optical Network Terminals (ONT) with one 10G Ethernet port. 1.1.1 Network Bridge The Ethernet port on the Zyxel Device acts as a bridge. You can connect a switch or router to it. In the example figure below, the service provider (OLT) uses one physical fiber line to provide service for the Ethernet port on the Zyxel Device. -
Page 9: Managing The Zyxel Device
Chapter 1 Introduction 1.2 Managing the Zyxel Device Use the Zyxel Device’s built-in Web Configurator to manage it. You can connect to it using a web browser. For details on connecting to it, see the Section 2.1.1 on page 1.3 Good Habits for Managing the Zyxel Device Do the following things regularly to make the Zyxel Device more secure and to manage the Zyxel Device more effectively. -
Page 10: Rear Panel
Chapter 1 Introduction Table 1 Front Panel LEDs (continued) COLOR STATUS DESCRIPTION Green The AC power is off and the UPS (battery backup) is providing power normally. Blinking The battery is working abnormally, such as the voltage going outside the expected range. -
Page 11: Ups Port
Chapter 1 Introduction 1.4.3 UPS Port You can connect a UPS to the UPS port to keep the Zyxel Device running in case the main power fails. The following diagram and chart show the pin assignments of the UPS port on the Zyxel Device. Note: The main power and UPS cannot be used at the same time. -
Page 12: The Web Configurator
H A P T E R The Web Configurator 2.1 Overview The Web Configurator HTML-based management interface allows easy system setup and management through an Internet browser such as Internet Explorer 11, Mozilla Firefox, or Google Chrome. In order to use the Web Configurator you need to allow: •... -
Page 13: Web Configurator Layout
Chapter 2 The Web Configurator Figure 7 System Info Screen 2.2 Web Configurator Layout Figure 8 Screen Layout As illustrated above, the main screen is divided into these parts: • A - Title bar: this shows the Zyxel logo and device model name. Click the logout icon to log out of the web configurator. -
Page 14: Navigation Panel
Chapter 2 The Web Configurator • C - Main window: this displays information and configuration fields. 2.2.1 Navigation Panel Use the menu items on the navigation panel to open the following status and configuration screens. Figure 9 Navigation Panel 2.2.1.1 Screens Use the menu items on the navigation panel to open status and configuration screens. - Page 15 Chapter 2 The Web Configurator Table 5 Screens Summary (continued) LINK FUNCTION Firmware Firmware Use this screen to upload firmware to your Zyxel Device. Upgrade Upgrade Reboot Reboot Use this screen to reboot the Zyxel Device without turning the power off. PM7510-R0 User’s Guide...
-
Page 16: Part Ii: Technical Reference
Technical Reference... -
Page 17: Chapter 3 System Information
H A P T E R System Information 3.1 System Info The Connection Status screen appears when you log into the Web Configurator or click Connection Status in the navigation panel. The System Info screen shows the current status of the Zyxel Device, its system status, and interfaces. - Page 18 Chapter 3 System Information Table 6 Connection Status > System Info (continued) LABEL DESCRIPTION IP Subnet Mask This is the current subnet mask in the LAN. System Status System Uptime This field displays how long the Zyxel Device has been running since it last started up. The Zyxel Device starts up when you plug it in and turn it ON, when you restart it (Maintenance >...
-
Page 19: Chapter 4 Lan
H A P T E R 4.1 Overview A Local Area Network (LAN) is a shared communication system to which many networking devices are connected. It is usually located in one immediate area such as a building or floor of a building. 4.2 LAN Setup A LAN IP address is the IP address of a networking device in the LAN. - Page 20 Chapter 4 LAN Table 7 Network Setting > LAN (continued) LABEL DESCRIPTION IGMP Snooping Select Enabled to enable IGMP snooping to forward group multicast traffic only to ports that are members of that group. Otherwise, select Disabled. Apply Click Apply to save your changes. Cancel Click Cancel to restore your previously saved settings.
-
Page 21: Chapter 5 Log
H A P T E R 5.1 Overview The Web Configurator allows you to choose which categories of events and/or alerts to have the Zyxel Device log and then display the logs or have the Zyxel Device send them to an administrator (as e-mail) or to a syslog server. -
Page 22: Log
Chapter 5 Log 5.2 Log Use the System Log screen to see the system logs. You can filter the entries by selecting a severity level and/or category. Click System Monitor > Log to open the System Log screen. Figure 12 System Monitor > Log The following table describes the fields on this screen. -
Page 23: Chapter 6 Traffic Status
H A P T E R Traffic Status 6.1 Overview Use the Traffic Status screens to look at network traffic statistics of the WAN and LAN interfaces. 6.1.1 What You Can Do in this Chapter • Use the WAN screen to view the WAN traffic statistics (Section 6.2 on page 23). -
Page 24: Lan Status
Chapter 6 Traffic Status Table 10 System Monitor > Traffic Status > WAN (continued) LABEL DESCRIPTION Data This indicates the number of received packets on this interface. Error This indicates the number of frames with errors received on this interface. Bytes This indicates the number of bytes received on this interface. - Page 25 Chapter 6 Traffic Status Table 11 System Monitor > Traffic Status > LAN (continued) LABEL DESCRIPTION Error This indicates the number of frames with errors transmitted on this interface. Drop This indicates the number of outgoing packets dropped on this interface. Received (Packet) Data This indicates the number of received packets on this interface.
-
Page 26: Chapter 7 User Account
H A P T E R User Account 7.1 Overview In the User Account screen, you can view the settings of the admin user account that you use to log in the Zyxel Device. 7.2 User Account Click Maintenance > User Account to open the following screen. Figure 15 Maintenance >... -
Page 27: Chapter 8 Time Setting
H A P T E R Time Setting 8.1 Time Setting To change your Zyxel Device’s time and date, click Maintenance > Time Setting. The screen appears as shown. Use this screen to configure the Zyxel Device’s time based on your local time zone. Figure 16 Maintenance >... - Page 28 Chapter 8 Time Setting Table 13 Maintenance > Time Setting (continued) LABEL DESCRIPTION Manual Select this radio button to enter the time and date manually. If you configure a new time and date, Time Zone and Daylight Saving at the same time, the new time and date you entered has priority and the Time Zone and Daylight Saving settings do not affect it.
-
Page 29: Chapter 9 Log Setting
H A P T E R Log Setting 9.1 Overview You can configure where the Zyxel Device sends logs and which logs and/or immediate alerts the Zyxel Device records in the Logs Setting screen. 9.2 Log Setting To change your Zyxel Device’s log settings, click Maintenance > Log Setting. The screen appears as shown. -
Page 30: Chapter 10 Firmware Upgrade
H A P T E R Firmware Upgrade 10.1 Overview This chapter explains how to upload new firmware to your Zyxel Device. You can download new firmware releases from your nearest Zyxel FTP site (or www.zyxel.com) to use to upgrade your device’s performance. - Page 31 Chapter 10 Firmware Upgrade After you see the firmware updating screen, wait a few minutes before logging into the Zyxel Device again. The Zyxel Device automatically restarts in this time causing a temporary network disconnect. In some operating systems, you may see the following icon on your desktop. Figure 19 Network Temporarily Disconnected After two minutes, log in again and check your new firmware version in the System Info screen.
-
Page 32: Chapter 11 Reboot
H A P T E R Reboot 11.1 Reboot System restart allows you to reboot the Zyxel Device remotely without turning the power off. You may need to do this if the Zyxel Device hangs, for example. Click Maintenance > Reboot. Click Reboot to have the Zyxel Device reboot. This does not affect the Zyxel Device's configuration. -
Page 33: Chapter 12 Troubleshooting
H A P T E R Troubleshooting This chapter offers some suggestions to solve problems you might encounter. The potential problems are divided into the following categories. • Power, Hardware Connections, and LEDs • Zyxel Device Access and Login • Internet Access 12.1 Power, Hardware Connections, and LEDs The Zyxel Device does not turn on. -
Page 34: Zyxel Device Access And Login
Chapter 12 Troubleshooting 12.2 Zyxel Device Access and Login I forgot the IP address for the Zyxel Device. The default LAN IP address is https://192.168.0.1. I forgot the password. See the cover page and device label for the default login name and associated password. If those do not work, you have to reset the device to its factory defaults. -
Page 35: Internet Access
Chapter 12 Troubleshooting Turn the Zyxel Device off and on. If this does not work, you have to reset the device to its factory defaults. See Section 12.1 on page 12.3 Internet Access I cannot access the Internet. Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick Start Guide and Section 1.4.1 on page The PON LED is off if the optical transceiver has malfunctioned or the fiber cable is not connected or is... -
Page 36: Part Iii: Appendices
Appendices Appendices contain general information. Some information may not apply to your device. -
Page 37: Appendix A Wall Mounting
P P E N D I X Wall Mounting Follow the steps below to mount your Zyxel Device on a wall. Use screws and anchors of the size as shown below. Figure 21 Screws and Anchors Size Drill two holes in the wall with their centers either 85.5 mm or 60.0 mm apart. Figure 22 Drill Holes (85.5 mm Apart) PM7510-R0 User’s Guide... - Page 38 Appendix A Wall Mounting Figure 23 Drill Holes (60.0 mm Apart) PM7510-R0 User’s Guide...
- Page 39 Appendix A Wall Mounting Insert screw anchors and screws (not provided) into the holes. Figure 24 Insert Screw Anchors and Screws Place the Zyxel Device so the wall mount holes line up with the screws. Slide the Zyxel Device down gently to fix it into place.
-
Page 40: Appendix B Legal Information
The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of Zyxel Communications Corporation. Published by Zyxel Communications Corporation. All rights reserved. -
Page 41: Appendix C Safety Warnings
Appendix C Safety Warnings P P E N D I X Safety Warnings • Do not obstruct the device ventilation slots as insufficient airflow may harm your device. • Do not use this product near water, for example, in a wet basement or near a swimming pool. •...
