ZyXEL Communications Prestige 782M User Manual

G.shdsl bridge
Hide thumbs Also See for Prestige 782M:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

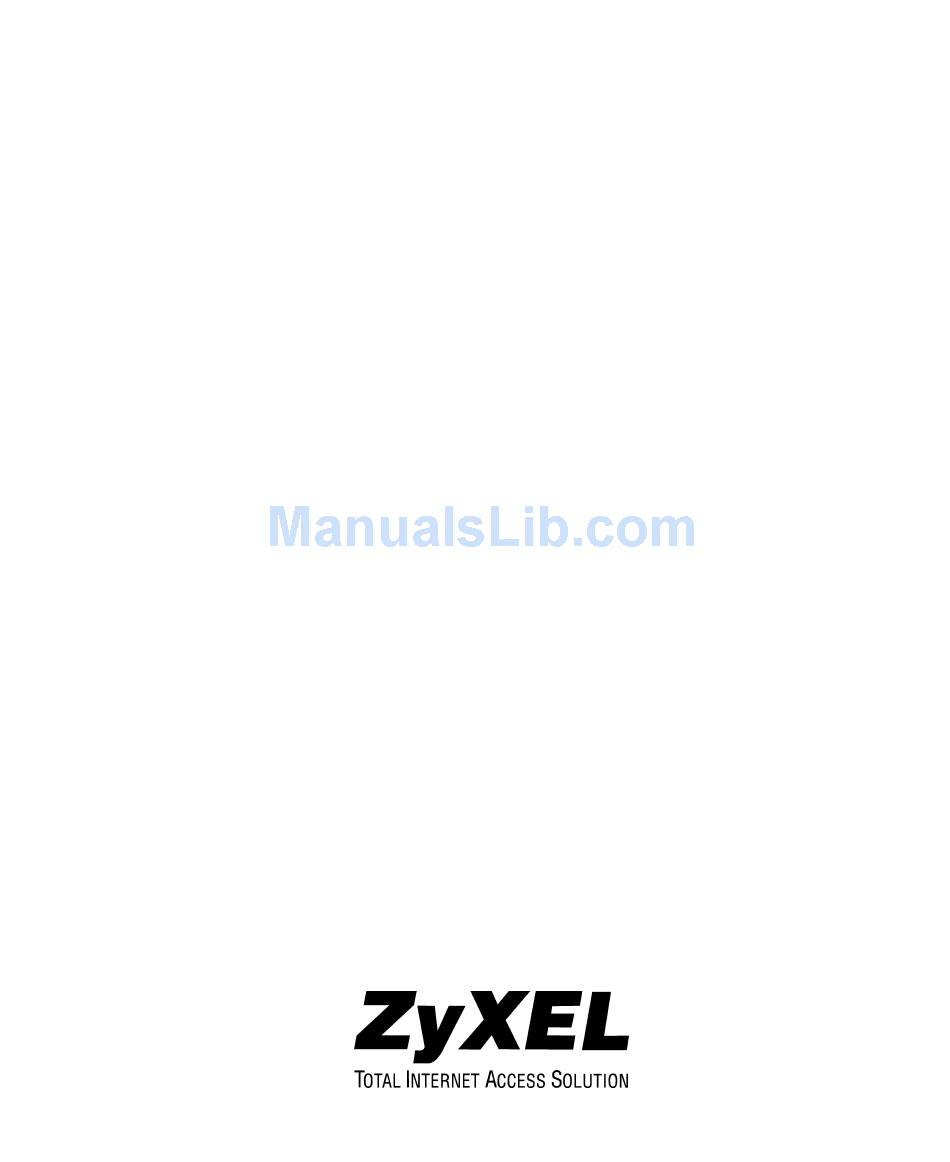

Prestige 782M
G.SHDSL Bridge
User's Guide
Version 2.50
March 2002

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications Prestige 782M

Summary of Contents for ZyXEL Communications Prestige 782M

  • Page 1 Prestige 782M G.SHDSL Bridge User's Guide Version 2.50 March 2002...
  • Page 2 Trademarks ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.
  • Page 3 Federal Communications Commission This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operations.

  • Page 4: Information For Canadian Users

    P782M G.SHDSL Bridge Information for Canadian Users The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective operation and safety requirements. The Industry Canada label does not guarantee that the equipment will operate to a user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.

  • Page 5: Zyxel Limited Warranty

    P782M G.SHDSL Bridge ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or...

  • Page 6: Customer Support

    +49-2405-6909-0 www.zyxel.de +49-2405-6909-99 +603-795-44-688 www.zyxel.com.my +603-795-34-407 REGULAR MAIL ZyXEL Communications Corp., 6 Innovation Road II, Science- Based Industrial Park, HsinChu, Taiwan 300, R.O.C. ZyXEL Communications Inc., 1650 Miraloma Avenue, Placentia, CA 92870, U.S.A. ZyXEL Communications A/S, Columbusvej 5, 2860 Soeborg, Denmark.

  • Page 7: Table Of Contents

    Copyright ...II Federal Communications Commission (Fcc) Interference Statement...III Information For Canadian Users ... IV ZyXEL Limited Warranty... IV Customer Support ... VI Table of Contents... VII List of Figures... XII List of Tables ... XIV Preface ... XV What Is DSL? ...XVII Chapter 1 Getting to Know Your G.SHDSL Bridge ...
  • Page 8 P782M G.SHDSL Bridge Navigating the SMT Interface... 2-6 2.8.1 System Management Terminal Interface Summary ... 2-8 Changing the System Password ... 2-8 2.10 General Setup... 2-9 2.10.1 Procedure To Configure Menu 1... 2-9 2.11 Setting Up the WAN Link... 2-10 2.11.1 Service Type ...
  • Page 9 4.1.1 Remote Node Profile ...4-1 4.1.2 Encapsulation and Multiplexing Scenarios ...4-2 4.1.3 Outgoing Authentication Protocol...4-4 4.1.4 Editing PPP Options ...4-5 Remote Node Setup...4-5 Remote Node Filter ...4-6 Chapter 5 Remote Node TCP/IP Configuration ... 5-1 5.1.1 Traffic Shaping...5-1 TCP/IP Configuration...5-2 5.2.1 Editing TCP/IP Options...5-2 Chapter 6 Filter Set Configuration ...
  • Page 10 P782M G.SHDSL Bridge 8.2.2 Using the FTP Command from the Command Line... 8-3 8.2.3 Example of FTP Commands from the Command Line... 8-3 8.2.4 GUI-based FTP Clients ... 8-4 8.2.5 Backup Configuration Using TFTP ... 8-4 8.2.6 TFTP Command Example... 8-5 8.2.7 GUI—based TFTP Clients ...
  • Page 11 P782M G.SHDSL Bridge Appendix D TCP/IP... E Index ... K Table of Contents...

  • Page 12: List Of Figures

    P782M G.SHDSL Bridge List of Figures Figure 1-1 Internet Access Application ... 1-3 Figure 1-2 LAN-to-LAN Application ... 1-4 Figure 2-1 Prestige 782 Front Panel... 2-1 Figure 2-2 Prestige 782 Rear Panel and Connections ... 2-2 Figure 2-3 Power-On Display ... 2-4 Figure 2-4 Login Screen ...
  • Page 13 P782M G.SHDSL Bridge Figure 8-1 Telnet in Menu 24.5...8-3 Figure 8-2 FTP Session Example ...8-4 Figure 8-3 System Maintenance — Backup Configuration...8-6 Figure 8-4 System Maintenance — Starting Xmodem Download Screen ...8-6 Figure 8-5 Backup Configuration Example...8-7 Figure 8-6 Successful Backup Confirmation Screen...8-7 Figure 8-7 Telnet into Menu 24.6...8-8 Figure 8-8 Restore Using FTP Session Example ...8-9 Figure 8-9 System Maintenance —...
  • Page 14 P782M G.SHDSL Bridge List of Tables Table 2-1 Front Panel LED Description ... 2-1 Table 2-2 Main Menu Commands ... 2-7 Table 2-3 Main Menu Summary ... 2-8 Table 2-4 General Setup Menu Fields... 2-10 Table 2-5 Menu 2 — WAN Setup ... 2-11 Table 3-1 TCP/IP Ethernet Setup Menu Fields...

  • Page 15: Preface

    About Your Prestige Congratulations on your purchase of the Prestige 782M G.SHDSL Bridge. The Prestige is a high-performance modem for Internet/LAN access via a telephone line. Your Prestige supports multi-protocol routing for TCP/IP and transparent bridging for other protocols. The Prestige supports symmetrical multi-rate data transmission speeds from 72Kbps up to 2320Kbps. The actual rate depends on the copper category of your telephone wires, distance from the central office and the type of xDSL service you subscribe to.

  • Page 16: Syntax Conventions

    P782M G.SHDSL Bridge Our Read Me First is designed to help you get up and running right away. It contains a detailed easy-to-follow connection diagram, default settings, handy checklists and information on setting up your network and configuring for Internet access. ZyXEL Glossary and Web Site Please refer to www.zyxel.com for an online glossary of networking terms and additional support documentation.

  • Page 17: What Is Dsl

    DSL (Digital Subscriber Line) technology enhances the data capacity of the existing twisted-pair wire that runs between the local telephone company switching offices and most homes and offices. There are actually seven types of DSL service, ranging in speeds from 16 Kbits/sec to 52 Mbits/sec. The services are either symmetrical (traffic flows at the same speed in both directions), or asymmetrical (the downstream capacity is higher than the upstream capacity).

  • Page 19: Chapter 1 Getting To Know Your G.shdsl Bridge

    Getting to Know Your G.SHDSL Bridge This chapter covers the key features and main applications of your Prestige. The Prestige can be used for high-speed LAN-to-LAN connections or Internet access through a G.SHDSL connection over the telephone line. Features of the Prestige The following features make the Prestige a complete and the flexible networking solution for most users.

  • Page 20: Diagnostics Capabilities

    P782M G.SHDSL Bridge • Packet Filtering • User Authentication (PAP, CHAP) with PPP (RFC 1334, RFC 1994) • Microsoft CHAP Multiple PVC (Permanent Virtual Circuits) Support • Your Prestige supports up to 12 PVCs. Data Compression Your Prestige incorporates Stac LZS data compression ratios of up to 4:1 to speed up data transfer. Stac is the de facto standard of data compression over PPP links.

  • Page 21: Application Scenarios For The Prestige

    • SHDSL circuitry • • LAN port Upgrade Firmware via LAN In addition to the direct console port connection, the Prestige supports the up/downloading of firmware and configuration files over the LAN. Ease of Installation Your Prestige is designed for quick, easy and intuitive installation. Its compact size and light weight make it easy to position anywhere in your busy office.

  • Page 22: Lan-To-Lan Application

    P782M G.SHDSL Bridge 1.2.2 LAN-to-LAN Application You can use the Prestige to connect two geographically dispersed networks over the DSL line. For multi- computer use, the Prestige must connect with a switch or hub. A typical LAN-to-LAN application is shown next.

  • Page 23: Chapter 2 Hardware Installation And Initial Setup

    Hardware Installation and Initial Setup This chapter shows how to make cable connections and set up your xDSL connection using the Front Panel LEDs of the P782 The LEDs on the front panel indicate the operational status of your Prestige COLOR STATUS Green...

  • Page 24: Rear Panel And Connections Of The Prestige 782

    P782M G.SHDSL Bridge COLOR STATUS xDSL Green Blinking Rear Panel and Connections of the Prestige 782 The following figure shows the rear panel of your Prestige. Figure 2-2 Prestige 782 Rear Panel and Connections 2.2.1 xDSL Port Connect the Prestige (port labeled xDSL) to the telephone jack using the RJ-11 cable (supplied). 2.2.2 Console Port For the initial configuration of your Prestige, you need to use terminal emulator software on a computer and connect it to the Prestige through the console port.

  • Page 25: Lan 10/100M Port

    2.2.3 LAN 10/100M Port Ethernet 10Base-T/100Base-T networks use Shielded Twisted Pair (STP) cable with RJ-45 connectors that look like a bigger telephone plug with 8 pins. Use the crossover cable to connect your Prestige to a computer directly or use a straight-through Ethernet cable to connect to an external hub, then connect one end of the straight-through cable from the hub to the NIC on the computer.

  • Page 26: Initial Screen

    When you turn on your Prestige, it performs several internal tests as well as line initialization. After the initialization, the Prestige asks you to press [ENTER] to continue, as shown. Copyright (c) 1994 - 2002 ZyXEL Communications Corp. initialize ch =0, ethernet address: 00:a0:c5:01:23:45 Wan Channel init ...

  • Page 27: Resetting The Prestige

    If, after logging on, there is no activity for longer than 5 minutes, your Prestige will automatically log you out and display a blank screen. Press [ENTER] to bring Resetting the Prestige If you forget your password or cannot access the Prestige, you will need to reload the factory-default configuration file.

  • Page 28: Navigating The Smt Interface

    P782M G.SHDSL Bridge Figure 2-5 Prestige 782 SMT Menu Overview Navigating the SMT Interface The SMT (System Management Terminal) is the interface that you use to configure your Prestige. Several operations that you should be familiar with before you attempt to modify the configuration are listed in the table shown next.

  • Page 29: Table 2-2 Main Menu Commands

    OPERATION KEYSTROKE Move down to [ENTER] another menu Move up to a [ESC] previous menu Move to a “hidden” Press [SPACE menu BAR] to change No to Yes then press [ENTER]. Move the cursor [ENTER] or [UP]/[DOWN] arrow keys. Entering Type in or press information [SPACE BAR], then...

  • Page 30: System Management Terminal Interface Summary

    From the main menu, enter 23 to display Menu 23 — System Password as shown in the following figure. When the menu appears, type the old system password, for example “1234”, and press [ENTER]. Copyright (c) 1994 - 2002 ZyXEL Communications Corp. Prestige 782M Main Menu Advanced Management 21.

  • Page 31: General Setup

    Press ENTER to CONFIRM or ESC to Cancel: Step 2. Type your new system password (up to 30 characters) and press [ENTER]. Step 3. Re-type your new system password to confirm and press [ENTER]. The screen displays an asterisk “ 2.10 General Setup Menu 1 —...

  • Page 32: Setting Up The Wan Link

    P782M G.SHDSL Bridge System Name= ? Location= Contact Person's Name= FIELD System Name Choose a descriptive name for identification purposes. This name can be up to 30 alphanumeric characters long. Spaces are not allowed, but dashes “-” and underscores "_" are accepted. Location Enter the geographic location (up to 31 characters) of your Prestige.

  • Page 33: Transfer Rates

    2.11.3 Transfer Rates The Prestige supports the following symmetrical multi-rate data transmission speeds: 72, 136, 200, 264, 392, 520, 776, 1032, 1160, 1544, 1736, 2056 and 2312 Kbps. You can increase the capacity of the Internet connection (within certain limitations) without changing your ISP or buying new equipment.

  • Page 35: Chapter 3 Internet Access

    This chapter shows you how to configure the LAN and WAN of your Prestige for Internet access Factory Ethernet Defaults The Ethernet parameters of the Prestige are preset in the factory with the following values: ♦ IP address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits). LANs and WANs A LAN (Local Area Network) is a computer network limited to the immediate area, usually the same building or floor of a building.

  • Page 36: Tcp/Ip Parameters

    P782M G.SHDSL Bridge TCP/IP Parameters 3.3.1 IP Address and Subnet Mask Like houses on a street that share a common street name, the computers on a LAN share one common network number. Where you obtain your network number depends on your particular situation. If the ISP or your network administrator assigns you a block of registered IP addresses, follow their instructions in selecting the IP addresses and the subnet mask.

  • Page 37: Lan Port Filter Setup

    3.4.1 LAN Port Filter Setup This menu allows you to specify filter set(s) that you wish to apply to the Ethernet traffic. You seldom need to filter Ethernet traffic; however, the filter sets may be useful to block certain packets, reduce traffic and prevent security breaches.

  • Page 38: Vpi And Vci

    P782M G.SHDSL Bridge Table 3-1 TCP/IP Ethernet Setup Menu Fields FIELD TCP/IP Setup IP Address Enter the (LAN) IP address of your Prestige in dotted decimal notation IP Subnet Mask Your Prestige will automatically calculate the subnet mask based on the IP address that you assign.

  • Page 39: Encapsulation

    Encapsulation Be sure to use the encapsulation method required by your ISP. The Prestige supports the following methods. 3.9.1 PPP Please refer to RFC 2364 for more information on PPP over ATM Adaptation Layer 5 (AAL5). Refer to RFC 1661 for more information on PPP. 3.9.2 RFC 1483 RFC 1483 describes two methods for Multiprotocol Encapsulation over ATM Adaptation Layer 5 (AAL5).

  • Page 40: Peak Cell Rate (Pcr)

    P782M G.SHDSL Bridge FIELD Enter your Virtual Path Identifier here. Enter your Virtual Channel Identifier here. My Login Enter the login name assigned by your ISP (for PPP only). My Password Enter the password associated with your ISP assigned My Login (for PPP only). 3.11.1 Peak Cell Rate (PCR) Peak Cell Rate (PCR) is the maximum rate at which the sender can send cells.

  • Page 41: Table 3-3 Internet Access Setup Menu Fields

    Table 3-3 Internet Access Setup Menu Fields FIELD ISP’s Name Enter the name of your Internet Service Provider. This information is for identification purposes only. Encapsulation Press [ used by your ISP. Choices are PPP or RFC 1483. Multiplexing Press [ used by your ISP.

  • Page 43: Chapter 4 Remote Node Configuration

    This chapter covers the parameters that are protocol-independent. The protocol-dependent configurations (TCP/IP and Bridging) are covered in the next chapters. Remote Node Setup A remote node is required for placing calls to a remote gateway. A remote node represents both the remote gateway and the network behind it across a WAN connection.

  • Page 44: Encapsulation And Multiplexing Scenarios

    P782M G.SHDSL Bridge Enter Node # to Edit: Figure 4-1 Menu 11 — Remote Node Setup 4.1.2 Encapsulation and Multiplexing Scenarios For Internet access you should use the encapsulation and multiplexing methods used by your ISP. For LAN-to-LAN applications, e.g., branch office and corporate headquarters, prior agreement on methods is necessary because encapsulation and multiplexing cannot be automatically determined.

  • Page 45: Figure 4-2 Menu 11.1 - Remote Node Profile

    Rem Node Name= Change Me Active= Yes Encapsulation= RFC 1483 Multiplexing= LLC-based Incoming: Rem Login= N/A Rem Password= N/A Outgoing: My Login= N/A My Password= N/A Authen= N/A Press ENTER to Confirm or ESC to Cancel: Figure 4-2 Menu 11.1 — Remote Node Profile In Menu 11.1 —...

  • Page 46: Outgoing Authentication Protocol

    P782M G.SHDSL Bridge FIELD Rem Password Outgoing: My Login My Password Authen Edit PPP Options Edit Bridge Edit ATM Options Session Options: Edit Filter Sets When you have completed this menu, press [ENTER] at the prompt “Press [ENTER] to confirm or [ESC] to cancel”...

  • Page 47: Editing Ppp Options

    the negotiated protocol is different from that in the user profile, even when the negotiated protocol is stronger than specified. If the peer disconnects right after a successful authentication, make sure that you specify the correct authentication protocol when connecting to such an implementation. 4.1.4 Editing PPP Options To edit the remote node PPP options, move the cursor to the Edit PPP Options field in Menu 11.1 —...

  • Page 48: Figure 4-4 Remote Node Network Layer Options

    P782M G.SHDSL Bridge Step 1. In menu 11.1, make sure the Edit Bridge field is set to Yes and then press [ENTER] to display Menu 11.3 — Remote Node Network Layer Options (shown next). Menu 11.3 - Remote Node Network Layer Options Enter here to CONFIRM or ESC to CANCEL: Figure 4-4 Remote Node Network Layer Options The next table shows you how to configure remote node network layer options.
  • Page 49 P782M G.SHDSL Bridge Use Menu 11.5 — Remote Node Filter to specify the filter set(s) to apply to the incoming and outgoing traffic between this remote node and the Prestige and also to prevent certain packets from triggering calls. You can specify up to 4 filter sets separated by comma, e.g., 1, 5, 9, 12, in each filter field. Remote Node Configuration...

  • Page 51: Traffic Shaping

    P782M G.SHDSL Bridge Chapter 5 Remote Node TCP/IP Configuration This chapter shows a sample LAN-to-LAN application and how to configure TCP/IP remote nodes. 5.1.1 Traffic Shaping Traffic Shaping is an agreement between the carrier and the subscriber to regulate the average rate and “burstiness”...

  • Page 52: Figure 5-1 Example Of Traffic Shaping

    P782M G.SHDSL Bridge Figure 5-1 Example of Traffic Shaping TCP/IP Configuration The following sections describe how to configure the TCP/IP parameters of a remote node. 5.2.1 Editing TCP/IP Options Follow the steps ahead to edit Menu 11.6 — Remote Node ATM Layer Options. In menu 11.1, make sure the Edit ATM Options field is set to Yes and then press [ENTER] to display Menu 11.6 —...

  • Page 53: Figure 5-2 Menu 11.6 - Remote Node Atm Layer Options

    Figure 5-2 Menu 11.6 — Remote Node ATM Layer Options Refer to Chapter 3 for field descriptions found in the last figure. The following table contains instructions on how to configure your Prestige for Internet access. Table 5-1 Fields in Menu 11.6 — Remote Node ATM Layer Options FIELD VPI # Enter the Virtual Path Identifier (VPI) that the telephone...

  • Page 55: About Filtering

    P782M G.SHDSL Bridge Chapter 6 Filter Set Configuration This chapter shows you how to create and apply filters. About Filtering Your Prestige uses filters to decide whether or not to allow passage of a data packet and/or to make a call. There are two types of filter applications: data filtering and call filtering.

  • Page 56: Figure 6-1 Outgoing Packet Filtering Process

    P782M G.SHDSL Bridge Outgoing Data Packet Filtering Match Drop packet Figure 6-1 Outgoing Packet Filtering Process The following figure illustrates the logic flow when executing a filter rule. Call Filtering match Built-in match default Call Filters (if applicable) Match Drop packet Drop packet if line not up if line not up...

  • Page 57: Filter Set

    Fetch Next Filter Set Next Filter Set Available? Drop Packet You can apply up to four filter sets to a particular port to block various types of packets. Because each filter set can have up to six rules, you can have a maximum of 24 rules active for a single port. Filter Set Configuration Filter Set Fetch Next...

  • Page 58: Figure 6-3 Menu 21 - Filter Set Configuration

    P782M G.SHDSL Bridge For incoming packets, your Prestige applies data filters only. Packets are processed depending on whether a match is found. The following sections describe how to configure filter sets. Configuring a Filter Set To configure a filter set, follow the steps shown next. Step 1.

  • Page 59: Filter Rules Summary Menus

    # A Type - - ---- -------------------------------------------- --------- - - - 1 N Gen Off=0, Len=0, Mask=, Value= Figure 6-4 Menu 21.1 — Filter Rules Summary 6.2.1 Filter Rules Summary Menus The following tables briefly describe the abbreviations used in menus 21.1 and 21.2. Table 6-1 Abbreviations Used in the Filter Rules Summary Menu FIELD The filter rule number: 1 to 6.

  • Page 60: Figure 6-5 Menu

    P782M G.SHDSL Bridge FILTER TYPE Generic Filter Rule The purpose of generic rules is to allow you to filter non-IP packets. For generic rules, the Prestige treats a packet as a byte stream as opposed to an IP packet. You specify the portion of the packet to check with the Offset (from 0) and the Length fields, both in bytes.

  • Page 61: Table 6-3 Menu

    Table 6-3 Menu 21.5.1 FIELD Filter # This is the filter set, filter rule coordinates, for instance, 2, 3 refers to the second filter set and the third rule of that set. Filter Type This field may not be changed. Active Select Yes to turn on or No to turn off the filter rule.

  • Page 62: Filter Configuration Example

    P782M G.SHDSL Bridge Filter Configuration Example Let us look at a sample filter. See the supporting disk for more sample filters. Step 1. Enter 21 from the main menu to open Menu 21 — Filter Set Configuration. Step 2. Enter the index of the filter set you want to configure (in this case 3) Step 3.

  • Page 63: Figure 6-6 Sample Filter — Menu

    Select Yes to make .This is the first byte of the data portion in the rule active. the packet that you want to compare. Menu 21.3.1 – Generic Filter Rule Filter #: 3,1 Filter Type= Generic Filter Rule Active= Yes Offset= 9 Length= 4 Mask= 789abcde...

  • Page 64: Applying Filters

    P782M G.SHDSL Bridge # A Type - - ---- --------------------------------------------------------------- - - - 1 Y Gen Off=9, Len=4, Mask=789abcde, Value=789abcde Enter Filter Rule Number (1-6) to Configure: 1 This shows what you configured in the previous menu. Figure 6-7 Sample Filter Rules Summary — Menu 21.3 After you have created the filter set, you must apply it.

  • Page 65: Figure 6-8 Filtering Ethernet Traffic

    6.5.1 Ethernet Traffic 6.5.2 Ethernet Traffic You seldom need to filter Ethernet traffic; however, the filter sets may be useful to block certain packets, reduce traffic and prevent security breaches. Go to menu 3.1 (shown next) and type the number(s) of the filter set(s) that you want to apply as appropriate.

  • Page 67: Figure 7-1 Menu 24 - System Maintenance

    System Information and Diagnosis This chapter covers the information and diagnostic tools in SMT menus 24.1 to 24.4 and 24.8. These tools include updates on system status, port status and upgrades for the system software. This chapter describes how to use these tools in detail. Enter 24 in the main menu to display Menu 24 Figure 7-1 Menu 24 System Status...

  • Page 68: Figure 7-2 Menu

    P782M G.SHDSL Bridge Node-Lnk Status 1-1483 Ethernet: Status: Down Collisions: 0 CPU Load = 3.71% Figure 7-2 Menu 24.1 The following table describes the fields present in Menu 24.1 — System Maintenance — Status. Table 7-1 System Maintenance FIELD Node-Lnk This is the node index number and link type.

  • Page 69: Figure 7-3 Menu 24.2 - System Information And Console Port Speed

    FIELD Shows statistics for the WAN. Tx Pkts The number of transmitted packets to the LAN. Rx Pkts The number of received packets from the LAN. Line Status Shows the current status of the xDSL line which can be Up or Down. Transfer Shows the transfer rate of the Prestige.

  • Page 70: Console Port Speed

    Displays the system name of your Prestige. This information can be changed in Menu 1 — General Setup. ZyNOS F/W Version Refers to the ZyNOS (ZyXEL Network Operating System) system firmware version. ZyNOS is a registered trademark of ZyXEL Communications Corporation. xDSL Firmware Displays the xDSL firmware version.

  • Page 71: Figure 7-5 Menu 24.2.2 - System Maintenance - Change Console Port Speed

    Menu 24.2.2 – System Maintenance – Change Console Port Speed Press Space Bar to Toggle. Figure 7-5 Menu 24.2.2 — System Maintenance — Change Console Port Speed Diagnostic The diagnostic facility allows you to test the different aspects of your Prestige to determine if it is working properly.

  • Page 72: Command Interpreter Mode

    Enter 8 from Menu 24 — System Maintenance. A list of valid commands can be found by typing help or ? at the command prompt. Type “exit” to return to the SMT main menu when finished. Copyright (c) 1994 - 2002 ZyXEL Communications Corp. ras> ?

  • Page 73: Filename Conventions

    P782M G.SHDSL Bridge Chapter 8 Firmware and Configuration File Maintenance This chapter shows you how to back up and restore your configuration file as well as upload new firmware and a new configuration file. Filename Conventions The configuration file (often called the romfile or rom-0) contains the factory default settings in the menus such as password, DHCP Setup, TCP/IP Setup, etc.

  • Page 74: Backup Configuration

    P782M G.SHDSL Bridge FILE TYPE INTERNAL NAME Configuration Rom-0 File Firmware Backup Configuration The Prestige displays different messages explaining different ways to backup, restore and upload files in menus 24.5, 24.6, 24. 7.1 and 24.7.2; depending on whether you use the console port or Telnet. Option 5 from Menu 24 —...

  • Page 75: Using The Ftp Command From The Command Line

    8.2.1 Backup Configuration Follow the instructions as shown in the next screen. Menu 24.5 - System Maintenance - Backup Configuration To transfer the configuration file to your workstation, follow the procedure below: 1. Launch the FTP client on your workstation. 2.

  • Page 76: Backup Configuration Using Tftp

    P782M G.SHDSL Bridge 331 Enter PASS command Password: 230 Logged in ftp> bin 200 Type I OK ftp> get rom-0 zyxel.rom 200 Port command okay 150 Opening data connection for STOR ras 226 File received OK ftp: 16384 bytes sent in 1.10Seconds 297.89Kbytes/sec. ftp>...

  • Page 77: Tftp Command Example

    Step 1. Use telnet from your computer to connect to the Prestige and log in. Because TFTP does not have any security checks, the Prestige records the IP address of the telnet client and accepts TFTP requests only from this address. Step 2.

  • Page 78: Backup Via Console Port

    P782M G.SHDSL Bridge Remote File This is the filename on the Prestige. The filename for the firmware is “ras” and for the configuration file, is “rom-0”. Binary Transfer the file in binary mode. Abort Stop transfer of the file. Refer to section 0 to read about configurations that disallow TFTP and FTP over WAN. 8.2.8 Backup Via Console Port Back up configuration via console port by following the HyperTerminal procedure shown next.

  • Page 79: Restore Configuration

    Figure 8-5 Backup Configuration Example Step 4. After a successful backup you will see the following screen. Press any key to return to the SMT menu. Figure 8-6 Successful Backup Confirmation Screen Restore Configuration This section shows you how to restore a previously saved configuration. Note that this function erases the current configuration before restoring a previous back up configuration;...

  • Page 80: Restore Using Ftp

    P782M G.SHDSL Bridge DO NOT INTERUPT THE FILE TRANSFER PROCESS AS THIS MAY PERMANENTLY DAMAGE YOUR PRESTIGE. WHEN THE RESTORE CONFIGURATION PROCESS IS COMPLETE, THE PRESTIGE WILL 8.3.1 Restore Using FTP For details about backup using (T)FTP please refer to earlier sections on FTP and TFTP file upload in this chapter.

  • Page 81: Figure 8-8 Restore Using Ftp Session Example

    Step 7. Use “put” to transfer files from the Prestige to the computer, for example, “put config.rom rom- 0” transfers the configuration file “config.rom” on your computer to the Prestige. See earlier in this chapter for more information on filename conventions. Step 8.

  • Page 82: Uploading Firmware And Configuration Files

    P782M G.SHDSL Bridge Figure 8-11 Restore Configuration Example Step 4. After a successful restoration you will see the following screen. Press any key to restart the Prestige and return to the SMT menu. Figure 8-12 Successful Restoration Confirmation Screen Uploading Firmware and Configuration Files This section shows you how to upload firmware and configuration files.

  • Page 83: Configuration File Upload

    Menu 24.7.1 - System Maintenance - Upload System Firmware To upload the system firmware, follow the procedure below: 1. Launch the FTP client on your workstation. 2. Type "open" and the IP address of your system. Then type "root" and SMT password as requested.

  • Page 84: Ftp File Upload Command From The Dos Prompt Example

    P782M G.SHDSL Bridge To upload the firmware and the configuration file, follow these examples 8.4.3 FTP File Upload Command from the DOS Prompt Example Step 1. Launch the FTP client on your computer. Step 2. Enter “open”, followed by a space and the IP address of your Prestige. Step 3.

  • Page 85: Tftp Upload Command Example

    To use TFTP, your computer must have both telnet and TFTP clients. To transfer the firmware and the configuration file, follow the procedure shown next. Step 1. Use telnet from your computer to connect to the Prestige and log in. Because TFTP does not have any security checks, the Prestige records the IP address of the telnet client and accepts TFTP requests only from this address.

  • Page 86: Figure 8-16 Menu 24.7.1 As Seen Using The Console Port

    P782M G.SHDSL Bridge 8.4.8 Uploading Firmware File Via Console Port Step 1. Select 1 from Menu 24.7 — System Maintenance — Upload Firmware to display Menu 24.7.1 — System Maintenance — Upload System Firmware, then follow the instructions as shown in the following screen. Menu 24.7.1 - System Maintenance - Upload System Firmware To upload system firmware: 1.

  • Page 87: Figure 8-18 Menu 24.7.2 As Seen Using The Console Port

    8.4.10 Uploading Configuration File Via Console Port Step 1. Select 2 from Menu 24.7 — System Maintenance — Upload Firmware to display Menu 24.7.2 — System Maintenance — Upload System Configuration File. Follow the instructions as shown in the next screen. Menu 24.7.2 - System Maintenance - Upload System Configuration File To upload system configuration file: 1.

  • Page 88: Figure 8-19 Example Xmodem Upload

    P782M G.SHDSL Bridge After the configuration upload process has completed, restart the Prestige by entering “atgo”. 8-16 Figure 8-19 Example Xmodem Upload Firmware and Configuration File Maintenance Type the configuration file’s location, or click Browse to search for it. Choose the Xmodem protocol. Then click Send.

  • Page 89: Table 9-1 Problems Starting The Prestige

    This chapter covers potential problems and the corresponding remedies. Problems Starting the Prestige PROBLEM No LEDs are on Make sure that the Prestige’s power adapter is connected to the Prestige and plugged when the in to an appropriate power source. Check that the Prestige and the power source are Prestige is both turned on.

  • Page 90: Table 9-3 Problems Connecting With The Lan

    P782M G.SHDSL Bridge PROBLEM Cannot connect Check menu 4 or menu 11.1 to verify the Encapsulation for the remote node. to a remote node or ISP. I cannot get a The WAN IP is provided after the ISP verifies the MAC address, host name or user ID. WAN IP Find out the verification method used by your ISP and configure the corresponding address from...

  • Page 91: Problems Accessing The Internet

    Problems Accessing the Internet Table 9-5 Problems Accessing the Internet PROBLEM Make sure the Prestige is turned on and connected to the network. I cannot access the Internet. If the Prestige’s DSL LED is off, check the cable between the Prestige and the telephone wall jack.
  • Page 93 SPECIFICATIONS NORTH AMERICA AC Power AD48-1201200DUY Adapter model Input power AC120Volts/60Hz/ 0.25A Output power DC12Volts/1.2A Power 10 W consumption Plug Standards North American Safety standards UL, CUL (UL1950, CSA C22.2 No. 234- M90) Diagram 1 Power Adapter Specifications Power Adapter Specifications Power Adapter Specifications EUROPEAN UNION AD-1201200DV...
  • Page 94 P782M G.SHDSL Bridge ATM is a connection-oriented technology, meaning that it sets up virtual circuits over which end systems communicate. The terminology for virtual circuits is as follows: • Virtual Channel • Virtual Path • Virtual Circuit Think of a virtual path as a cable that contains a bundle of wires. The cable connects two points and wires within the cable provide individual circuits between the two points.
  • Page 95 When you reboot your Prestige, you will be given a choice to go into debug mode by pressing a key at the prompt shown in the following screen. In debug mode you have access to a series of boot module commands, for example ATUR (for uploading firmware) and ATLC (for uploading the configuration file) already discussed in a previous section.
  • Page 96 P782M G.SHDSL Bridge ======= Debug Command Listing ======= ATHE ATBAx ATENx,(y) ATSE ATTI(h,m,s) ATDA(y,m,d) ATDS ATDT ATDUx,y ATRBx ATRWx ATRLx ATGO(x) ATGR ATGT ATRTw,x,y(,z) RAM test level w, from address x to y (z iterations) ATSH ATDOx,y ATTD ATUR ATLC ATXSx just answer OK print help...
  • Page 97 All computers must have a 10M or 100M Ethernet adapter card and TCP/IP installed. Use straight-through Ethernet cables to connect your computer's Ethernet adapter to a hub or switch and to connect the hub or switch to the Prestige's LAN port. Otherwise, connect your computer's Ethernet adapter directly to the LAN port with a crossover Ethernet cable.
  • Page 98 P782M G.SHDSL Bridge Select Client and then click Add. Select Microsoft from the list of manufacturers. Select Client for Microsoft Networks from the list of network clients and then click OK. Restart your computer so the changes you made take effect. Configuring TCP/IP 1.
  • Page 99 Setting up Your Windows NT/2000 Computer Configuring TCP/IP 1. Click Start, Settings, Network and Dial-up Connections and right-click Local Area Connection or the connection you want to configure and click Properties. 2. Select Internet Protocol (TCP/IP) (you may need to scroll down) and click Properties. 3.
  • Page 100 P782M G.SHDSL Bridge 4. The Internet Protocol TCP/IP Properties window opens. -If you have a dynamic IP address click Obtain an IP address automatically. -If you have a static IP address click Use the following IP Address and fill in the IP address, Subnet mask, and Default gateway fields.
  • Page 101 Configuring TCP/IP Properties 1. Click the Apple menu, Control Panel and double-click TCP/IP to open the TCP/IP Control Panel. 2. Select Ethernet from the Connect via list. 3. For dynamically assigned settings, select Using DHCP Server from the Configure: list. 4.
