Installing Memory Modules

Install the memory modules in the new C160L CPU board, as described in
the following procedure:
1 Locate the memory connectors on the C160L CPU board in the new main tray, as
shown in Figure 7.
2 The C160L CPU has 8 memory slots, labeled 0A, 0B through 3A, 3B. The mem-
ory configuration is 32 MB to 512 MB installed in pairs of 16 MB, 32 MB, or 64
MB memory modules.
Memory modules must be installed in pairs of equal capacity.
Always install the largest capacity memory modules in the lowest numbered
memory slots and don't skip any numbers.
For example, if you have a pair of 16 MB memory modules and a pair of 64 MB
memory modules, first install the pair of 64 MB memory modules in slots 0A
and 0B, then install the 16 MB modules in slots 1A and 1B.
Figure 7 shows the positions of the memory connectors and slot numbering on
the C160L CPU board.
Table 1 shows the allowable memory configurations for the C160L workstation.
0A
2A
0B
2B
1A
3A
1B
3B

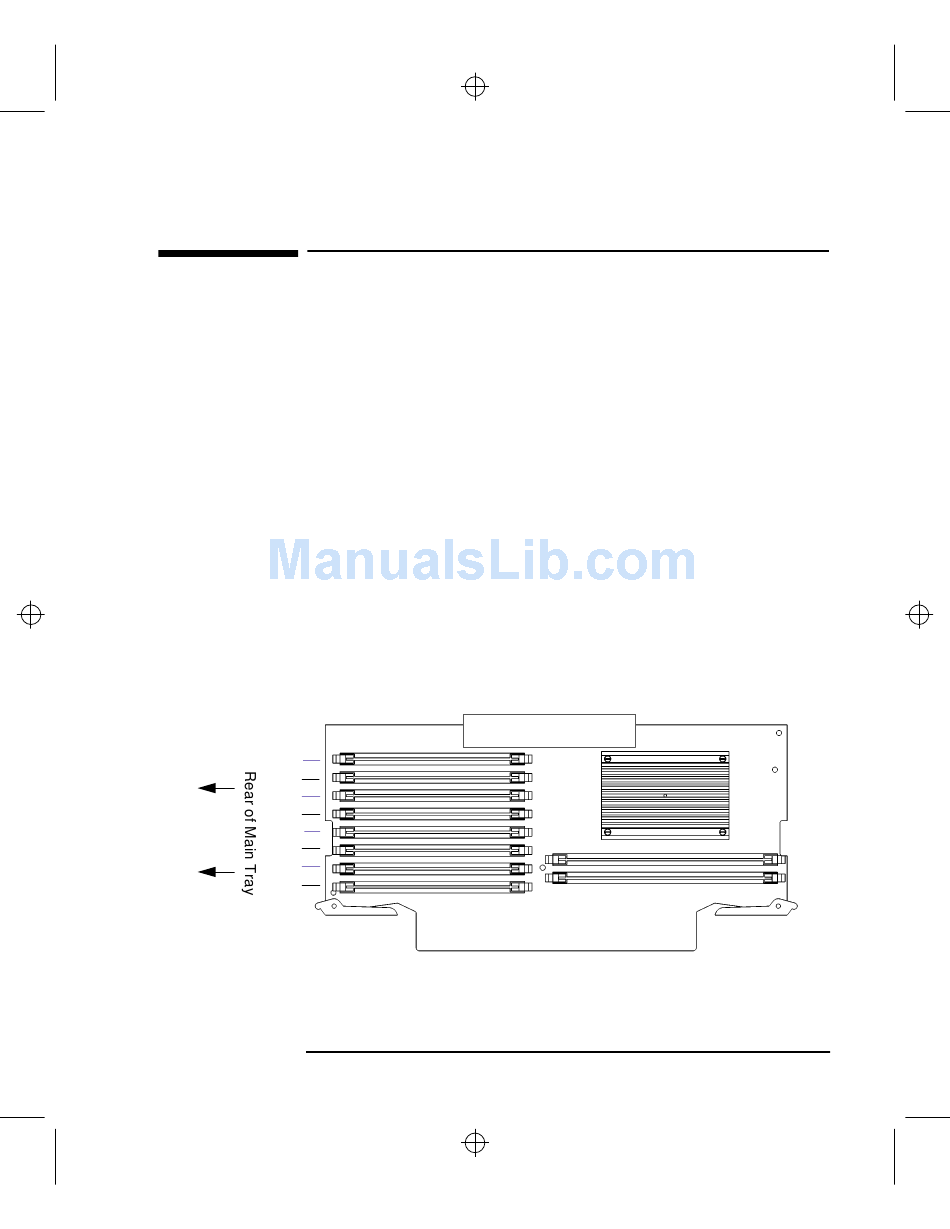

C160L Memory Connectors
