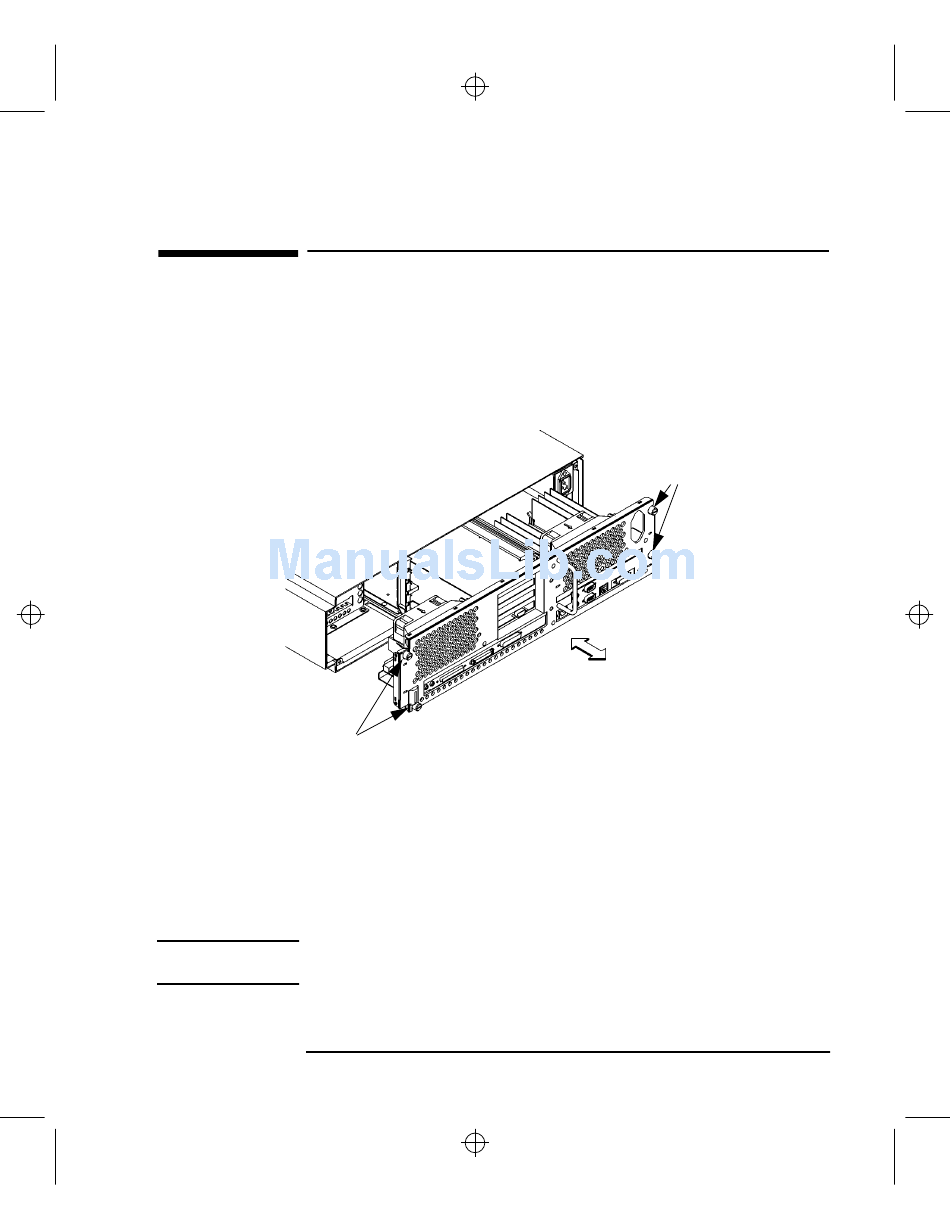

Figure 15
NOTICE:
Installing the New Main Tray Assembly
Install the new C160L main tray assembly, as described in the following
procedure:
1 Align the main tray assembly with the chassis and slide it into place, as shown in
Figure 15.
Thumb Screws
Installing the New Main Tray Assembly
2 Slide the main tray in until you feel it make contact with the internal connectors.
3 Push firmly and evenly on the main tray assembly to make sure that all connec-
tors are fully seated.
4 Start all four thumb screws loosely, then tighten them firmly, as shown in
Figure 15.
To maintain regulatory agency compliance, verify that the main tray is
fully seated and all four thumb screws are completely tightened.
Installing the New Main Tray Assembly
Thumb
Screws
