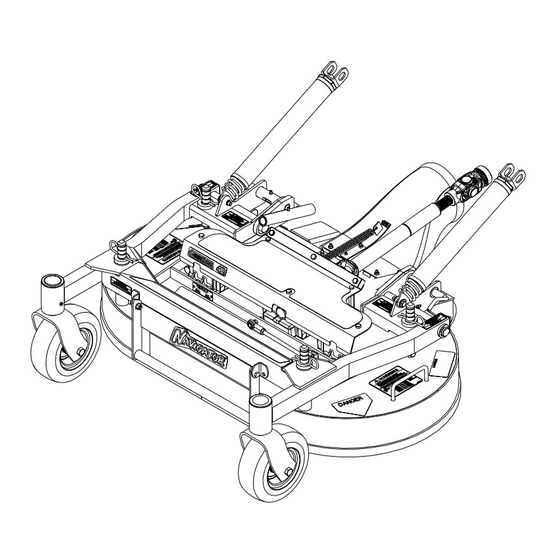

Exmark CD42CD Setup Instructions

Exmark CD42CD Setup Instructions

Hide thumbs Also See for CD42CD:
1
2
3
4

Advertisement

Quick Links

Download this manual
Loose Parts
Use the chart below to verify that all parts have been shipped. Part numbers not shown are available on the dealer
extranet.
Dealer Pack
Part #
—
Literature Pack
Part #
—
—
WARNING
Operating a Navigator tractor without an
approved Exmark front mount attachment
increases the possibility of operator
entanglement in drive wheels or forward tip
over. Entanglement or tip-over could cause
serious injury or death.
When operating a Navigator tractor without
an approved Exmark front mount attachment,
observe the following:
• Keep feet and clothing away from tires.
• Limit operation to minimum required to
install a different front mount attachment.
• Minimize speed and use extreme caution.
• Only operate on a flat level surface.
• Do Not operate up or down a trailer ramp.
• Avoid sudden acceleration or deceleration.
Uncrating the Unit
1. Remove top and sides of crate from base.
2. Remove flat hairpins from under front frame and
discard (Figure 1).
© 2009—Exmark Mfg. Co., Inc.
P.O. Box 808
Beatrice, NE 68310
Description
Warranty Registration Reminder
Description
Manual, Operator's
Manual, Parts
CD42CD/CD48CD
Qty.
Fill out the online warranty registration
form.
Qty.
1
Read before operating the machine.
1
Assembling the Discharge Chute
1. Locate the three holes at the rear of the mower deck
shown in (Figure 1) and remove the three #10-24 x
3/4 inch truss head screws and three #10-24 inch
nyloc nuts.
2. Assemble the discharge tube to the mower deck as
shown using the hardware removed in step 1, with
the hinge positioned on top of mower deck.
3. Locate the discharge tube spring on the mower deck
and hook onto the discharge tube spring bracket
(Figure 1).
Setup Instructions
For Serial Nos. 850,000 & Higher
Use
Use
Part No. 4500-597 Rev. A
Printed in the USA
All Rights Reserved

Advertisement

loading

Related Manuals for Exmark CD42CD

Summary of Contents for Exmark CD42CD

  • Page 1 When operating a Navigator tractor without 3. Locate the discharge tube spring on the mower deck an approved Exmark front mount attachment, and hook onto the discharge tube spring bracket observe the following: (Figure 1).
  • Page 2 4. Cut the tie wraps holding the tractor push arms up to the console. Remove the lynch pins from the tractor push arms. 5. Align the deck push arm tubes to the tractor push arms and push the deck rearward. Secure the push arms with the lynch pins on left and right sides of the unit (Figure 3).
  • Page 3 7. Raise the deck to the service position. WARNING Incorrectly raising or lowering a mower deck can be dangerous. A dropped mower deck can result in a serious injury or property damage. • Always raise and lower deck on flat, dry ground, free of any obstructions.
  • Page 4 WARNING Operating the mower without the locking pins securely latched can result in the mower deck folding up unexpectedly and can cause serious injury. Always operate mower with locking pins securely latched. Filling Out the Product Registration Fill out the online warranty registration form.
