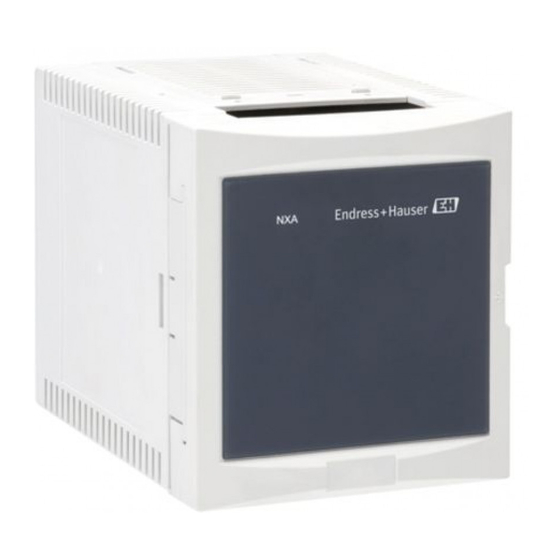

- Page 1 Products Solutions Services BA01335G/00/EN/01.14 71260205 Valid as of software version: 1.1.0 Operating Instructions Tankvision Gauge Link NXA20 Installation, Operation and Maintenance Manual...
-
Page 2: Table Of Contents
Insulation/Hi-Pot testing ....37 Index ......38 Endress+Hauser... -
Page 3: Document Information
The first commisioning steps are described as well. Beside basic PC operating knowledge no special training is needed to perform the Tank Gauging System operations. Nevertheless it is recommended receiving a training on the system by Endress+Hauser. Version history Document version Valid for SW version Changes to the previous version BA01335G/00/EN/01.14... -
Page 4: Documentation
A, B, C ... Views Hazardous area Indicates a hazardous area. A0011187 Indicates a non-hazardous location Safe area (non-hazardous area) A0011188 Documentation 1.4.1 Operating instructions Document number Instrument Type of Document BA01334G/00 Tankvision NXA20 Gauge Link Modbus Map Protocol Endress+Hauser... -
Page 5: Basic Safety Instructions
The Tankvision Gauge Link has not been assessed in respect of functional safety. Accordingly it is not intended to be used as a safety critical component or part of a safety critical system or in the implementation of any safety function. Workplace safety For work on and with the device: Endress+Hauser... -
Page 6: Operational Safety
The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark. -
Page 7: Identification
Extended order code (Ext. ord. cd.) Serial number (Ser. no.) Data Matrix Code Degree of protection Technical data of the Serial Service port Barcode CE mark Admissible ambient temperature Type of fieldbus communication (output) Type of fieldbus communication (input) Supply voltage Endress+Hauser... -
Page 8: Order Code And Device Version
Registered trademark of Sun Microsystems, Inc. ® ® Mozilla Firefox Registered trademark of the Mozilla Foundation Enraf, Honeywell, Rosemount, Emerson, Saab, L&J, VAREC, GPE are registered trademarks and trademarks of these organizations and companies. All other marks are property of their respective owners. Endress+Hauser... -
Page 9: Technical Specification
90 % at +25 °C (+77 °F), non-condensing Electrical ratings Property Specification Supply voltage 90 to 250 V Frequency 50 / 60 Hz Power 23 VA Overvoltage Category II Fuse (mains supply) T 400 mA HBC 250V AC, 20 x 5 mm (0,79 x 0,2 in) Endress+Hauser... -
Page 10: Installation
To attach the Tankvision Gauge Link to the mounting rail, first hook the enclosure over the top of the rail, then turn downwards until the spring clip on the back of the enclosure latches onto the lower edge of the mounting rail (fig. A below). Endress+Hauser... - Page 11 Gauge Link in the terminal compartment, accessed by opening the front cover / door. This is hinged at the left and clicks shut. Press on the arrowed area at the right side of the door to release and open. GaugeLink_Open-Door Endress+Hauser...
-
Page 12: Electrical Installation
The Tankvision Gauge Link is double insulated, and thus does not require connection of a protective earth for safety reasons. An earth terminal is included in the mains supply connector for EMC purposes. This should be connected to the earth/equipotential conductor of the supply. Endress+Hauser... - Page 13 Both the Enraf Bi-Phase Mark and SAAB Rosemount TRL/2 fieldbuses are galvanically isolated and offer over voltage protection commensurate with the original gauge manufacturers’ equipment. The Tankvision Gauge Link will be supplied as two different versions, one supporting the Enraf Protocol and the other supporting the SAAB Rosemount TRL/2 protocol. Endress+Hauser...
- Page 14 Jumper links, all the jumpers don’t need to be accessed apart from one jumper link. LK_TS on the BPM module which only needs to be fitted if the field bus baud rate is 2400. Module Jumper link TRL/2 module LK_P link Used to feed 5vdc supply to board. (default:- open) Endress+Hauser...
- Page 15 B link Gain control (bit 1) (default:- open) C link Gain control (bit 2) (default:- open) LK_SG RS485 signal ground. (default:- closed) Firmware update control (default:- open) Main Processor module Firmware update control (default:- open) JTAG Debug control (default:- open) Endress+Hauser...
-
Page 16: Controls And Indicators
Tankvision Gauge Link. It does not give any indication as to the meaning of the data contained within the response. This yellow LED does not flash when an engineering software tool is connected to the Tankvision Gauge Link, such as Ensite. Endress+Hauser... -
Page 17: Operation
A checksum is also created when the Tankvision Gauge Link is powered up, this number can be used to confirm the validity of the firmware. The mode is the terminal emulation mode on the RS232 port. Endress+Hauser... - Page 18 This command sets the host RS485 field bus baud rate. There are a range of different baud rates which this command supports, see below the baud rates with the command to set the baud rate. Baud rate Command 1200 HTS=1200(return) 2400 HTS=2400(return) 4800 HTS=4800(return) 9600 HTS=9600(return) Endress+Hauser...
- Page 19 Where X is represents Y (yes) or N (no). This command allows the user to enable the 120R terminator resistor between the A and B lines. To enable the terminator resistor type: RS485T=Y(return) To disable the terminator resistor type: RS485T=N(return) Endress+Hauser...
- Page 20 Element temps address = 1 300=1(return) Water address = 1 1100=82(return) Gauge type is a radar (82) 1=15(return) Level address = 15 101=15(return) Temp address = 15 201=15(return) Temp elements address = 15 1101=83(return) Gauge type is a servo (83) (return) Endress+Hauser...
- Page 21 The diagram below shows in more detail what each column and row represents. The below is configures to poll for 3 gauges. gauge Gauge address 01, Modbus address 01. Radar (82) Level (Reg 0000) Temperature (Reg 0100) Temp elements (Reg 0200) Live water (Reg 0300) Endress+Hauser...
- Page 22 This command blanks all the parameters for a gauge and defaults all the parameters back to 255. This parameter is used if you require to remove a gauge from the system. All gauges above this gauge will be automatically shuffled down and fill the space which was originally blanked. Endress+Hauser...
- Page 23 • Add a device to the comms • Add a field connector – Choose smartlink and give it a name • Select the SmartLink and change its comms parameters – GPU: 1200, 7, O, 1 – Flexconn: 1200, 8, N, 1 • Add a Tank Endress+Hauser...
- Page 24 1100 block of holding registers, if the type of gauge isn’t configured, the Tankvision Gauge Link will treat the gauge as a basic Honeywell Enraf 811 gauge. No type of gauge is required to be configured if connection to Emerson SAAB gauges. Endress+Hauser...
- Page 25 This allows data from different addresses to be mapped to the group of input registers, where the address of the input registers is derived from the level address of the device. Endress+Hauser...
- Page 26 Tankvision Gauge Link. The Tankvision Gauge Link will not scale the above parameters which come back on the TRL/ 2 protocol, this must be done in the gauge and this is the usual practice when working with Emerson equipment. Endress+Hauser...
- Page 27 Gauge type 873. • Gauge address = 20, needs level and temp. Gauge type is an Enraf emulation coming from a none Enraf gauge. Ensure the Tankvision Gauge Link is the Enraf version. Enter Result FTS=1200(return) Enable HTS=9600(return) Enable HPA=N(return) Enable Endress+Hauser...
- Page 28 • Gauge address = 8, needs level. Temp and its elements is from a DAU with address 108. • Gauge address = 21, needs level and temp. Gauge type is an TRL emulation coming from a none Emerson gauge. Ensure the Tankvision Gauge Link is the TRL/2 version. Enter Result HTS=1920(return) HPA=N(return) CONFIG(return) Enable configuration Endress+Hauser...
- Page 29 Level address = 2 (modbus address = 2) 101=2(return) Temp address = 2 1101=78(return) Gauge type is a NRF590 (78) 2=3(return) Level address = 3 (modbus address = 3) 102=3(return) Temp address = 3 1102=78(return) Gauge type is a NRF590 (78) Endress+Hauser...
- Page 30 Level address = 4 (modbus address = 4) 1103=78(return) Gauge type is a NRF590 (78) (return) Example 5 A system requires to be connected to 4 of 873 gauges and 2 off 854 gauges with address 01 – 06. Endress+Hauser...
- Page 31 A system requires to be connected to 2 of 873 gauges and 2 off 854 gauges with address 01 – 04. Level only is requires. Host baud rate is 9600, with a parity of none. BPM baud rate is 1200. Enter Result FTS=1200(return) HTS=9600(return) HPA=N(return) Endress+Hauser...
- Page 32 Level address = 3 (modbus address = 3) 102=3(return) Temp address = 3 3=4(return) Level address = 4 (modbus address = 4) 103=4(return) Temp address = 4 4=5(return) Level address = 5 (modbus address = 5) 104=5(return) Temp address = 5 (return) Endress+Hauser...
-
Page 33: Operation
BPM and TRL/2 field bus wouldn’t allow for this. The Tankvision Gauge Link supports a range of different units, which are detailed in the Tankvision Gauge Link Modbus Map. The Tankvision Gauge Link reads the units on power Endress+Hauser... -
Page 34: Engineering Mode
Tankvision Gauge Link then stops polling for live data. The COMMUNICATIONS understood LED will not flash when the engineering tool is passing data through the Tankvision Gauge Link. This can be useful to determine which device is polling for data. Endress+Hauser... -
Page 35: Troubleshooting
Host port RECEIVE ( ) LED does No requests from host Investigate and rectify. not flicker / no activity Wiring fault between host and Investigate and rectify. Tankvision Gauge Link Endress+Hauser... - Page 36 Tankvision Gauge Link. This will assist in tracing subsequent communications problems if they relate to incorrect configuration, or poor communications/intermittent comms failures resulting from field conditions (bus loading, noise/interference, etc.). Endress+Hauser...
-
Page 37: Maintenance
If it is desired to perform high voltage insulation testing on the electrical installation/cabling then it is recommended that the mains supply connector is unplugged at the Tankvision Gauge Link and placed away from the enclosure. Endress+Hauser... -
Page 38: Index
