Installation Instructions
DISCONNECT THE BATTERY BEFORE
CONTINUING. FAILURE TO DO SO WILL
DISABLE MANY FEATURES.
1

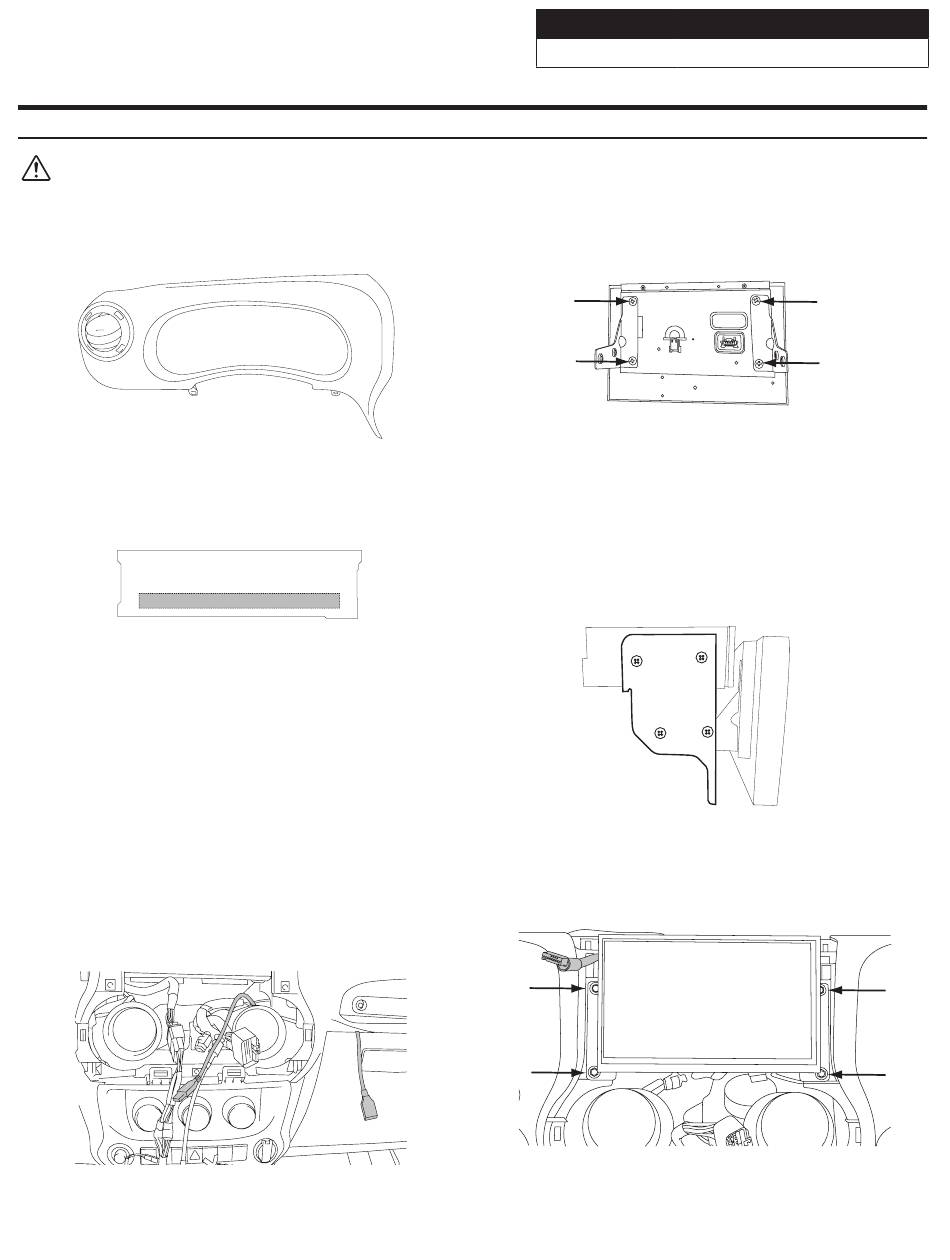

Attach the modified panel using the factory screws.
3
Apply Insulating pad by removing the paper
backing. See diagram below.
5
Route the USB extension cables to the glove box
or center console area. The black USB is for data
and the gray USB is for charging only. The black
USB is used for CarPlay and Android Auto. Connect
the main harness and other adapters to the factory
harness and secure them.
i509-WRA-JK
2
Put monitor face down on a soft, scratch free
surface and attach Display Monitor Brackets using
(4) 8mm screws (provided). Plug in the Display
Cable and Display Power Harness.
4
Attach the display and source unit with the 8mm
screws (supplied) as shown below.
Route the display cable and power harness
from the display to the source unit and
plug into the W. Remote and Display Out.
6
Route the key harness through the top-left side of
the i509 source unit. Mount the i509 source unit
using (4) 7mm factory screws.
