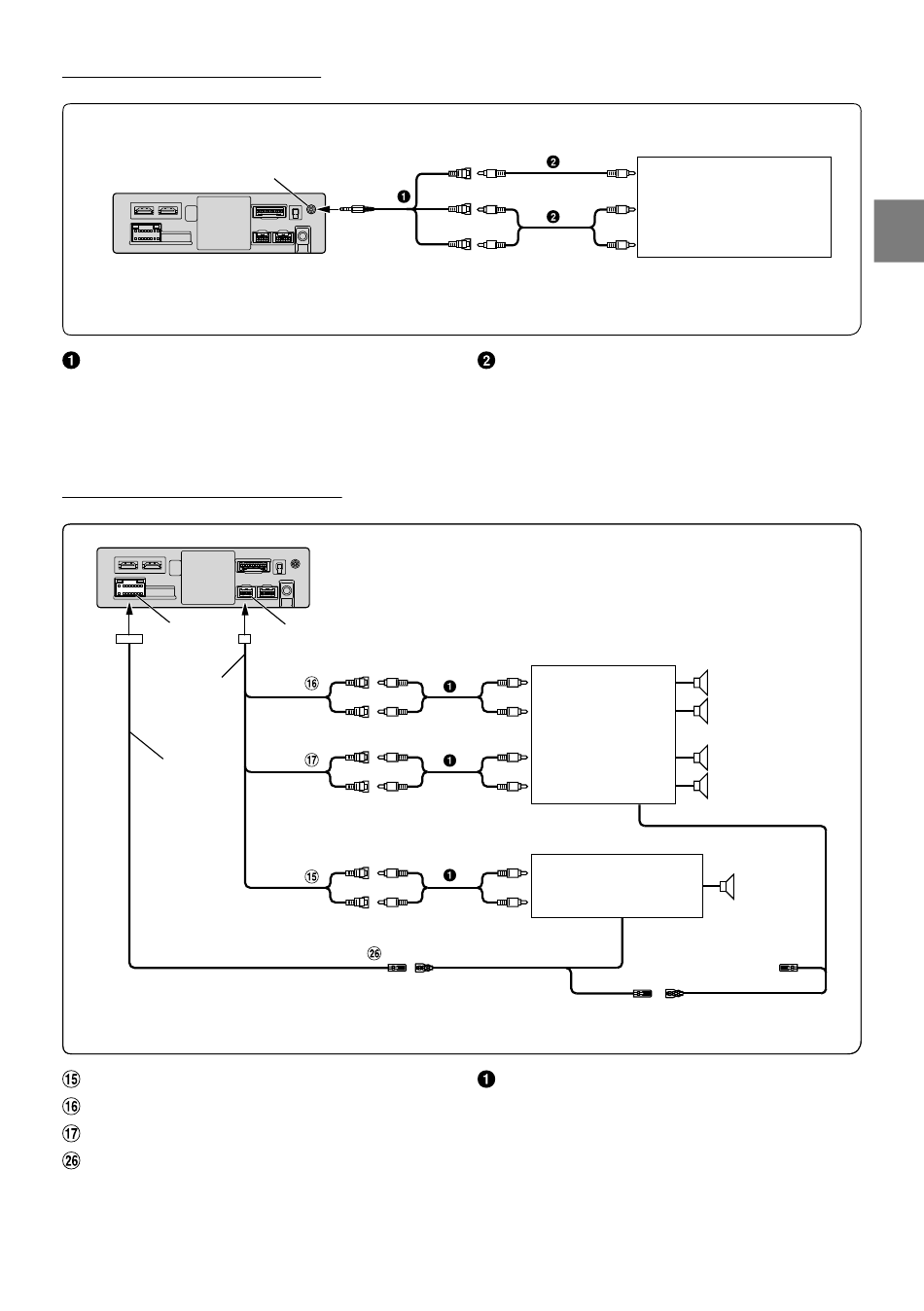

Connection of an External Device
AUX Input Connector
AV/RCA Interface Cable (4-pole mini AV plug to
3-RCA) (sold separately)
• You can change the name of an external device. For details, refer to "Setting the Auxiliary (AUX) Name" in the OWNER'S
MANUAL.
Connection of an External Amplifier
Power Supply
Connector
PRE OUT
cable
Power cable
Subwoofer RCA Connectors
Front Output RCA Connectors
Rear Output RCA Connectors
Remote Turn-On Lead (Blue/White)
(Yellow)
(Red)
(White)
PRE OUT Connector
(Red)
FRONT OUT
(White)
(Red)
REAR OUT
(White)
SUBW
REMO
(Blue/White)
To Video Output terminal
To Audio Output terminal
RCA Extension Cable (sold separately)
To front input terminal
Amplifier 4 ch
(sold separately)
To rear input terminal
To subwoofer input terminal
Amplifier for subwoofer
(sold separately)
REMOTE ON
(Blue/White)
RCA Extension Cable (sold separately)
External Device
(sold separately)
Front speaker
Rear speaker
Subwoofer
REMOTE ON
(Blue/White)
