Alpine i509-WRA-JK Installation Manual page 15

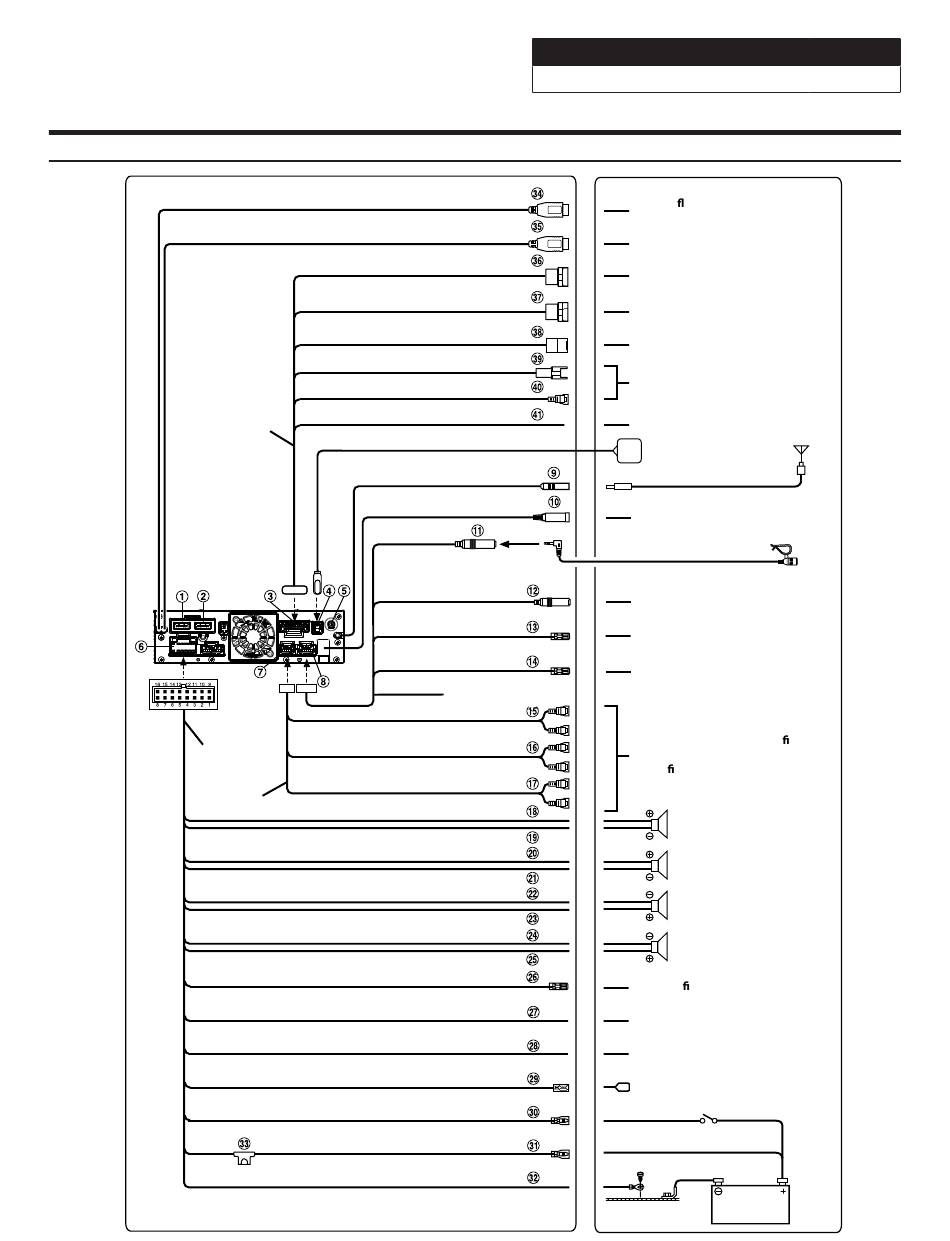

i509-WRA-JK Wiring Diagram
CAMERA cable
Power cable
PRE OUT cable
USB cable 2.4A (Black)
USB cable 1.5A (Gray)
REAR CAMERA
FRONT CAMERA
IDATALINK I/F
LIN
DRIVE RECORDER IN
SPEED SENSOR
(Green/White)
MIC IN
STEERING REMOTE
HDMI-REMO-OUT
(Brown)
AUX-REMO-OUT
(Gray)
REMOTE cable
SUBW
FRONT OUT
REAR OUT
(Green)
(Green/Black)
(White)
(White/Black)
(Gray/Black)
(Gray)
(Violet/Black)
(Violet)
REMO
(Blue/White)
REVERSE
(Violet/White)
PARKING BRAKE
(Yellow/Blue)
P. ANT
(Blue)
ACC
(Red)
BATT
(Yellow)
GND
(Black)
i509-WRA-JK 20220404v1
To USB ash drive, iPhone or
Android smartphone.
To iPhone or Android smartphone
(For charging only).
To Rear camera
To Front or Side camera
To iDataLink module
To Dash Cam
To the vehicle speed pulse line
GPS Antenna (Included)
Antenna
To SiriusXM Tuner
Microphone (included)
To steering remote control
interface
To HDMI Selector Interface
To AUX device (TV Tuner, etc.)
To input terminal of ampli er
when adding an external
ampli er
Rear Left
Front Left
Front Right
Rear Right
To ampli er or equalizer
To plus side of the back lamp signal
lead of the car
To the parking brake signal lead
To power antenna
Ignition key
Jeep Wrangler
˜ 15/22
Speakers
Battery
