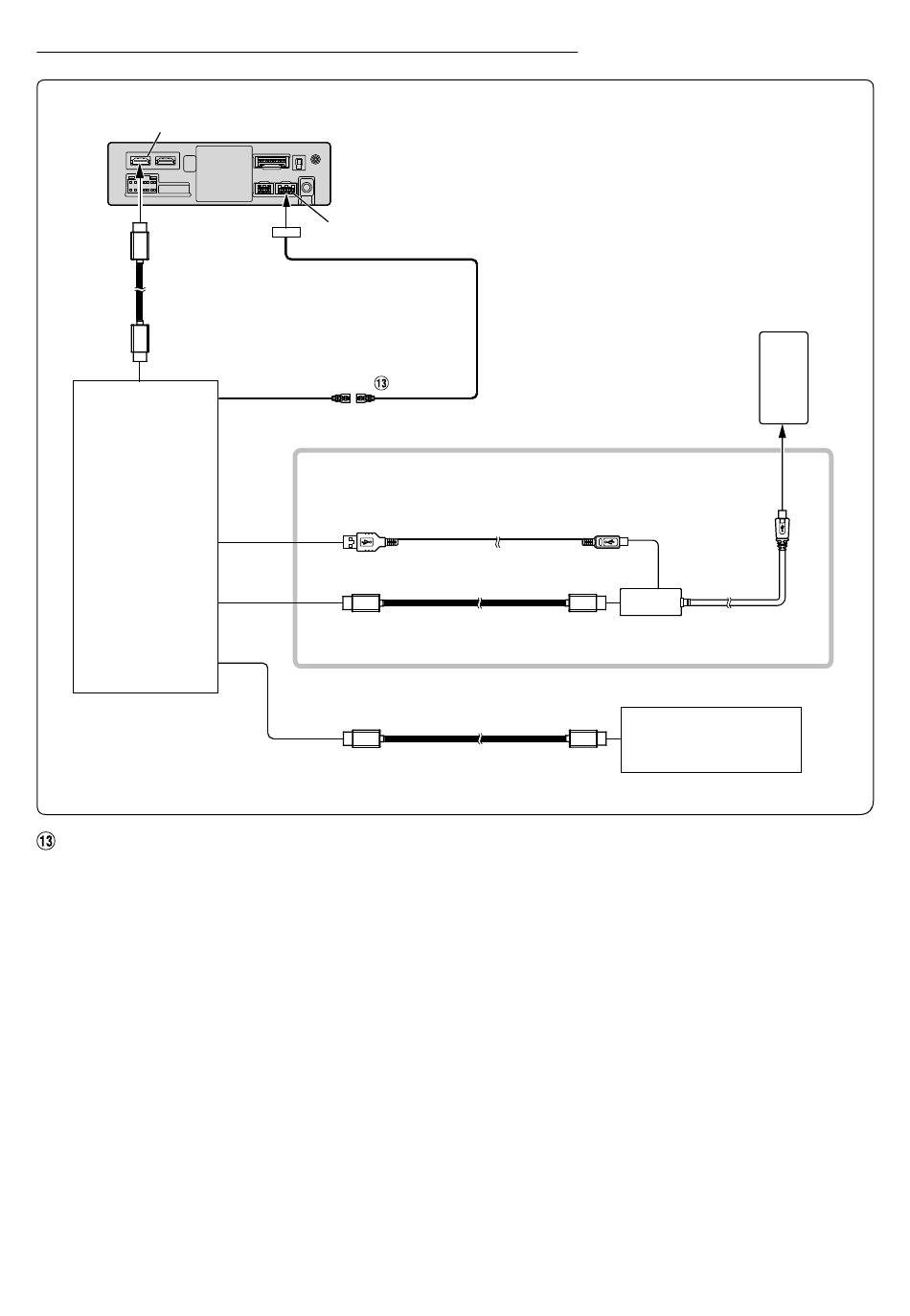

Connection of an HDMI Device (using HDMI SELECTOR INTERFACE)
HDMI input connector
HDMI connection
cable
HDMI OUT
HDMI SELECTOR
INTERFACE
KCX-630HD
(sold separately)
USB POWER
HDMI IN 2
HDMI IN 1
HDMI-REM-OUT Lead (Brown)
• A connection kit or adapter kit suitable for the type of terminal on the connecting device is required.
88
-EN
REM Connector
REMOCON IN
(Brown/White)
HDMI-REMO-OUT
(Brown)
■
MHL connection kit KCU-610MH
(sold separately)
Micro USB conversion cable
HDMI connection cable
(supplied with KCX-630HD)
HDMI connection cable
(supplied with DVD Player)
MHL device
(sold separately)
MHL conversion
adapter
DVD Player
(sold separately)
