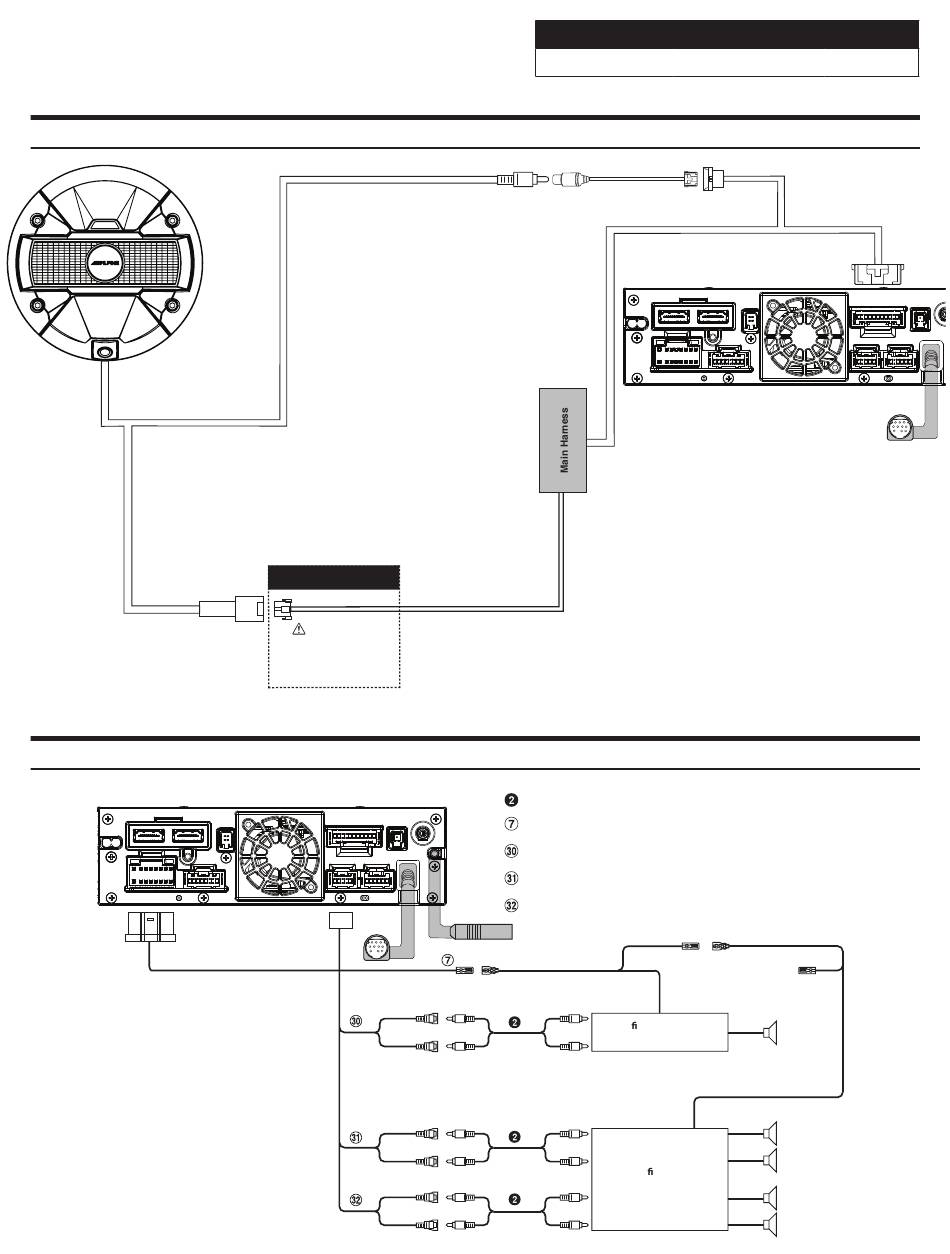

Connection Of HCE-TCAM1-WRA (Sold Separately)
To HCE-TCAM1-WRA
This connection goes to
the camera connector on
the main harness. This
handles the power, ground,
reverse light, and illumination
connections.
Connection Of An External Amplifier
i509-WRA-JK Source Unit
IN
OUT
USB
EX KEY
MAIN
To HCE-TCAM1-WRA
This connection goes to
the direct video input of
the head unit through the
adapter. If you do not make
this connection there will be
no video to your i509-WRA-JK
Rear View Camera
WARNING!
The use of this connection
is intended for Alpine
HCE-TCAM1-WRA rear
view camera ONLY.
CAMERA
DISPLAY
PREOUT
REMOTE
(Blue/White)
(Red)
SUBW
(White)
(Red)
FRONT OUT
(White)
(Red)
REAR OUT
(White)
i509-WRA-JK
Direct Camera Adapter
Rear View Camera
6-pin Black Connector
RCA Extension Cable (sold separately)
Remote Turn-On Lead (Blue/White)
GPS
Subwoofer RCA Connectors
SXM
Front Output RCA Connectors
Rear Output RCA Connectors
ANTENNA
REMOTE ON
REMOTE
(Blue/White)
To subwoofer input terminal
To front input terminal
To rear input terminal
Jeep Wrangler
20220404v1
Direct Camera Input
i509 JK Source Unit
IN
OUT
DISPLAY
USB
EX KEY
MAIN
REMOTE ON
(Blue/White)
Ampli er for subwoofer
Subwoofer
(sold separately)
Front speaker
Ampli er 4 ch
(sold separately)
Rear speaker
˜ 17/22
CAMERA
GPS
SXM
PREOUT
REMOTE
