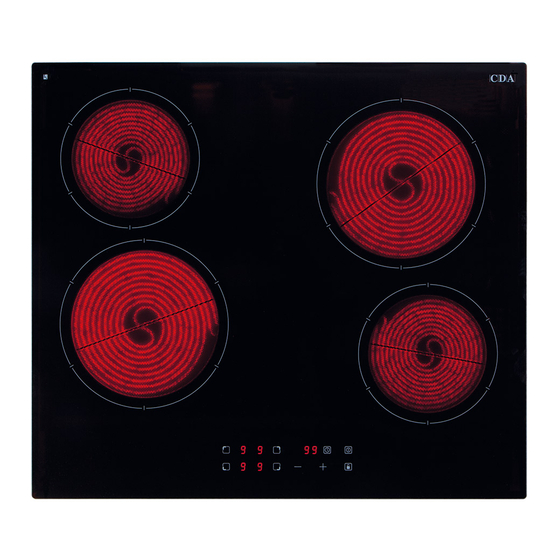

- Page 1 Built-In Ceramic Hob Manual for Installation, Use and Maintenance...
-
Page 2: Table Of Contents
Contents Contents ......................2 Important ......................3 Important Note ....................5 Using Your Hob ....................5 Using the Timer ..................... 10 Efficient Use of Your Hob ................13 Care and Maintenance ................15 Troubleshooting .................... 16 Mains Electricity Connection ..............17 Fitting the Hob .................... -
Page 3: Important
Appliance Information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model... - Page 4 At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences for the environment and health. It also enables the constituent materials to be recovered, saving both energy and resources.
-
Page 5: Important Note
• The appliance is not intended to be operated by any means of an external timer or separate remote-control system. Important Note Do not use the hob if the glass surface is cracked or damaged to prevent risk of electric shock. Disconnect it from the power supply. - Page 6 Control Panel: Heating zone selection controls Power / Timer adjusting controls Keylock control ON/OFF control Timer control Using the Touch Controls The controls respond to touch, so you don’t need to apply any pressure. Use the ball of your finger, not its tip. You will hear a beep each time a touch is registered.
- Page 7 To Switch Heating Zones On When the mains power supply is switched on, the buzzer beeps once and all the indicators light up for 1 second, then go out. This indicates that the ceramic hob has entered standby mode. Touch the ON/OFF control, all the indicators show “-“.
- Page 8 To Switch Heating Zones Off Touch the heating zone selection control that corresponds to the zone you wish to switch off (for example back right Turn the cooking zone off by using the “+” or “-“ controls to scroll down to “ 0 “. Alternatively, the zone may be switched off by touching the “+”...
- Page 9 To Unlock the Controls: Touch and hold the key lock control for approx. 2 seconds. The controls are now unlocked and the ceramic hob is now ready for use. Warning: If the hob is switched off using the “ON/OFF” control while the controls are locked, it will be necessary to unlock the hob using the process above BEFORE the hob is next switched Over-Temperature Protection...
-
Page 10: Using The Timer
Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • You can set it to turn one or more cooking zone(s) off after the set time. - Page 11 seconds and the timer indicator shows “- - “. To cancel the beep touch either the “+” or “-“ control. To cancel the timer (at any point) touch the “+” and “-“ controls together, the timer is cancelled, and ”--“ will show in the minute display.
- Page 12 When the cooking time is reached, the corresponding cooking zone will switch off automatically and the beeper will sound an individual beep. Setting the Timer to Turn More Than One Cooking Zone Off If the timer is set to turn off more than one heating zone, the timer indicator will show the lowest time (e.g.
-
Page 13: Efficient Use Of Your Hob
Efficient Use of Your Hob Before using your hob for the first time, switch the zones on for a FEW SECONDS to burn off any grease left over from the manufacturing process. The ceramic glass retains heat, so to make best use of the residual heat, switch off the zone five minutes prior to the end of cooking. - Page 14 suitable material and have the correct type of base. The base should be flat and smooth, as any rough part on the pan base could scratch the ceramic hob top. Choose pans which are between the sizes recommended in the table above, and with bases that are as non-reflective as possible, e.g.
-
Page 15: Care And Maintenance
Care and Maintenance Always disconnect the appliance from the power supply before undertaking any cleaning or maintenance. You should use a non- abrasive cleaner to clean the hob top. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. -
Page 16: Troubleshooting
Troubleshooting Below is a list of some of the possible malfunctions. If the problem cannot be resolved as described, contact Customer Services Problem Possible Causes Remedy The hob cannot No power. Ensure the hob is be turned on. connected to the power supply and that it is switched on. -
Page 17: Mains Electricity Connection
Mains Electricity Connection Mains electrical voltage: 220 – 240Vac Total rated electrical consumption: 5.5 - 6.6kW Warning: This appliance must be earthed We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. - Page 18 • This appliance is intended to be connected to the mains supply with a cable of cross section area 2.5mm . A larger cable will not fit the terminal connections. • The marking of the current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet.
-
Page 19: Fitting The Hob
Fitting the Hob Unpacking the Hob: • Take care not to lose or mishandle any parts. Fitting Position of the Hob: This appliance must be installed a minimum of 50mm from any back wall and a minimum of 190mm away from any adjacent vertical surfaces, e.g. - Page 20 shelf should be fitted to protect the user from high temperatures. • If the hob is to be installed above a working drawer, then a partition should be fitted to 490mm protect the contents and user from the heat generated during use.
-
Page 21: How To Install The Hob
How to Install the Hob Overall dimensions of the hob: Width: 590mm Depth: 520mm Worktop cut-out dimensions: Width: 560mm Depth: 490mm 1. Make the required hole in the worktop. Before doing this, you must check the instructions supplied with any cooker hood to ensure that you will have the required clearance. - Page 22 NOTES:-...
- Page 23 NOTES:-...
- Page 24 4. brackets.
