Remove the battery (see
4.
Remove the following components:
5.
Hard drive (see
a.
Optical drive (see
b.
Keyboard (see
c.
Hinge cover (see
d.
Rear cover (see
e.
Top cover (see
f.
Subwoofer (see
g.

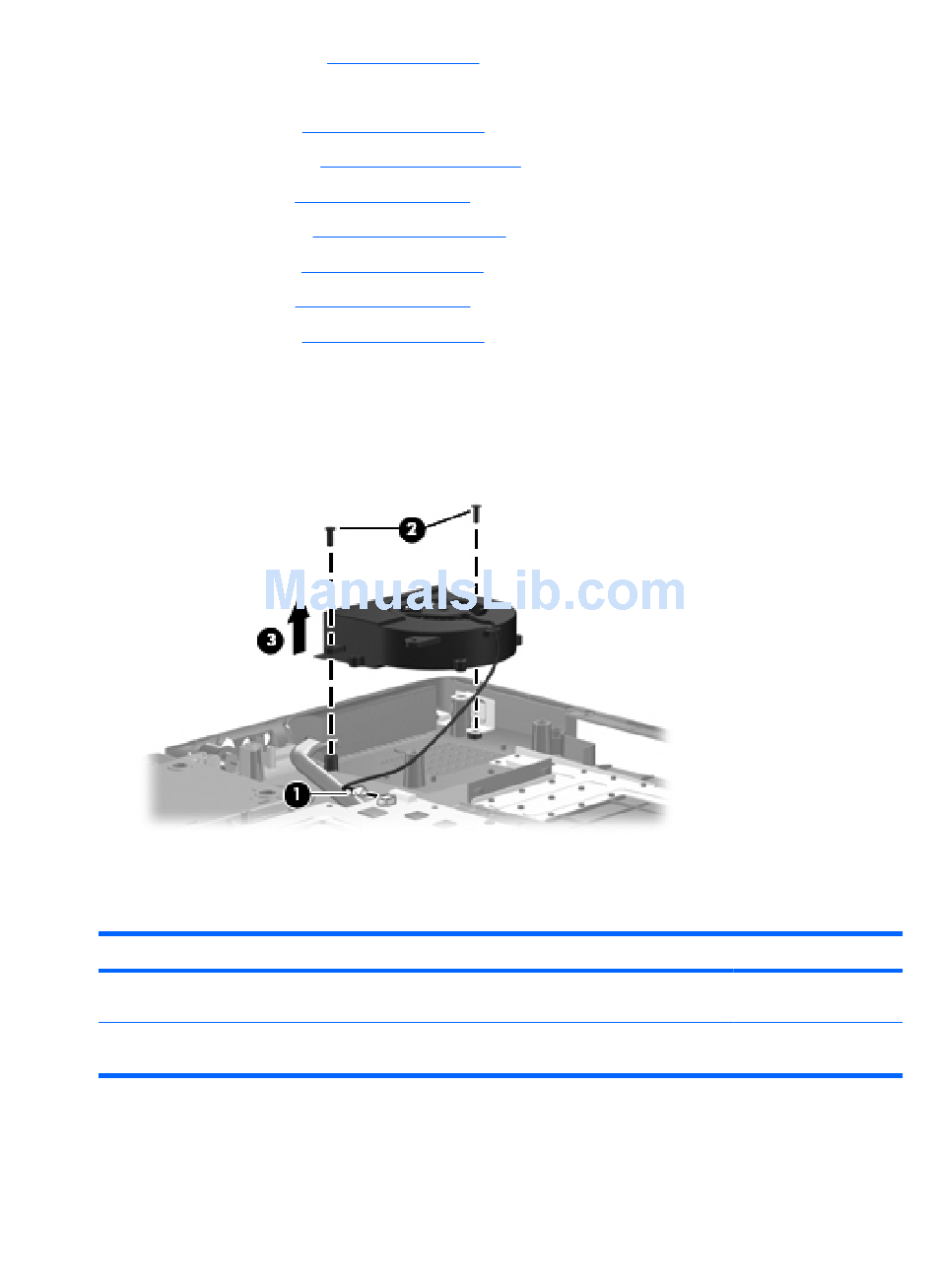

Remove the processor fan:
Disconnect the processor fan cable (1) from the system board.
1.
Remove the two Phillips PM2.5×8.0 screws (2) that secure the processor fan to the base enclosure.
2.
Remove the processor fan (3).
3.
Reverse this procedure to install the processor fan.
System board
Description
System board for use in computer models with ATI graphics (includes power connector cable,
ExpressCard assembly, and replacement thermal material)
System board for use in computer models with either ATI or nVidia graphics (includes power connector
cable, ExpressCard assembly, and replacement thermal material)
70
Chapter 4 Removal and replacement procedures
Battery on page
36).
Hard drive on page
42)
Optical drive on page
Keyboard on page
50)
Hinge cover on page
Rear cover on page
53)
Top cover on page
55)
Subwoofer on page
67)
49)
52)
Spare part number
448145-001
464591-001
