FLEXIDOME IP starlight 8000i
6.1.2

Installing the mounting plate with conduit

1.
2.
3.
4.
5.
Bosch Security Systems B.V.

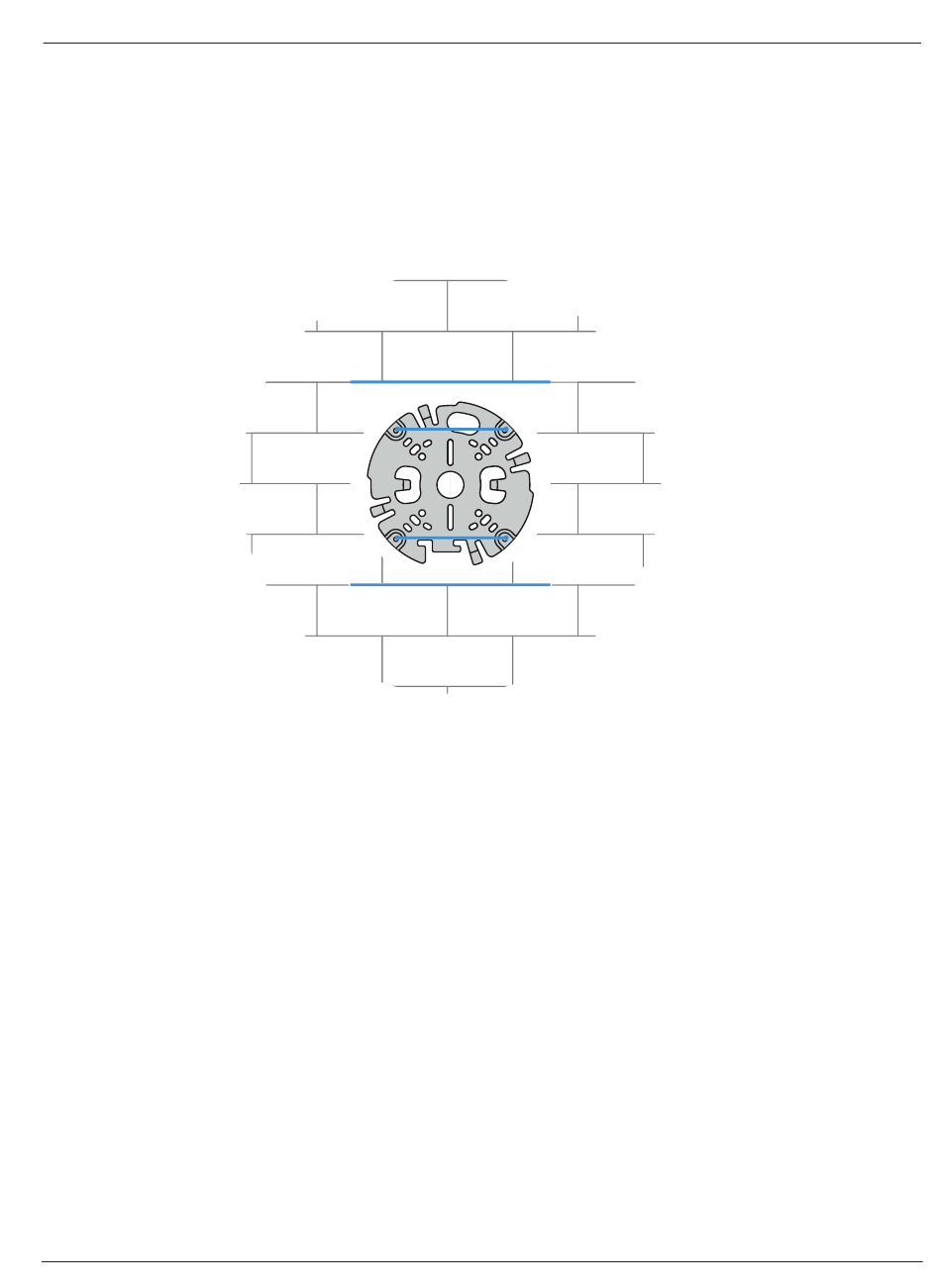

– For a camera mounted on a wall: make sure that the mounting plate is oriented in a
90º angle, with the holes parallel to the floor, to allow for the use of a weather
protector if necessary.
Remove the conduit plate from the box.
Mark the position of the hole on the surface.
Drill the hole with the appropriate diameter drill.
Install a plug in the hole.
Select the applicable conduit plate adapter and install it on the conduit plate:
– If the conduit is M25 / ¾ in., use the conduit plate adapter with the larger hole
(mounted by default).
– If the conduit is M20 / ½ in., use the conduit plate adapter with the smaller hole.
– If the conduit or cable diameter is smaller than M20, use the rubber adapter with the
conduit plate adapter with the larger hole. The rubber must be perforated to put the
conduit or cable through.
