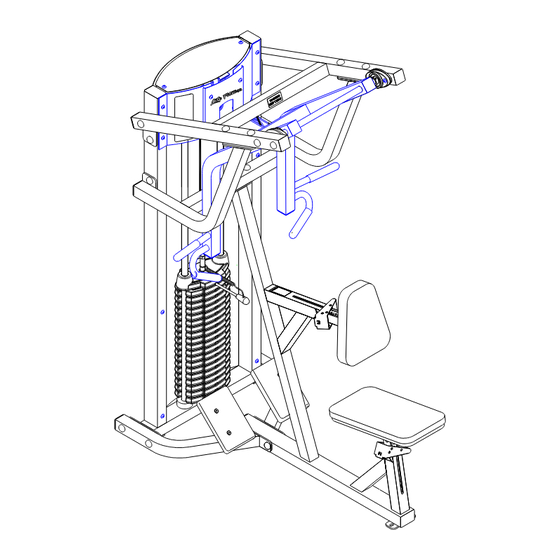

- Page 1 CLUB SERIES SEATED ROW ASSEMBLY INSTRUCTIONS Part # 7160901 Revision:8/7/01 Rev A.
- Page 2 PARTS LIST PART # DESCRIPTION PART # DESCRIPTION 70180xx TOWER 3102933 3/8 X 2” BOLT 7024201 CABLE 6957001 WEIGHT STACK LABEL 6692601 END CAP 3 X 2 3102903 3/8 X 2-1/2” BOLT 6866601 CAP, RH-20 BLK 3102922 3/8 X 2-3/4” BOLT 3102933 3/8-16 X 2 BOLT 3102906...
- Page 3 (2X) (2X) (2X) (2X) (2X)
- Page 4 3/8 X 2-3/4” 14 FIGURE 1 STEP 1: • LOOSELY assemble the RIGHT and LEFT TOWER SUPPORT (3 & 4) to the TOWER (1) using eight RH CAPS (36), four 3/8 X 2-3/4” BOLTS (14), eight 3/8” SAE WASHERS (19), eight 3/8” RH WASHERS (20) and four 3/8” LOW HEIGHT LOCK NUTS (18) as shown in FIGURE 1.
- Page 5 3 X 2” TUBE PLATE FIGURE 2-B FLUSH FLUSH FLUSH FLUSH 15 3/8 X 4” FIGURE 2 STEP 2: • LOOSELY assemble the MAIN UPRIGHT (2) between the RIGHT and LEFT TOWER SUPPORT (3 & 4) using four RH CAPS (36), two 3/8 X 4”...
- Page 6 FIGURE 3 14 3/8 X 2-3/4” 3/8 X 2-3/4” 14 STEP 3: • LOOSELY assemble the BOOM SUPPORT (5) to the TOWER (1) using eight RH CAPS (36), four 3/8 X 2-3/4” BOLTS (14), eight 3/8” SAE WASHERS (19), eight 3/8” RH WASHERS (20) and four 3/8” LOW HEIGHT LOCK NUTS (18) as shown in FIGURE 3.
- Page 7 3/8 X 5” 16 3/8 X 2-3/4” 14 FIGURE 4 STEP 4: • LOOSELY assemble the TOP BOOM (6) to the TOWER (1) using six RH CAPS (36), two 3/8 X 5” BOLTS (16), two 3/8 X 2-3/ 4” BOLTS (14), eight 3/8” SAE WASHERS (19), eight 3/8” RH WASHERS (20) and four 3/8” LOW HEIGHT LOCK NUTS (18) as shown in FIGURE 4.
- Page 8 FIGURE 5 17 3/8 X 3-1/4” BUTTON HEAD STEP 5: • Slide two PILLOW BLOCKS (21) over the shafts on the PIVOT ARM (7) as shown in FIGURE 5. • Assemble four 3/8 X 3-1/4” BUTTON HEAD CAP SCREWS (17) and four STARLOCK WASHERS (35) to the the PILLOW BLOCKS (21) as shown in FIGURE 5.
- Page 9 11 3/8 X 2” FIGURE 7 STEP 7: • SECURELY assemble the SEAT PAD (27) to the SEAT ADJUST (2F) using two BLACK RH CAPS (25), two 3/8 X 2” BOLTS (11) and two 3/8” RH WASHERS (20) as shown in FIGURE 7. 10 3/8 X 1-1/4”...
- Page 10 FIGURE 9 HEAVY WEIGHT OPTION STEP 9: • Insert the two GUIDE RODS (34) (found in SHROUD KIT box) into the base of the TOWER (1) as shown in FIGURE 9. Lubricate the GUIDE RODS (34) with a silicone or teflon spray that is available at most hardware stores. •...
- Page 11 FIGURE 10 TIGHTEN! 13 3/8 X 2-1/2” CABLE STEP 10: • SECURELY assemble the GUIDE ROD SUPPORT (8) to the TOWER (1) using four RH CAPS (36), two 3/8 X 2-1/2” BOLTS (13), four 3/8” RH WASHERS (20) and two 3/8” LOW HEIGHT LOCK NUTS (18) as shown in FIGURE 10. •...
- Page 12 FIGURE 11 S T ` ` ` ` ` ` • The WEIGHT STACK LABEL sheet (12) includes labels for both lbs. and kgs. for both the standard and optional weight stacks. • Peel the backing off the WEIGHT STACK LABELS (12), line up sheet to the right of the selector opening and apply labels to the WEIGHT PLATES (32), starting with the HEAD PLATE (9) as shown in FIGURE 11.
- Page 13 3/8 X 2” 11 CABLE CABLE DIAGRAM CABLE 19 20 11 3/8 X 2” FIGURE 12 STEP 12: • NOTE: If this machine will be assembled with the FULL FRONT SHROUD, please refer to the SHROUD ASSEMBLY instructions now. The FULL FRONT SHROUD must be assembled before the CABLE can be routed.) •...
- Page 14 FIGURE 13 STEP 13: • REFER TO SHROUD KIT ASSEMBLY INSTRUCTIONS. • Assemble the PLACARD LABEL (30) or the FOREIGN LANGUAGE PLACARD LABEL (31) to the FRONT SHROUD as shown in FIGURE 13.
- Page 15 • Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not spray lubricant directly on the Guide Rods. Thank you for purchasing the LifeFitness CLUB SERIES SEATED ROW. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at...
