Life Fitness CLUB SERIES Assembly Instructions Manual

Club series leg extension
Hide thumbs Also See for CLUB SERIES:

Advertisement

Quick Links

Download this manual See also: Operating Manual, User Manual

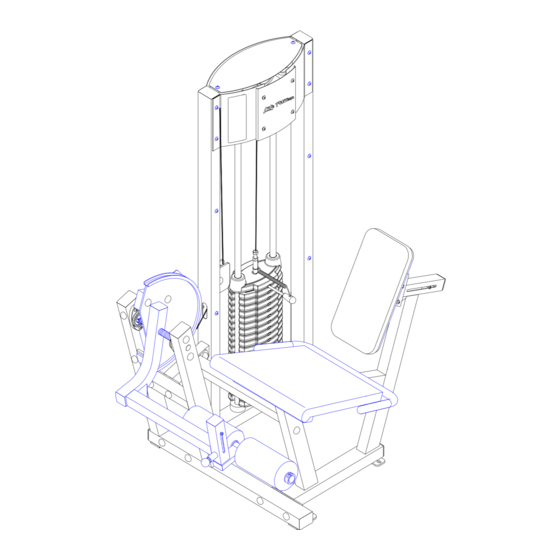

CLUB SERIES LEG EXTENSION

ASSEMBLY INSTRUCTIONS

Part # 7154801
1
Revision: 09/11/01
Rev B.

Advertisement

loading

Related Manuals for Life Fitness CLUB SERIES

Summary of Contents for Life Fitness CLUB SERIES

  • Page 1: Assembly Instructions

    CLUB SERIES LEG EXTENSION ASSEMBLY INSTRUCTIONS Part # 7154801 Revision: 09/11/01 Rev B.

  • Page 2: Parts List

    PARTS LIST PART # DESCRIPTION PART # DESCRIPTION 69517xx TOWER 6866701 3/8” RH WASHER 69509xx PIVOT ARM SUPPORT 3203501 PILLOW BLOCK 69502xx HANDLE 6913801 WEIGHT STACK SELECTOR PIN LEA7622001 69646xx PIVOT ARM 3108001 WEIGHT STACK CUSHION 68839xx GUIDE ROD SUPPORT 6866601 RH CAP BLACK 69529xx...
  • Page 3 12 3/8 X 1-1/4” BOLT 3/8” LOW HEIGHT LOCK 13 3/8 X 2-1/4” BOLT 3/8” SAE 14 3/8 X 2-1/2” BOLT WASHER 15 3/8 X 2-3/4” BOLT STARLOCK WASHER 16 3/8 X 3-1/2” BOLT 17 3/8 X 3-3/4” BOLT RH CAP (BLACK/WHITE/PLATINUM) 18 3/8 X 3”...
  • Page 4 6958401 CABLE 3/8 X 2-3/4” 15 3/8 X 3-3/4” 17 FIGURE 1 STEP 1: • LOOSELY assemble the top of the PIVOT ARM SUPPORT (2) to the TOWER (1) using four RH CAPS (40), two 3/8 X 2-3/4” BOLTS (15), four 3/8” SAE WASHERS (21), four 3/8” RH WASHERS (22) and two 3/8” LOW HEIGHT LOCK NUTS (19) as shown in FIGURE 1.
  • Page 5 BACK ASSY (1) 6947802 WLDMT, BACK PAD ADJUST BLK (1) 6933301 LABEL, SEAT ADJUST (1) 6897001 PLATE, ADJ 15 POS. RIBBED (1) 6897101 PLATE, ADJUSTMENT FLAT (4) 3234301 5/16-18 X 1/2 HXS FL SC ST BZ (1) 6912202 HINGE WELDMENT (2) 6896901 HINGE PIN (4) 3221701 E-RING (1) 3222101 SPRING...
  • Page 6 3/8 X 2-3/4” 15 FIGURE 3 STEP 3 • LOOSELY assemble the CROSS SUPPORT (8) to the TOWER (1) and SEAT FRAME (9) using eight RH CAPS (40), four 3/8 X 2-3/4” BOLTS (15), eight 3/8” SAE WASHERS (21), eight 3/8” RH WASHERS (22) and four 3/8” LOW HEIGHT LOCK NUTS (19) as shown in FIGURE 3.
  • Page 7 3/8 X 2-3/4” 15 FIGURE 4 STEP 4 • SECURELY assemble the 16” TUBE (10) to the SEAT FRAME (9) using four RH CAPS (40), two 3/8 X 2-3/4” BOLTS (15), four 3/8” SAE WASHERS (21), four 3/8” RH WASHERS (22) and two 3/8” LOW HEIGHT LOCK NUTS (19) as shown in FIGURE 4.
  • Page 8 SEE PAGE 17 FOR WORK ARM AND TIBIA PARTS 18 3/8 X 3” BUTTON HEAD FIGURE 5 STEP 5: • Slide one 2” ACCORDION SLEEVE (30), one 3” ACCORDIAN SLEEVE (31) and two PILLOW BLOCKS (23) over the shaft of the PIVOT ARM (4) as shown in FIGURE 5.
  • Page 9 CABLE FIGURE 7 STEP 7: • Slide the end of the CABLE into the bushing on the PIVOT ARM (4) as shown in FIGURE 7. 15 3/8 X 2-3/4” FIGURE 8 STEP 8: • SECURELY assemble the HANDLE (3) to the SEAT FRAME (9) using four RH CAPS (40), two 3/8 X 2-3/4” BOLTS (15), four 3/8”...
  • Page 10 FIGURE 9 15 3/8 X 2-3/4” STEP 9: • SECURELY assemble the SEAT PAD (39) to the SEAT FRAME (9) using three RH CAPS (40), three 3/8 X 2-3/4” BOLTS (15) and three 3/8” RH WASHERS (22) as shown in FIGURE 9. 12 3/8 X 1-1/4”...
  • Page 11 13 3/8 X 2-1/4” FIGURE 11 STEP 11: • SECURELY assemble the COUNTER BALANCE (7) to the PIVOT ARM (4) using two BLACK RH CAPS (26), two RH CAPS (40), two 3/8 X 2-1/4” BOLTS (13), four 3/8” SAE WASHERS (21), four 3/8” RH WASHERS (22) and two 3/8” LOW HEIGHT LOCK NUTS (19) as shown in FIGURE 11.
  • Page 12 FIGURE 13 HEAVY WEIGHT OPTION STEP 13: • Insert the two GUIDE RODS (35) (found in the SHROUD KIT box) into the base of the TOWER (1) as shown in FIGURE 13. Lubricate the GUIDE RODS (35) with a slicon or teflon spray that is available at most hardware stores. •...
  • Page 13 FIGURE 14 14 3/8 X 2-1/2” TIGHTEN! STEP 14: • SECURELY assemble the GUIDE ROD SUPPORT (5) to the TOWER (1) using four RH CAPS (40), two 3/8 X 2-1/2” BOLTS (14), four 3/8” RH WASHERS (22) and two 3/8” LOW HEIGHT LOCK NUTS (19) as shown in FIGURE 14. (NOTE: Be sure to route cable through the hole of the GUIDE ROD SUPPORT (5) before tightening.) •...
  • Page 14 FIGURE 15 STEP 15: • The WEIGHT STACK LABEL sheet (34) includes labels for both lbs. and kgs. for both the standard and optional weight stacks. • Peel the backing off the WEIGHT STACK LABEL (34), line up sheet to the right of the selector opening and apply labels to the WEIGHT PLATES (36 or 37), starting with the HEAD PLATE (11) as shown in FIGURE 15.
  • Page 15 FIGURE 16 STEP 16: • Assemble the PLACARD LABEL (32) or the LANGUAGE ADDENDUM PLACARD LABEL (33) to the FRONT SHROUD as shown in FIGURE 16.

  • Page 16: Warranty Information

    • Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not spray lubricant directly on the Guide Rods. Thank you for purchasing the LifeFitness CLUB SERIES LEG EXTENSION. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at...
  • Page 17 CSLE WORK ARM ITEM NO. PART NO. QTY. DESCRIPTION 6945207 WLDMT, ADJ PIVOT ARM (LE) PLATINUM 6945208 WLDMT, ADJ PIVOT ARM (LE) WHITE 6405201 CAP, END 2 SQ 10-14 GA 6412001 ASSY, SPRING PIN 3/8 DIA X2.75 3233301 5/16 DIA X 1/2 HXS, SOC, SHL 3226701 WASHER,LOCK 1/4ID SAE HEAVY BZ 6466901...
