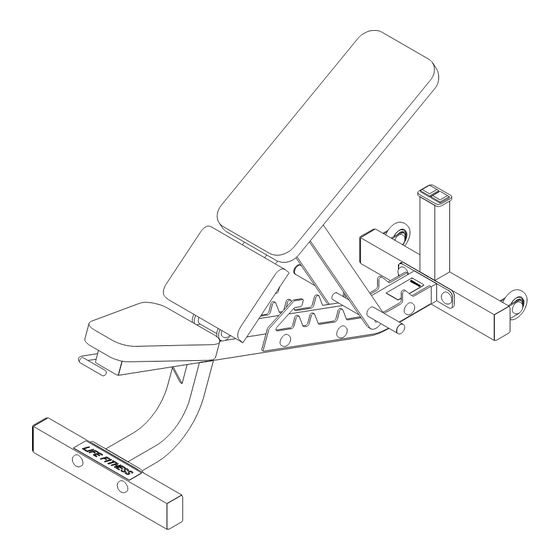

- Page 1 CLUB SERIES ADJUSTABLE BENCH End of Life ASSEMBLY INSTRUCTIONS Part # 7147801 Revision:9/18/01 Rev C.
-
Page 2: Parts List
PARTS LIST PART # DESCRIPTION PART # DESCRIPTION 71447 BENCH FRAME 3223320 3/8 X 6-1/2” BOLT 71446 BACK PAD SUPPORT 3202406 3/8 X 1-1/4” BUTTON HEAD BOLT 71443 BACK PAD ADJUST 3102807 3/8” LOW HEIGHT LOCK NUT 71444 3 X 2 X 18” TUBE 3102514 3/8”... - Page 3 10 3/8 X 1-1/2” BOLT 3/8” LOW HEIGHT LOCK 11 3/8 X 2-3/4” BOLT 12 3/8 X 3” BOLT 3/8” SAE WASHER 13 3/8 X 3-3/4” BOLT 3/8” BLACK SAE WASHER 14 3/8 X 4” BOLT 15 3/8 X 6-1/2” BOLT 16 3/8 X 1-1/4”...
- Page 4 FIGURE 1 3" x 2" End Cap LEA6692601 3" x 2" End Cap LEA6692601 11 3/8 X 2-3/4” STEP 1: • SECURELY assemble the 3 X 2 X 18” TUBE (4) and the REAR UPRIGHT (5) to the BENCH FRAME (1) using eight RH CAPS (28), four 3/8 X 2-3/4”...
- Page 5 FIGURE 3 13 3/8 X 3-3/4” STEP 3: • SECURELY assemble the BACK PAD ADJUST PLATES (6) to the BENCH FRAME (1) using six BLACK RH CAPS (26), three 3/ 8 X 3-3/4” BOLTS (13), six 3/8” RH WASHERS (24) and three 3/8” LOW HEIGHT LOCK NUTS (17) as shown in FIGURE 3. 23 CHROME FIGURE 4 3/8 X 6-1/2”...
- Page 6 FIGURE 5 3/8 X 3” 12 STEP 5: • SECURELY assemble the SEAT PAD (7) to the BENCH FRAME (1) using two RH CAPS (28), two 3/8 X 3” BOLTS (12) and two 3/8” RH WASHERS (24) as shown in FIGURE 5. 3”...
-
Page 8: Warranty Information
• Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not spray lubricant directly on the Guide Rods. Thank you for purchasing the LifeFitness CLUB SERIES ADJUSTABLE BENCH. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at...
