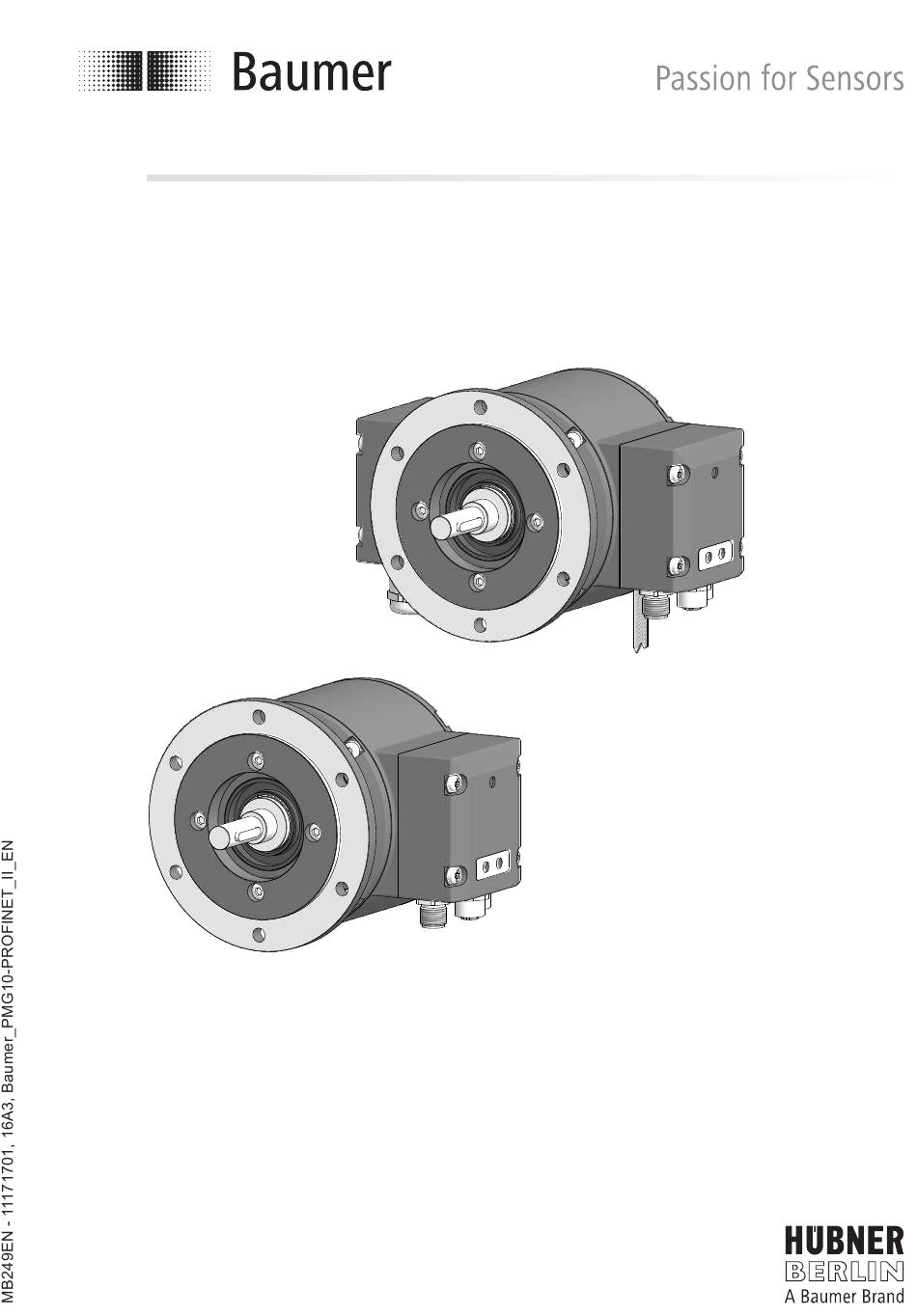

- Page 1 Installation and operating instructions PMG 10 - PROFINET Absolute encoder with magnetic sensing...
-
Page 2: Table Of Contents
4�3 Mounting the spring disk couling to drive shaft ���������������������������������������������������������������8 4�4 Maximum permissible mounting tolerance when the Baumer Hübner K 35 spring disk coupling is used ���������������������������������������������������������9 4�5 Note when using a jaw-type coupling (for example „ROTEX®“) ����������������������������������10 5. ELECTRICAL CONNECTION ����������������������������������������������������������������������������������������������11 5�1... - Page 3 TABLE OF CONTENTS 5�2 Speed switch and additional output incremental ����������������������������������������������������������13 5.2.1 Terminal signiicance ������������������������������������������������������������������������������������������13 5�2�2 Output signals incremental (additional output) ���������������������������������������������������13 5�2�3 LED function displays �����������������������������������������������������������������������������������������14 5�2�4 Speed switch - Switching characteristics �����������������������������������������������������������14 5�2�5 Cable connection ������������������������������������������������������������������������������������������������15 5�2�6 Assignment connecting terminal ������������������������������������������������������������������������16 5�2�6�1 Connecting terminal terminal box [B] Speed switch without additonal output �������������������������������������������������16 5�2�6�2 Connecting terminal terminal box [B]...
-
Page 4: Importent Notes
IMPORTENT NOTES IMPORTENT NOTES Symbol guide Warning Disregarding could result in serious injury, death or damage to property Attention Disregarding could result in damage to property or damage/malfunction of the en- coder Information Additional information and recommendations Intended use The encoder is a precision measurement device for the acquisition of speed/position in- formation for the control of drive units and the provision of electronic output signals for downstream devices�... -
Page 5: 1�4 Maintenance And Lifetime
IMPORTENT NOTES Maintenance and lifetime The encoder may be only opened as described in this instruction� Repair or maintenance work that requires opening the encoder completely must be carried out by the manufactu- rer� Alterations of the device are not permitted� The expected operating life of the device depends on the ball bearings, which are equipped with a permanent lubrication�... -
Page 6: Safety And Attention Instructions
SAFETy AND ATTENTION INSTRUCTIONS SAFETY AND ATTENTION INSTRUCTIONS Safety instructions Explosion risk Spark formation can cause a ire or an explosion. » Do not use the encoder in areas with explosive and/or highly inl ammable materi- als. They may explode and/or catch ire by possible spark formation. Risk of serious injuries due to rotating shafts Hair and clothes may become tangled in rotating shafts�... -
Page 7: 2�2 Attention Instructions For Mounting And Operation
SAFETy AND ATTENTION INSTRUCTIONS Attention instructions for mounting and operation Risk of destruction due to electrostatic charge Electronic parts contained in the encoder are sensitive to high voltages� » Do not touch plug contacts or electronic components� » Protect output terminals against external voltages� »... -
Page 8: Preparation
PREPARATION PREPARATION Scope of delivery [ B ] [ A ] Housing Radial terminal boxes* (see section EURO lange B10 [ A ] Bus connecting box PROFINET [ B ] Speed switch + additional output Solid shaft with key Bearing shield LED function indicators * Depending on version 5/21... -
Page 9: 3�2 Required Accessory For Mounting (Not Included In Scope Of Delivery)
PREPARATION Required accessory for mounting (not included in scope of delivery) Connecting cables and connectors are required for the electrical connection� Details section 5, page 11� Installation itting, customized Fixing screws for installation itting ISO 4017, M6x16 mm Spring disk coupling K 35, available as accessory, see section 4.4, page 9�... -
Page 10: Mounting
MOUNTING / MOUNTING THE SPRING DISK COULING TO THE ENCODER MOUNTING Mounting the spring disk couling to the encoder We recommend using the Baumer Hübner spring disk coupling K 35, see section 4.4, page 9, available as accessory� When other couplings are used pay attention to manufactu- rer‘s notes�... -
Page 11: 4�3 Mounting The Spring Disk Couling To Drive Shaft
MOUNTING / MOUNTING THE SPRING DISK COULING TO DRIVE SHAFT Mounting the spring disk couling to drive shaft 2�5 mm = 2-3 Nm 8/21 MB249EN - 11171701, 16A3, Baumer_PMG10-PROFINET_II_EN... -
Page 12: Baumer Hübner K 35 Spring Disk Coupling Is Used
Maximum permissible mounting tolerance when the Baumer Hübner K 35 spring disk coupling is used Encoders should be driven through the Baumer Hübner K 35 spring disk coupling (acces- sory), that can be pushed onto the shaft without axial loading�... -
Page 13: 4�5 Note When Using A Jaw-Type Coupling (For Example „Rotex®")
MOUNTING Note when using a jaw-type coupling (for example „ROTEX®“) Incorrect mounting of the jaw-type coupling can damage the encoder� Avoid blocking of both coupling halves (claws pressed together)� The encoder shaft must not subjected to direct axial shock� » Use a depth gauge to ind and observe the correct distances (L, L1), see below� L + L1 1-2 mm 10/21... -
Page 14: Electrical Connection
ELECTRICAL CONNECTION / PROFINET ELECTRICAL CONNECTION PROFINET Please ind a detailed instruction for the PROFINET interface and the device de- scription ile in the manual on the CD provided with the device. 5.1.1 Features Bus protocol PROFINET Device proile Encoder proile PNO 3.162 Features 100 MBaud Fast Ethernet IP address programmable... -
Page 15: 5�1�2 Terminal Assignment
ELECTRICAL CONNECTION / PROFINET 5.1.2 Terminal assignment Use connecting cable and connector exclusively in accordance to the PROFINET directive� 5.1.2.1 Bus connecting box PROFINET [A] Bus connecting box PROFINET [ A ] [ D ] [ E ] [ C ] 5.1.2.2 Connector M12 [C] „Voltage supply“... -
Page 16: 5�2 Speed Switch And Additional Output Incremental
ELECTRICAL CONNECTION / SPEED SWITCH AND ADDITIONAL OUTPUT INCREMENTAL Speed switch and additional output incremental Terminal signiicance 5.2.1 Voltage supply Ground Channel A+ Channel A _ (Channel A+ inverted) Channel B+ Channel B _ (Channel B+ inverted) Zero pulse (reference signal) Zero pulse inverted System OK+ / error output nE _... -
Page 17: 5�2�3 Led Function Displays
ELECTRICAL CONNECTION / SPEED SWITCH AND ADDITIONAL OUTPUT INCREMENTAL 5.2.3 LED function displays green INC1 Without function Without function INC2 Undervoltage (additional output Overload incremental) Over-temperature Status Internal error Speed Speed higher switching speed Speed lower switching speed (overspeed) 5.2.4 Speed switch - Switching characteristics Event State of the speed switch output... -
Page 18: 5�2�5 Cable Connection
ELECTRICAL CONNECTION / SPEED SWITCH AND ADDITIONAL OUTPUT INCREMENTAL 5.2.5 Cable connection To ensure the speciied protection of the device the correct cable diameter must be used� Connecting cables are not in scope of delivery� Mt = 2-3 Nm TX 20 Terminal box cover Torx and slotted screw, M4x32 mm... -
Page 19: 5�2�6 Assignment Connecting Terminal
ELECTRICAL CONNECTION / SPEED SWITCH AND ADDITIONAL OUTPUT INCREMENTAL 5.2.6 Assignment connecting terminal Do not connect voltage supply to outputs! Danger of damage! Please, beware of possible voltage drop in long cable leads (inputs and out- puts)! 5.2.6.1 Connecting terminal terminal box [B] Speed switch without additonal output SP+* SP-*... -
Page 20: Dimension
DIMENSION DIMENSION Speed switch PROFINET [ A ] Additional output [ B ] [ C ] [ D ] [ E ] Positive rotating direction All dimensions in millimeters, unless otherwise stated� 17/21 MB249EN - 11171701, 16A3, Baumer_PMG10-PROFINET_II_EN... -
Page 21: Dismounting
DISMOUNTING DISMOUNTING 2�5 mm 10 mm 18/21 MB249EN - 11171701, 16A3, Baumer_PMG10-PROFINET_II_EN... -
Page 22: Technical Data
TECHNICAL DATA TECHNICAL DATA Technical data - electrical ratings Voltage supply 10���30 VDC Short-circuit proof Consumption w/o load ≤200 mA Initializing time ≤500 ms after power on Interface PROFINET Function Multiturn Transmission rate 100 MBaud Device adress Automatic address designation Steps per turn 8192 / 13 bit Number of turns... -
Page 23: 8�3 Technical Data - Mechanical Design
